Illustra Pro PTZ Outdoor Housing
7
Figure 8

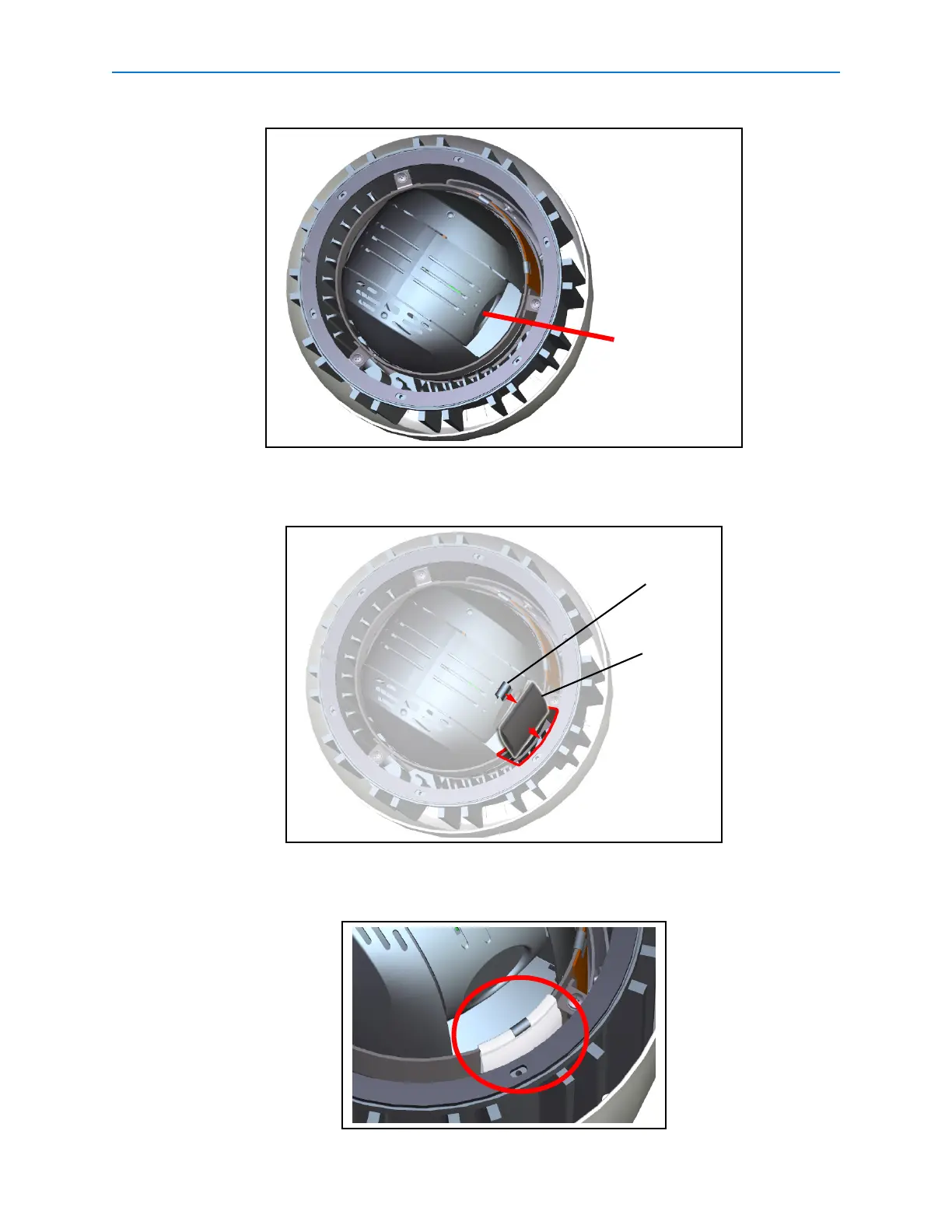

b Insert the desiccant bag in the space between the camera mounting bracket and the
inside surface of the housing as seen in
Figure 9.
Figure 9
c Fold the top edge of the desiccant bag over the camera mounting bracket and secure
with the clip as seen in
Figure 10.
Figure 10
Avoid touching the
lens during position-
ing and installation
of the desiccant bag
Clip
Desiccant
Bag
