Removing the “FULL GLASS” panoramic door
WARNING
Make sure that:
• The oven is cool and power to the oven has been turned off
before removing the door. Failure to do so could result in
electrical shock or burns.
• The oven door is heavy and fragile. Use both hands to remove
the oven door. The door front is glass. Handle care-fully to
avoid breakage.
• Grasp only the sides of the oven door. Do not grasp the
handle as it may swing in your hand and cause damage or
injury.
• Failure to grasp the oven door firmly and properly could
result in personal injury or product damage.

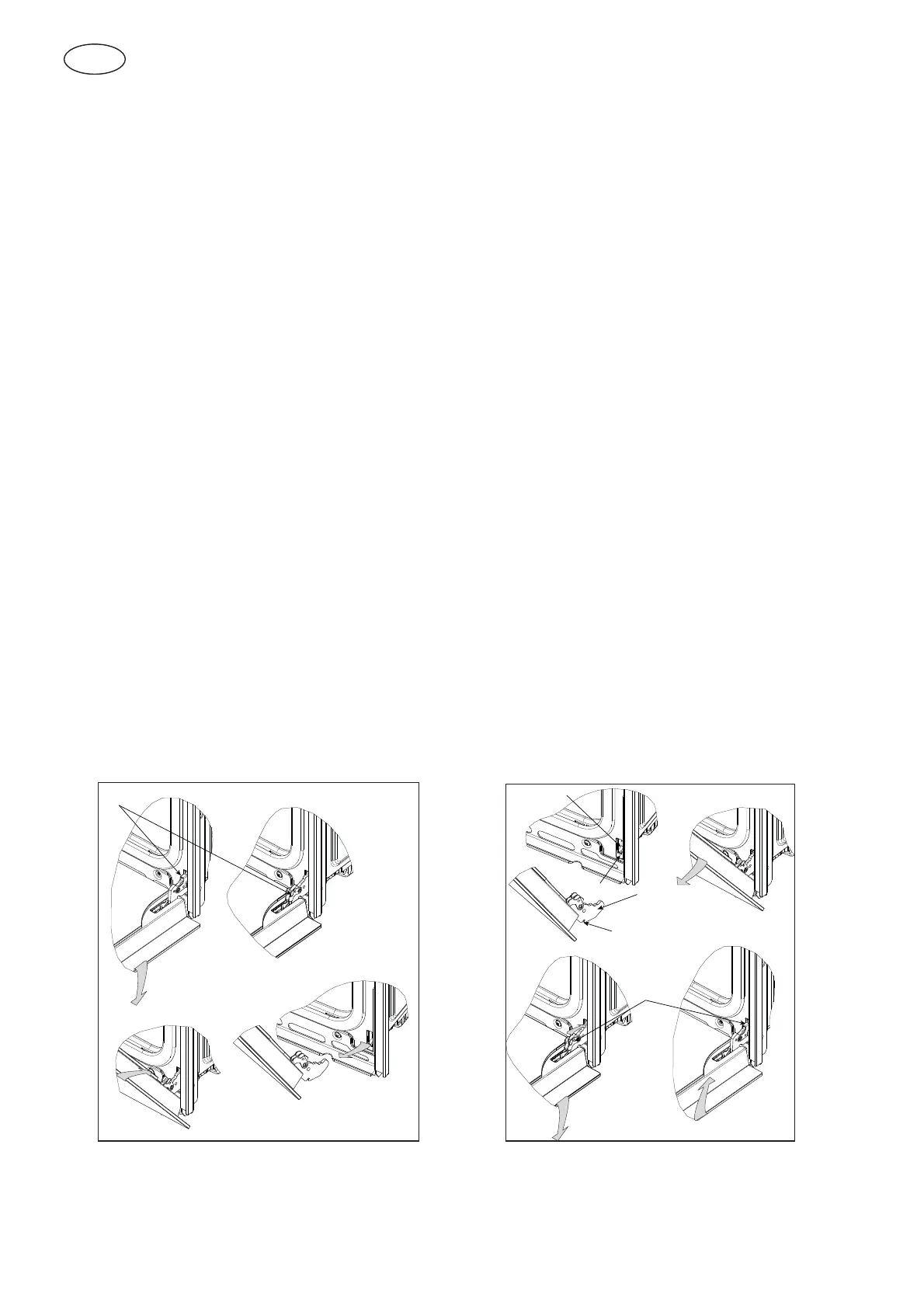

To remove the oven door (see Fig. 11A):
1 Open the door completely.
2 Lift the hinge bracket (1).
3 Hold the door firmly on both sides using both hands and close the door.
4 Hold the door firmly when pulling it out because it is heavy.
5 Place the door in a convenient location.
To replace the oven door (see Fig. 11B):
1 Insert the arms (2) of both hinges in the slots (3). The corners (4) must engage the
edges (5).
2 Move the hinge brackets (1) back down into position.
3 Close and open the door slowly to assure that it is correctly and securely in place.
1
Fig. 11A
1
2
3
5
4
Fig. 11B
