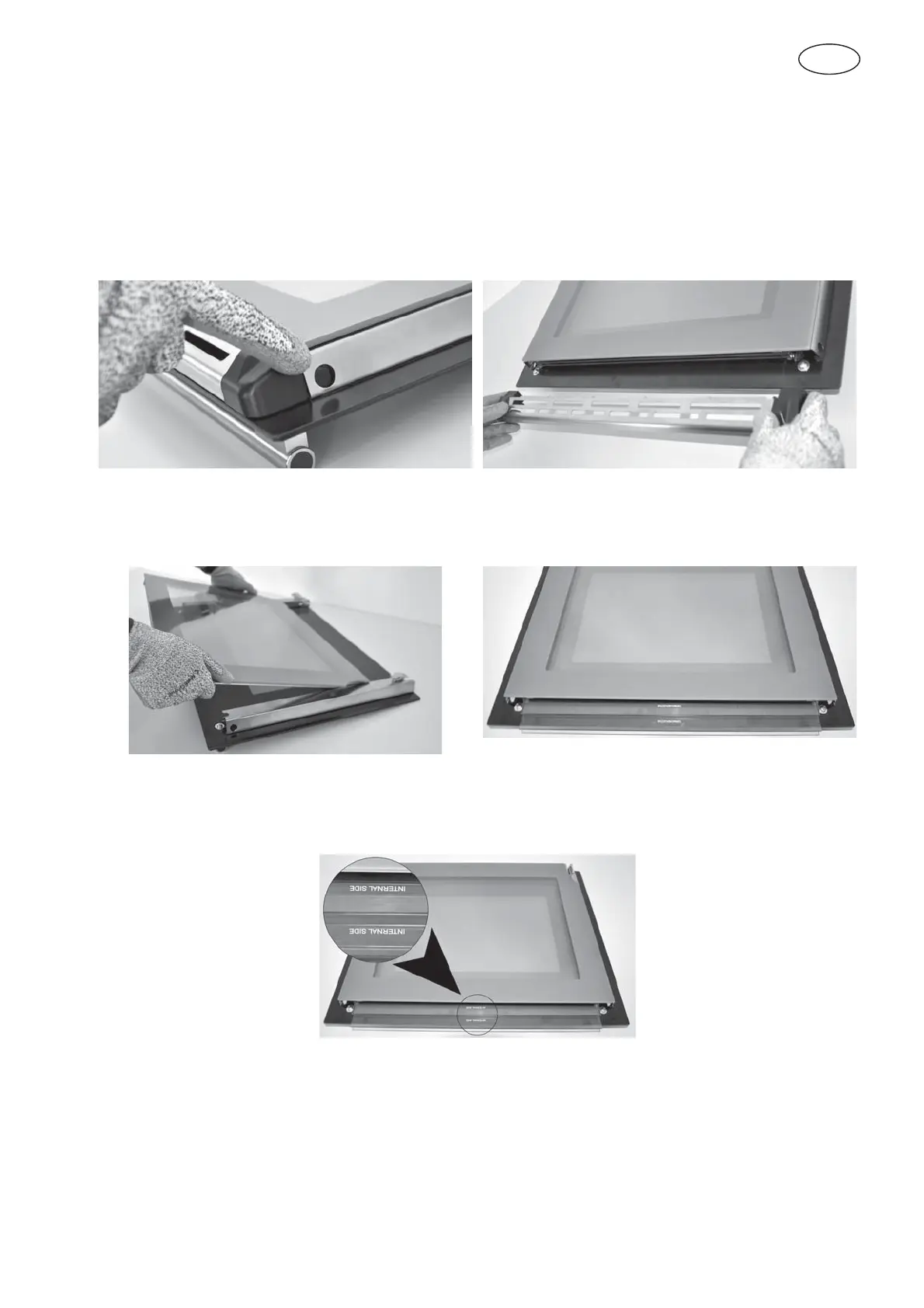

How to remove the inner glass of the “FULL GLASS”
panoramic door
1. Wear protective gloves.
2. Place the door on a flat horizontal surface face down on a soft cloth to avoid
scratching the visible part.
3. Simultaneously press the keys of the two side covers, removing the upper strip.
4. Slide out the pack of 3 panes of internal glass as shown below. Remove the second
and third panes of glass (middle panes) for cleaning.
5. Replace the middle panes after cleaning in reverse order, checking that they are
oriented so the words INTERNAL SIDE are properly legible.
NOTE: a slight gap between the middle panes and the side supports is normal
because it allows for the heat expansion of the glass.
6. Place the pack of three glass panes between the two uprights and replace the top
strip.
