13
QUALIFIED INSTALLER
Replacing the injectors and air adjustment
IMPORTANT: Before carrying out these operations you must disconnect applian-
ce of electric power supply. After adjustments, the seals must be replaced by the
technician. The air adjustment our burners is not necessary.
The burners can be adapted to different types of gas by mounting injectors suited
to the user’s gas (see nozzle adjustment table). To do this you need:
1. Extract the pan stands, remove the head an cover of burners

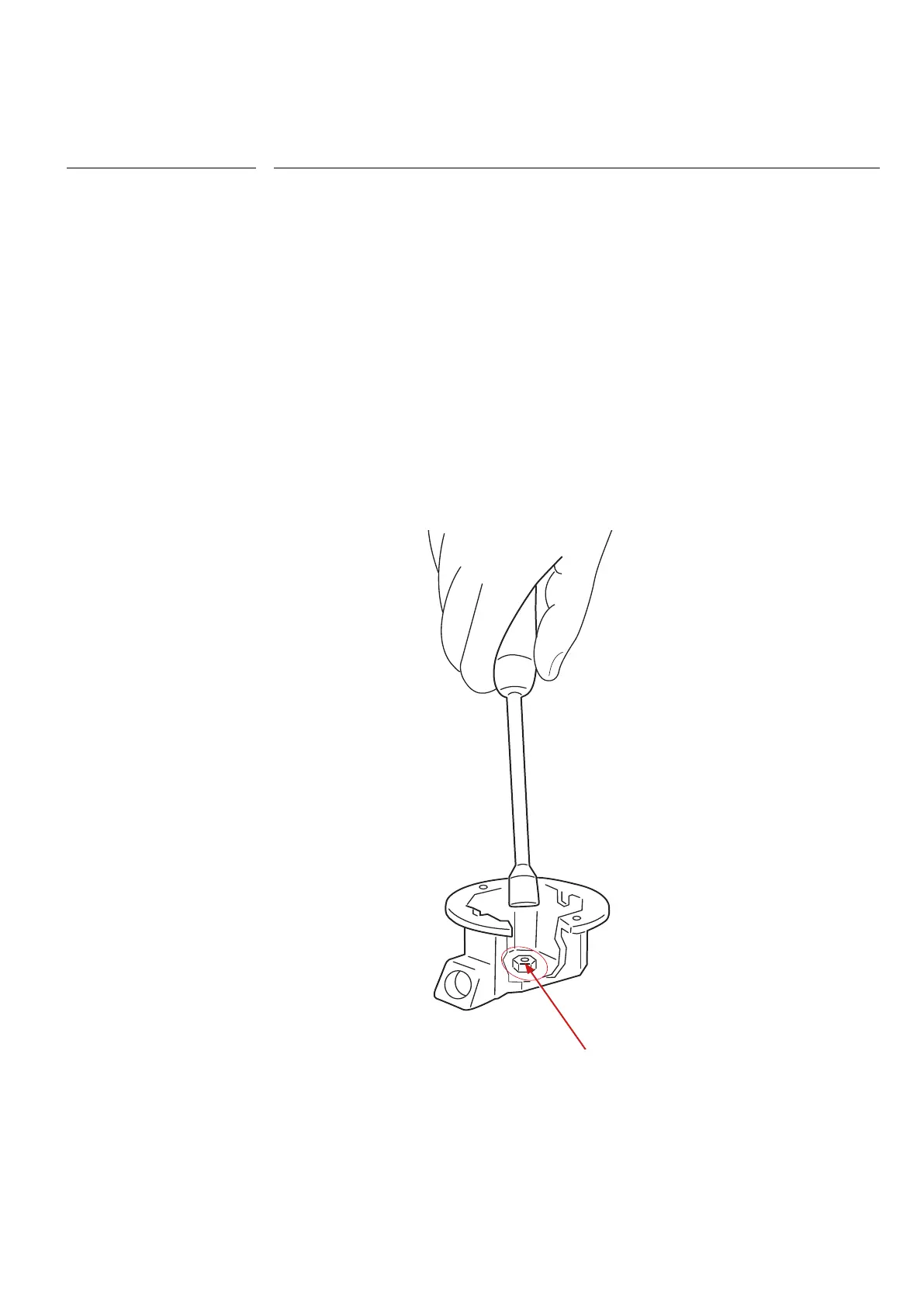

2. With a 7 mm socket spanner unscrew and remove the nozzles from burners
(see g. below)
3. Replace the burner injectors according to the gas to be used (see nozzle
adjustment table)
4. Place the burners in the correct position
ADJUSTMENTS
Adapting for different
types of gas
