When installing the cooker you must check that the minimum gas ow of the bur-
ners on the hob and in the oven is correctly regulated.
If the type of gas is changed the minimum ow must also be adjusted.
The regulating procedure is as follows.
Burners on the hob:
1. Light one burner at a time and turn the ame up to maximum.

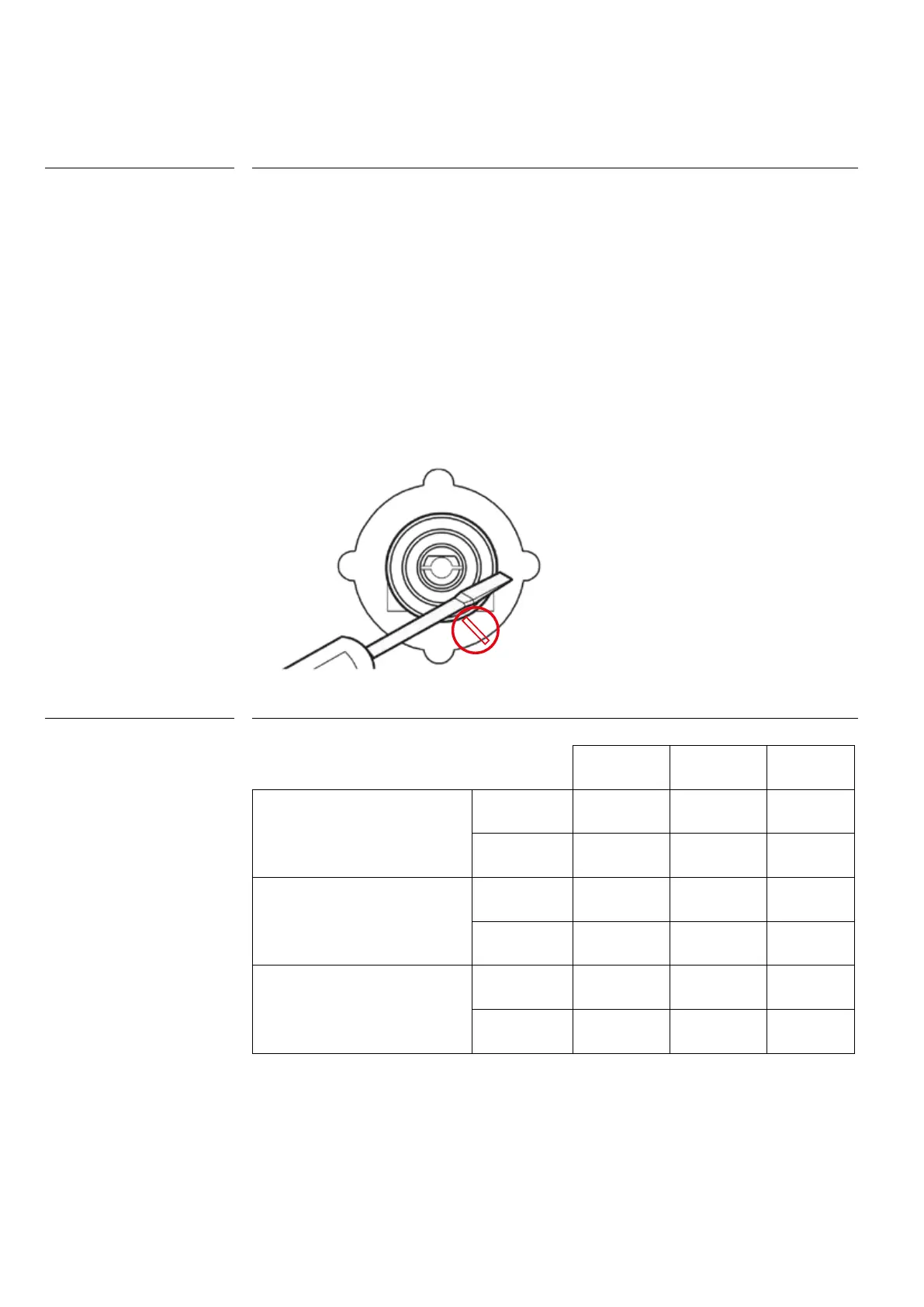

2. Remove the knob of the corresponding gas tap and insert a screwdriver in the
end part of the tap or in the screw (g. below).
3. Turn the tap to minimum position.
4. Unscrew, turning to the left, to increase the ame, or screw to the right to decre-
ase it.
5. Refer to the table below for adjustment settings.
* Bypass screw adjustment is speci ed as number of turns anticlockwise from fully
closed position.
ADJUSTMENTS
Adjusting the minimum
gas ow
Nozzle adjustment table
SR R Wok
nominal gas consumption
Mj/h
natural gas 6,8 12,00 16,00
ulpg 6,3 10,70 15,00
natural gas 1,18 1,55 1,80
ulpg 0,69 0,90 1,08
natural gas 1/2 1/2 1-1/8
ulpg fully closed fully closed 1/8
