High Speed Handpiece

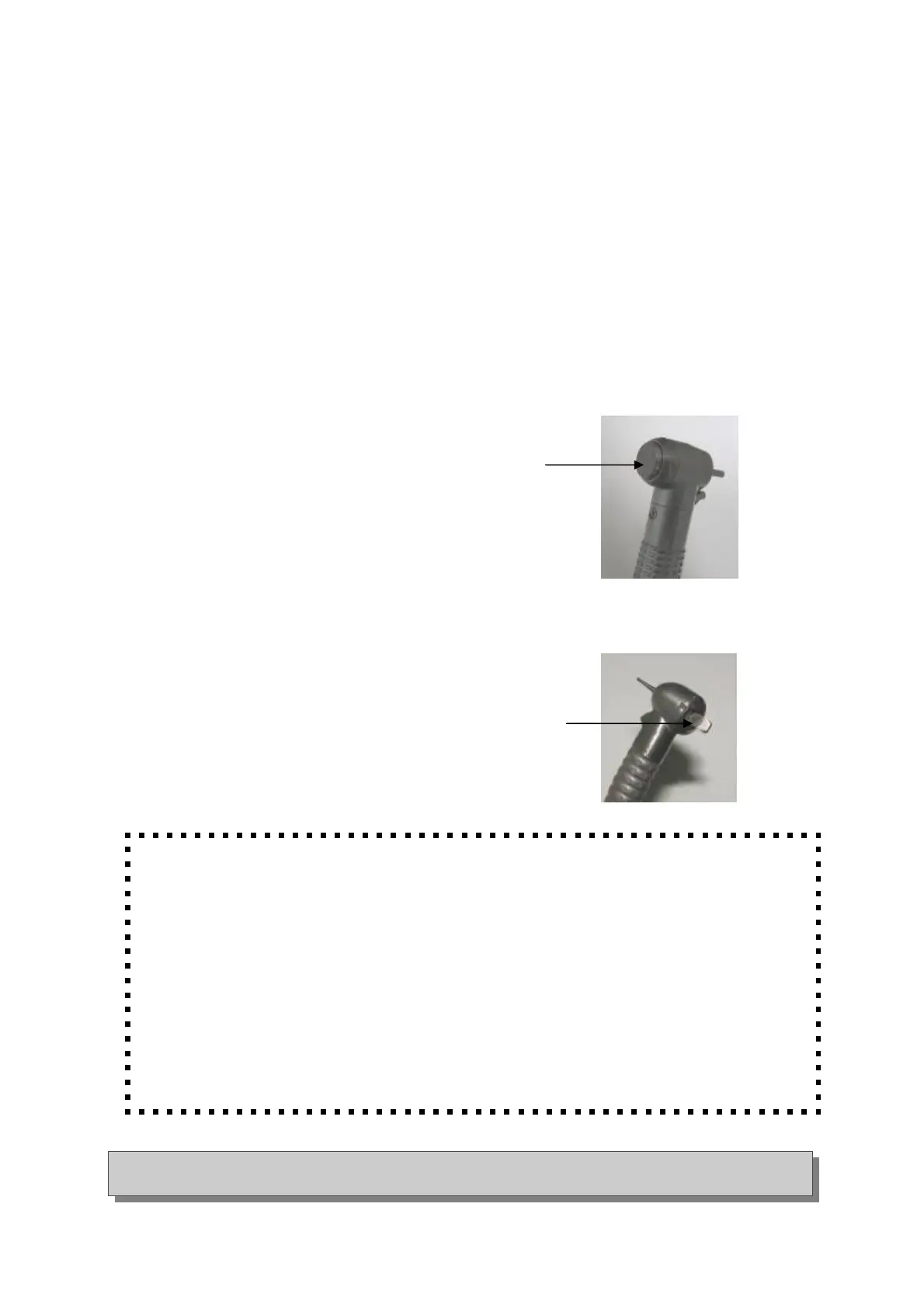

Push Button and Flip Top Mid West Handpieces.
The High Speed Handpiece is designed to operate at pressures between 30-35 psi at the
handpiece and at speeds of up to 350,000 rpm. A very light touch is necessary as
handpieces operates with very low torque and high speed. Pressure on the handpiece of
30gms (1ounce) or more, will cause the bur to stall.
Note: All handpieces should be lubricated prior to use.
Bur Replacement - Push Button (standard)
1. Press firmly on back of cap.
2. Gently insert the bur.
3. Release the back of cap
4. To remove bur repeat above—pushing bur in first
while depressing the pushbutton, then pull out.
Bur Replacement - Flip Top MidWest (optional)
1. Lift flip bar up until it stays open (past midway)
2. Insert FG Bur all the way.
3 . Lower flip bar to lock bur in place.
4. To remove bur, repeat as above pushing bur in first
before pulling out.
Note: picture shows flip bar in the “open position”
Keep the lever in the closed position at all times during use.
!!! WARNING !!!
♦ Do not use excessive force while inserting and locking bur.
♦ Never operate Handpiece without a bur in the chuck.
♦ Air pressure must not exceed 35 psi.
♦ Autoclave according to instructions. Do not exceed a temperature of 275
o
F (135
o
C).
♦ Check bur is lock securely in place, before use.
♦ Do not use bent or distorted burs.
♦ Lubricate daily, (see page 19).
♦ Always insert the burs to the full length of the chuck.
♦ When removing burs always push in before pulling out.
