High Speed Handpiece Fiber Optic Bulb Replacement
Fiber Optics offers the advantage of a bright light directly over the work surface. The bulb
switches on and off automatically when the foot control is depressed. Fibre optic lights in
the high speed drill is an option on both the GS and GS deluxe dental units.
Bulb Replacement
1. Disconnect power source.
2. Unscrew the connector and remove handpiece from hose.
3. Slide the handpiece connector nut back over the gray hose to expose the
bulb housing. (See Fig 1).
4. Slide the bulb all the way out from bulb housing and remove
from the power cable. (See Fig 2).
5. Insert new bulb into the power cable and slide it back into the bulb
housing. Slide over the connector nut and screw back
onto the handpiece. (See Fig 3).
iM3 Dental Systems

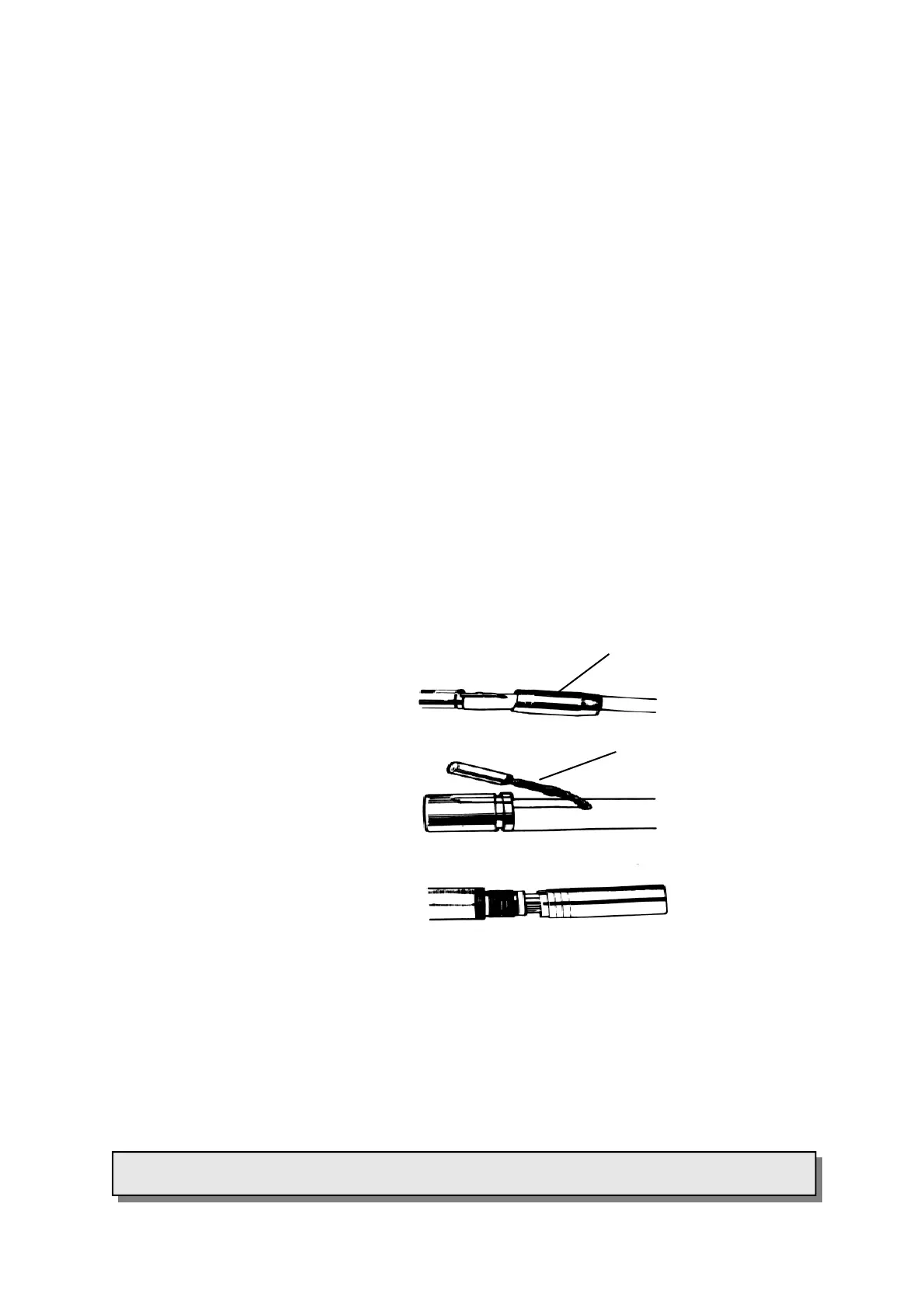

FIGURE 1.
FIGURE 2.
FIGURE 3.
Connector Nut
Power Cable
