5-I: Assembling the Scaler Unit
1. Ensure that the power switch is set to off. If plugged in, the power indicator light should
not be lit.
2. Plug the power cord of the main unit into a grounded AC power outlet.
3. Insert the tip into the hand piece and lock it into place by using the torque wrench. Be
careful not to cross-thread or overturn the tip as it may cause the tip and hand piece to
break. NOTE: breakage of this type is not covered under any warranty.
4. Plug the free end of the blue water tube into the back of the unit by firmly pushing it over
the water nozzle, and then fastening it down via the provided nut until secure.
5. Attach the male quick connect to your water supply (or use a saddle valve if connecting
directly to a water line. Please contact a licensed plumber if you require direct
installation of this manner).

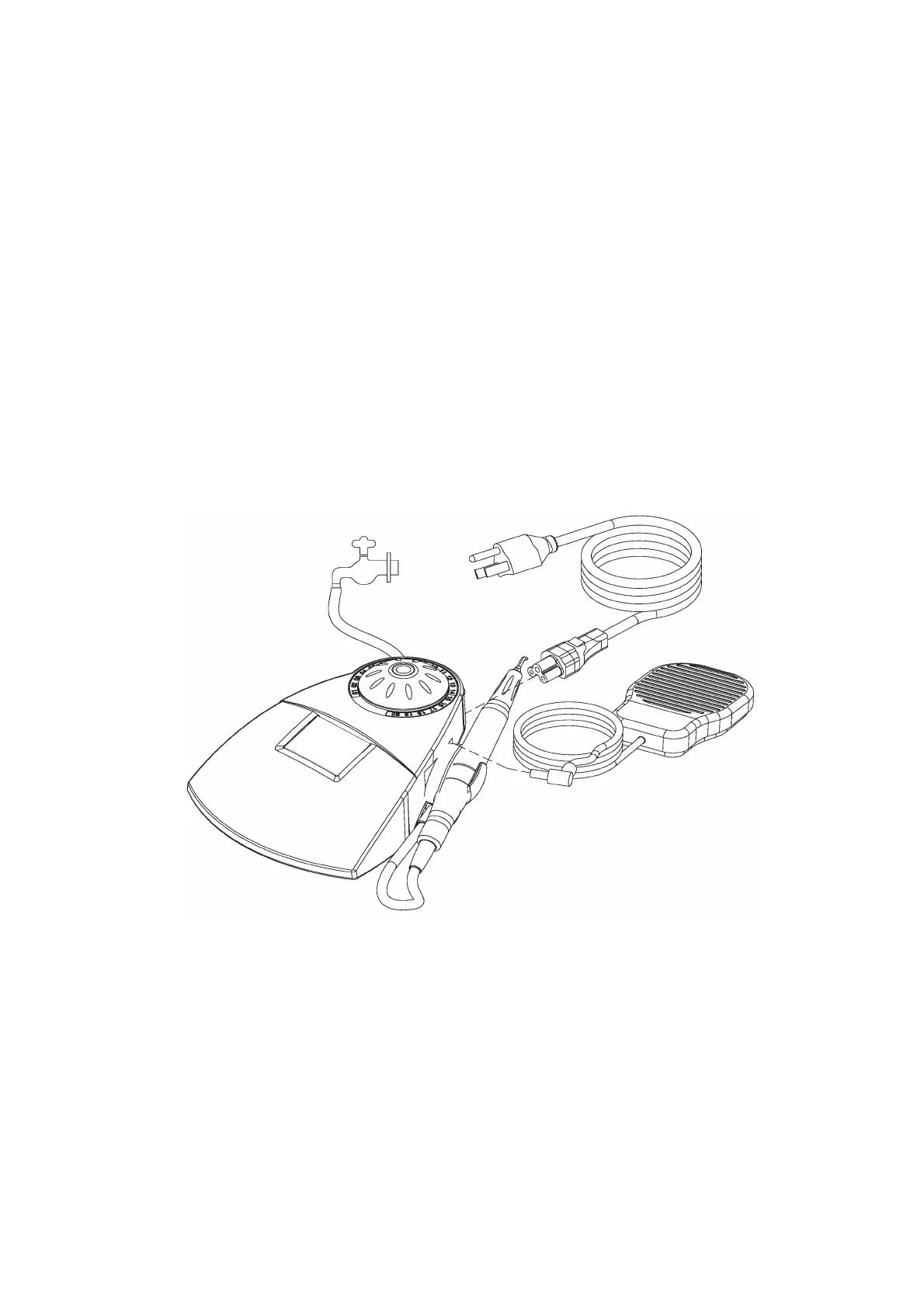

Fig.2, System Installation Diagram
