19

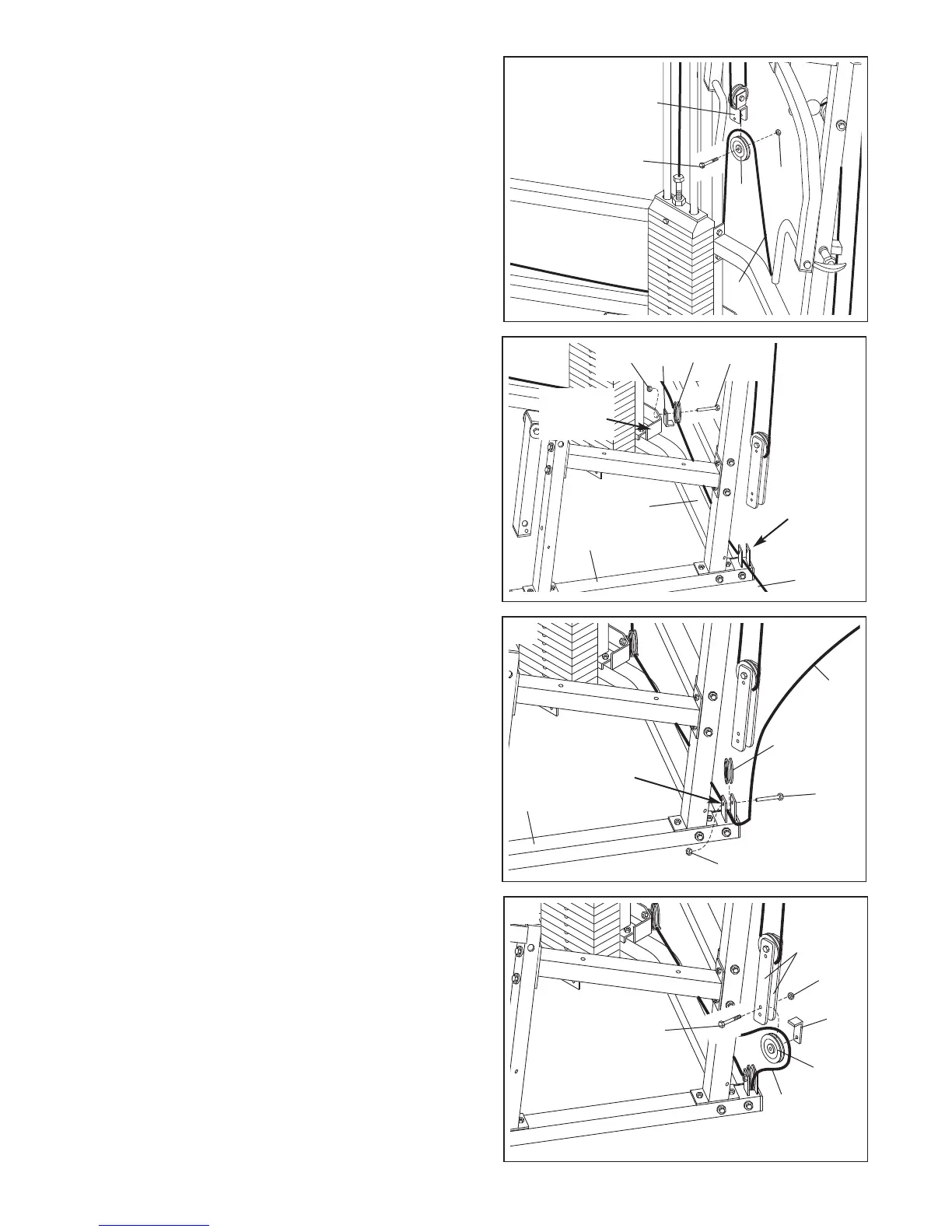

42. Wrap the Low Cable (75) around a 3 1/2” Pulley (24)
in the direction shown. Attach the Pulley to the lower
half of the Pulley Frame (22) with a 3/8” x 1 3/4” Bolt
(
57) and a 3/8” Nylon Locknut (50).
42
50
24
43. Wrap the Low Cable (75) around a 3 1/2” Pulley (24)
in the direction shown. Attach the Pulley and a Cable
Trap (25) to the welded bracket on the Weight Base
(5) with a 3/8” x 2” Bolt (54) and a 3/8” Nylon Locknut
(50). Make sure the Cable Trap is oriented as
shown.
Route the Low Cable (75) through the welded bracket
on the Press Base (6) as shown.
43
75
5
6
44. Wrap the Low Cable (75) around a 3 1/2” Pulley (24)
in the direction shown. Attach the Pulley to the weld-
ed bracket on the Press Base (6) with a 3/8” x 1 3/4”
Bolt (57) and a 3/8” Nylon Locknut (50).
44
24
75
57
50
6
57
75
2
2
Welded
Bracket
45. Wrap the Low Cable (75) around a 3 1/2” Pulley (24)
in the direction shown. Attach the Pulley and a Cable
Trap (25) to the second hole from the bottom of the
Adjustable Pulley Plates (23) with a 3/8” x 2” Bolt (54)
and a 3/8” Nylon Locknut (50). Make sure the Cable
Trap is oriented as shown.
45
50
23
54
75
25
24
Welded
Bracket
Welded
Bracket
50
25
24
54
