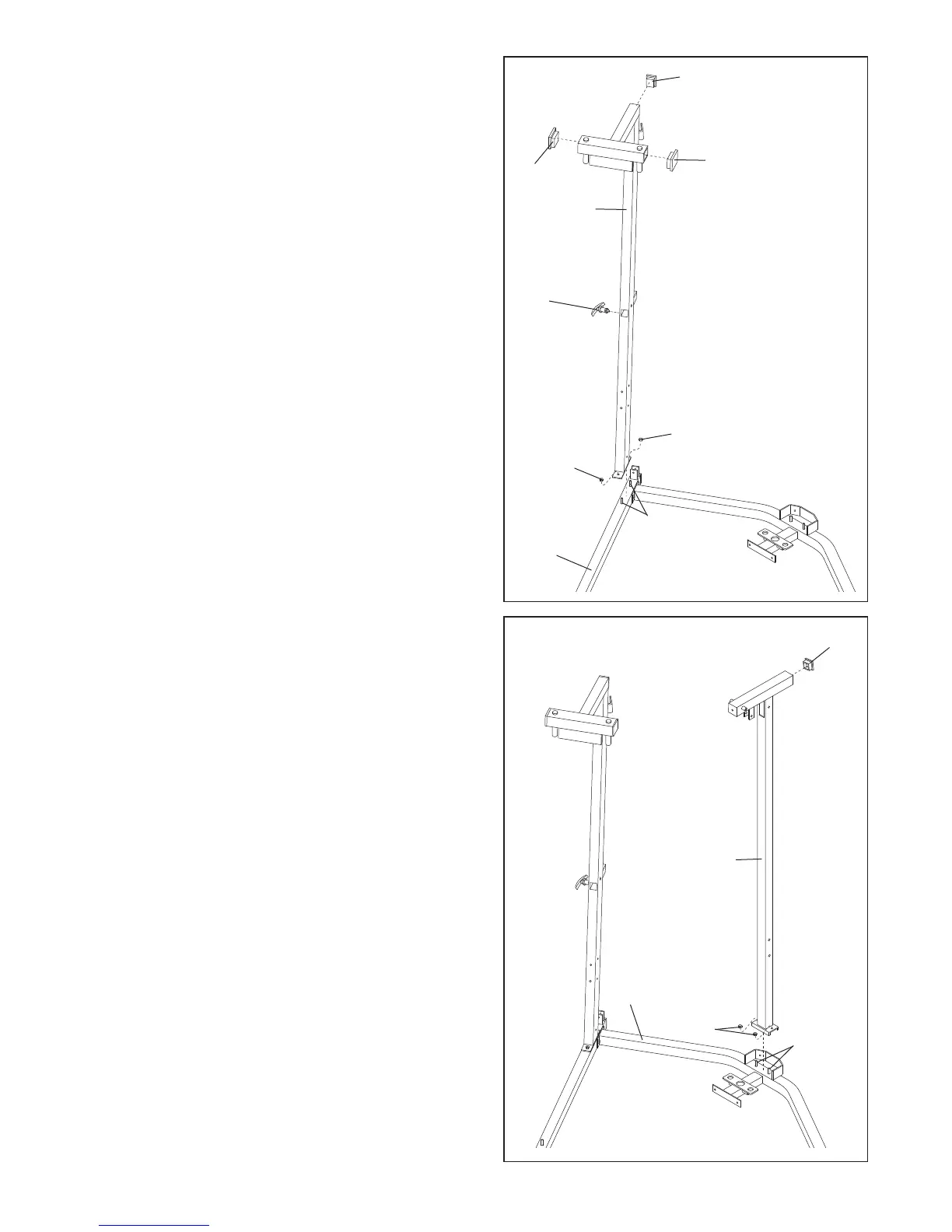

3. Press three 2” Square Inner Caps (28) into the
Butterfly Upright (1).
P
lace the bracket on the lower end of the Butterfly
Upright (1) over the indicated 5/16” x 2 1/2” Carriage
B
olts (92) in the Butterfly Base (4). Hand tighten two
5/16” Nylon Locknuts (64) onto the Bolts.
Thread an Adjustment Handle (85) into the indicated
hole in the Butterfly Upright (1).
3
6
4. Press a 2” Square Inner Cap (28) into the Weight
Upright (9).
Place the bracket on the lower end of the Weight
Upright (9) over the indicated 5/16” x 2 1/2” Carriage
Bolts (92) in the Weight Base (5). Hand tighten two
5/16” Nylon Locknuts (64) onto the Bolts.
4
64
64
9
