Imagine DA-DSR6804+D - Front Module; Back Module

DA-6804+D
Installation and Operation Manual
3
Copyright © 2011, Harris Corporation

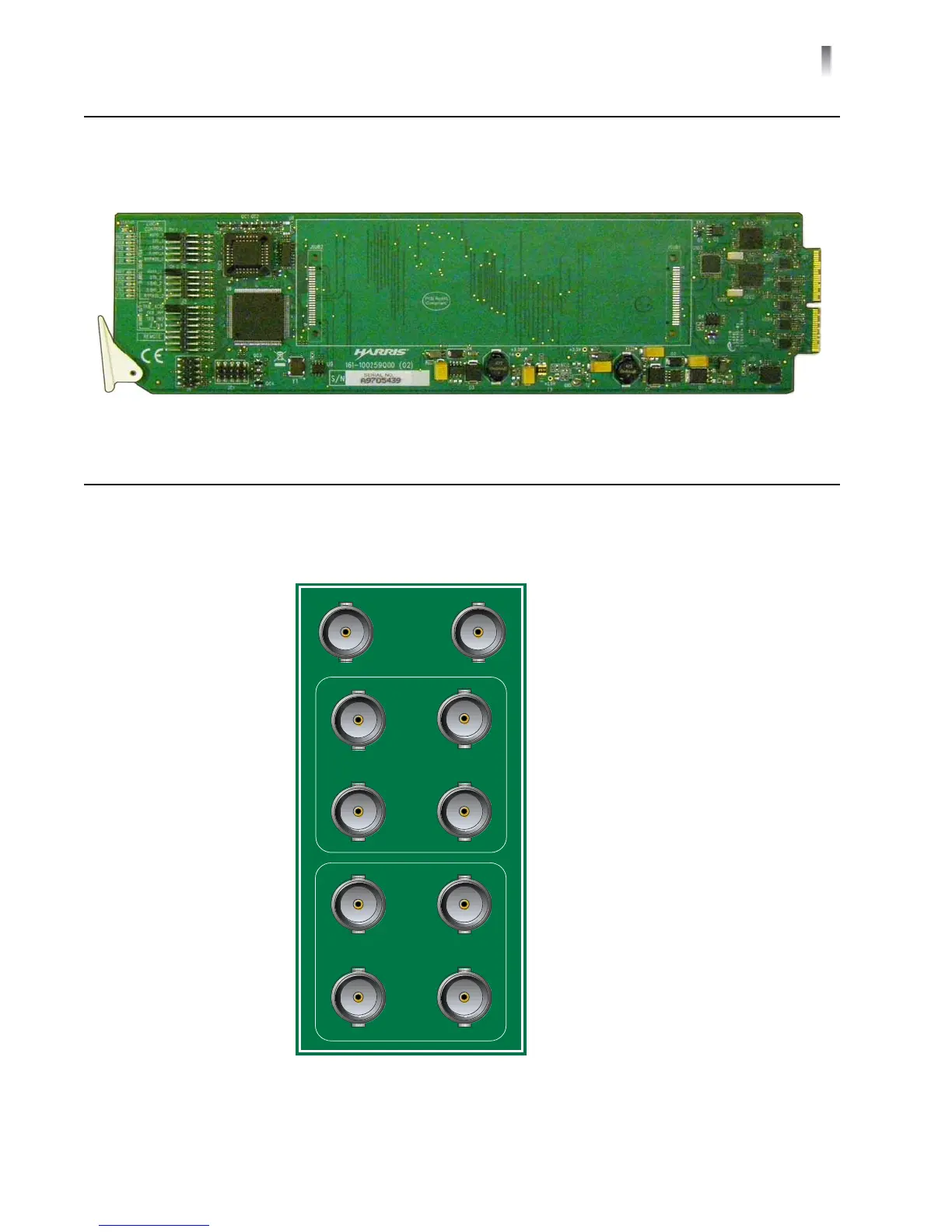

Front Module
Figure 1-1 DA-6804+D Front Module
Back Module
DA-6804+D series modules cannot be installed in 6800 / 7000 series frames.
Figure 1-2 DA-6
804+D Series Back Module
SDI
IN
SDI OUT 1
A
C
B
D
A
C
SDI OU T 2
D
21
B D A-DH / DA- DHR / DA- DS / DA-DSR 680 4+ D
