01/16 10783331 WEB E cod.MF72...
10
Nemo 72 Le

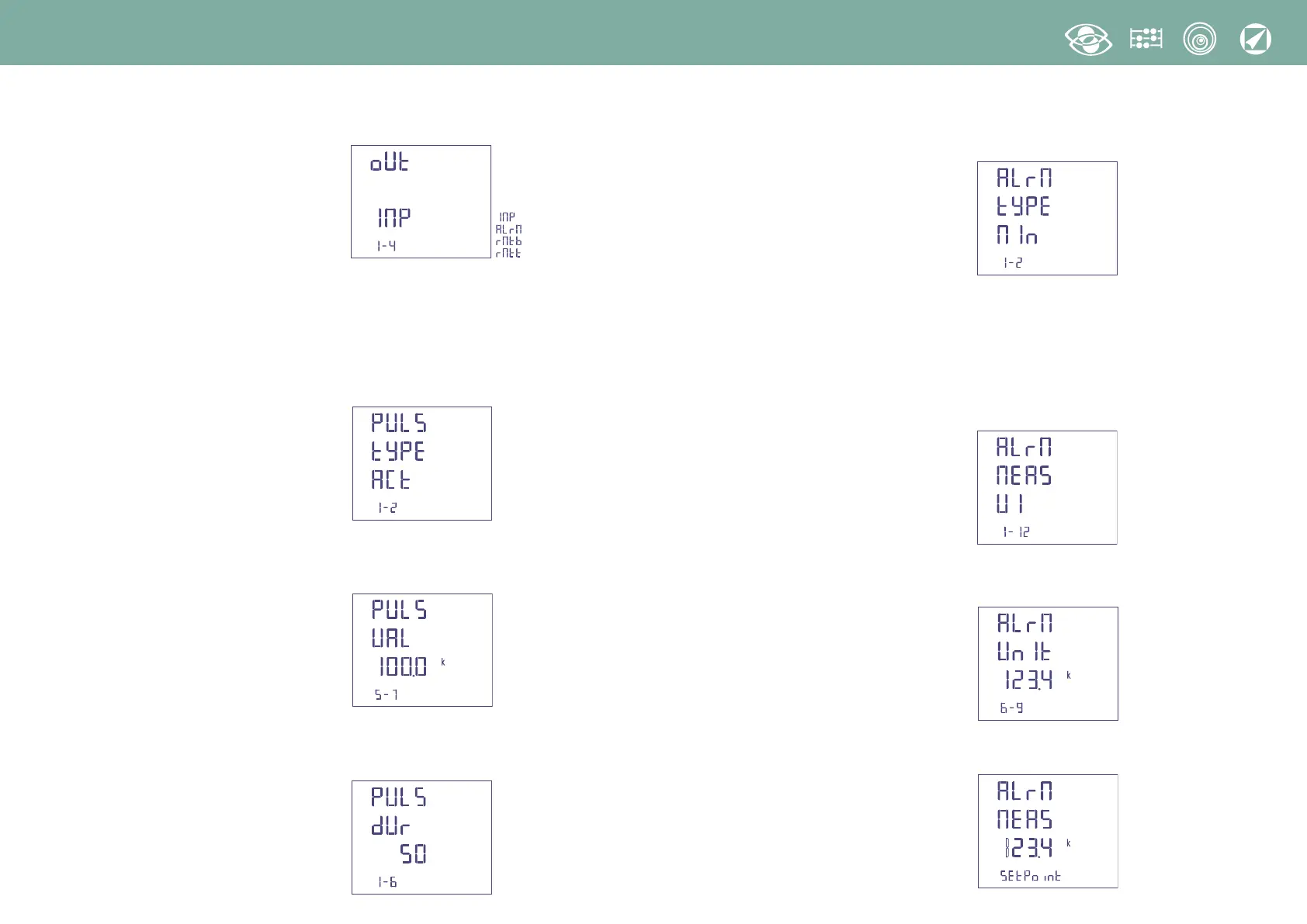

1.7 Relay output function: : energy pulses, alarm,state of relay switching
(remote-controlled)
↑
selects output
↵
confirms
The output relay (terminals 15 - 29) can be used as energy pulses (see point 1.7a)
repeater or as alarm relay (see point 1.7b) or as remote-controlled state of relay
switching (see point 1.7c - point 1.7c ).
1.7a Energy pulses
Quantity that can be coupled: active or reactive energy
↑
selects active / reactive
↵
confirms
Pulse weight: 1pulse/10Wh(varh) – 100Wh(varh) – 1kWh(kvarh) - kWh(kvarh)-
100kWh(kvarh) – 1MWh(Mvarh) - 10MWh(Mvarh)
↑
selects pulse weight
↵
confirms
Width of the pulse: 50 – 100 – 200 – 300 – 400 – 500ms
↑
selects width of the pulse
↵
confirms
= Pulse output
= Alarm
= Bistable
= Time
1.7b Alarm
Alarm type: min. or max.
↑
  selects alarm type
↵
confirms
Quantity that can be coupled: phase voltage (L1-N, L2-N, L3-N)
interlinked voltage (L1-L2, L2-L3, L3-L1)
phase current (I1, I2, I3)
frequency
3-phase active power
3-phase reactive power
↑
selects quantity
↵
confirms
Intervention threshold: intervention point, decimal point, metering unit

↑
selects decimal point and metering unit
↵
confirms
→
moves the cursor
↑
increases the loaded value
↵
confirms
