IMER INTERNATIONAL S.p.A.
INTONACATRICI IMER
Special attention must be given to warnings with this symbol:

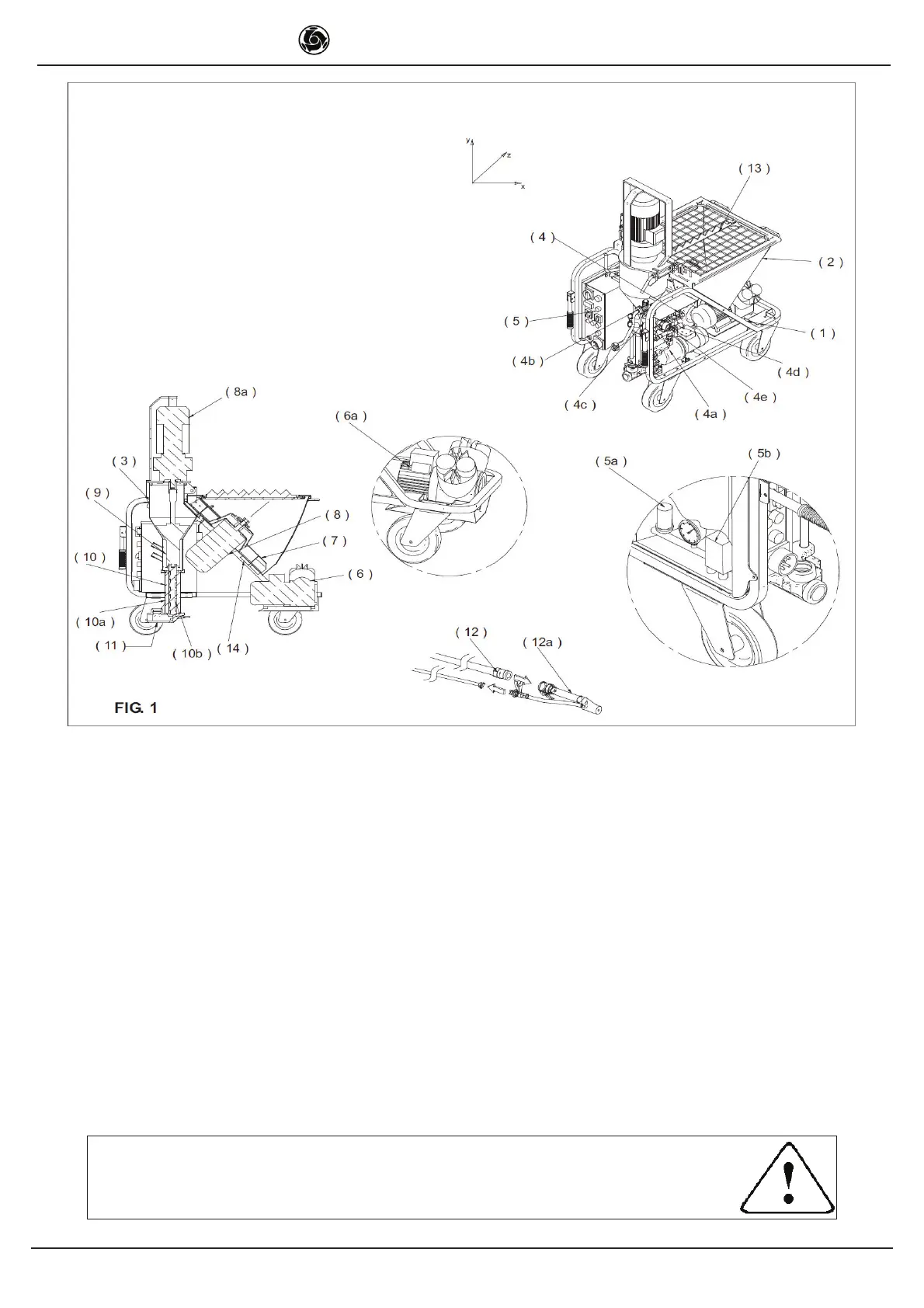

FIG. 1
ENGLISH
( 1 ) WHEELED FRAME
( 2 ) HOPPER
( 3 ) MIXING CHAMBER
( 4 ) WATER CIRCUIT
( 4a ) WATER PUMP
( 4b ) MICROMETRIC VALVE
( 4c ) FLOW METER
( 4d ) WATER PRESSURE SWITCH
( 4e ) PRESSURE REDUCER
( 5 ) ELECTRICAL PANEL
( 5a ) COMPRESSOR PRESSURE
SWITCH
( 5b ) MACHINE PRESSURE SWITCH
( 6 ) DIAPHRAGM COMPRESSOR
( 6a ) RELIEF VALVE COMPRESSOR
( 7 ) CELL WHEEL
( 8 ) CELL WHEEL GEARMOTOR
( 8a ) MORTAR PUMP GEARMOTOR
( 9 ) MIXER
( 10 ) MORTAR PUMP
( 10a ) STATOR
( 10b ) CAM SCREW
( 11 ) MANIFOLD
( 12 ) MATERIAL DELIVERY HOSE
( 12a ) SPRAY JET
( 13 ) GRILLE WITH SACK SPLITTER
( 14 ) HOPPER WATER OUTLET PLUG
