1903KITINT18_230 – 1903KITINT18_400 (E121001A_ENG) 26/10/2012
3
This advices are not covering all
possible risks. The user must
proceed with the maximum
attention and respecting the rules.
3. MANUFACTURER LIABILITY
Instructions here written are not
replacing but only integrating the law
obligations in matter of safety and
accident prevention.
Referring to the instructions here written,
the manufacturer declines any
responsibility in case of:
 Machine use contrary to the EU rules
in matter of safety and accident
prevent.
 Not correct machine installation.
 Missing of the periodical and
programmed maintenance.
 Not correct
 Missing or not correct application of
the manual instructions.
 Defect in voltage and power.
 Not authorized modification to the
machines.
 Use of the machine by not authorized
personnel.

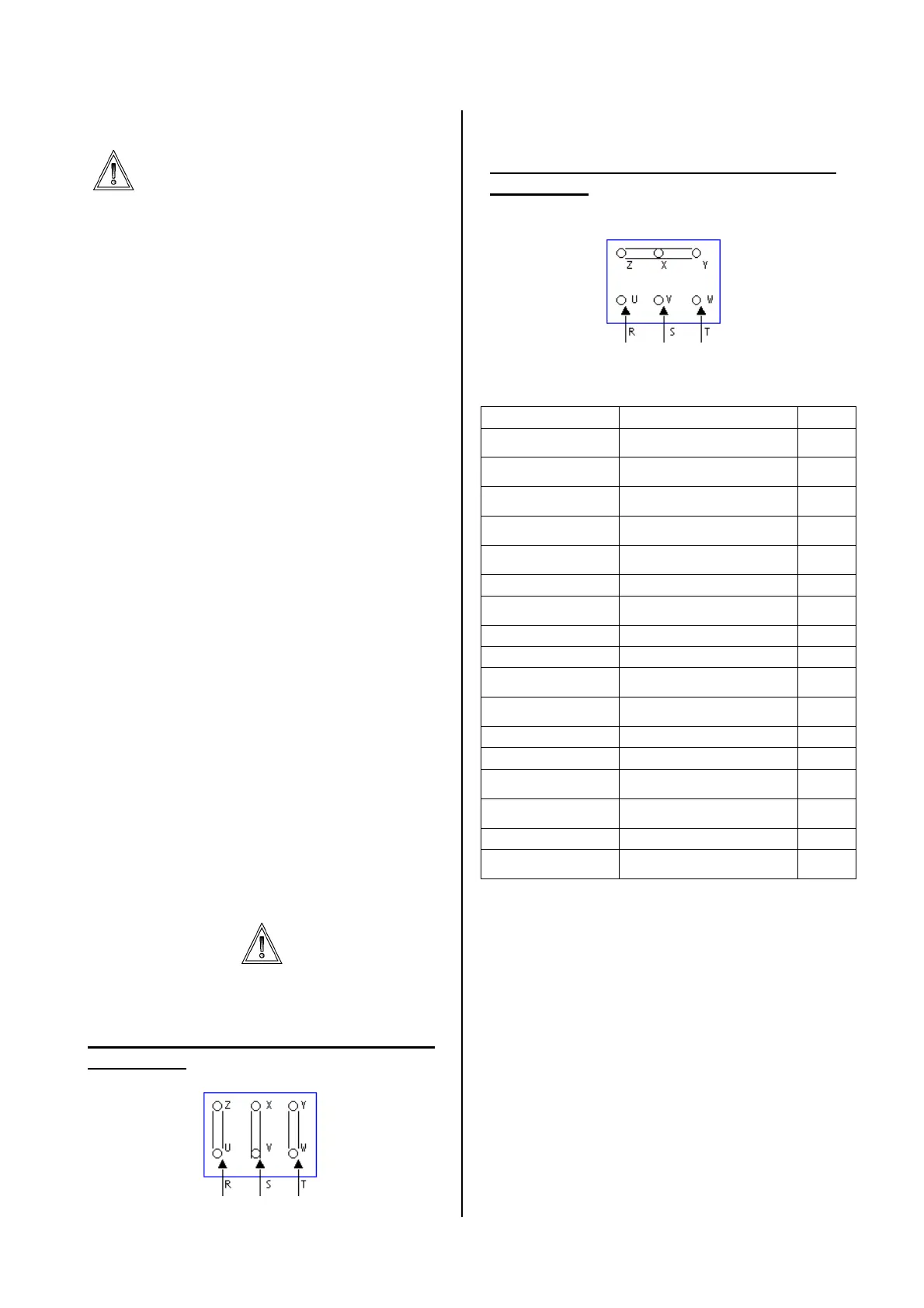

4. KIT COMPOSITION
This kit can be supplied in two different
versions according to the supplied
tension.
The difference is due to the thermal relay
carrying capacity.
(*) 1903KITINT18_230 uses only the
thermal relay code 2950RETT163V1.
Plese note: the motor must be DELTA
connected.
(**) 1903KITINT18_400
uses only the
thermal relay code 2950RETT161V3.
Plese note: the motor must be STAR
connected.
ITEM
DESCRIPTION
Q.TY
*2950RETT163V1
(kit _230)
THERMAL RELAY T16 2,3A
- 3,1A, 1NC+1NA
*1
**2950RETT161V3
(kit _400)
THERMAL RELAY T16 1A -
1,3A, 1NC+1NA
**1
197848D
ES10/34 REVERSING
MOTOR SUPPORT
1
2080308X
PULLEY SPA 67x1 FORO
14 - CAVA 5
1
2955MG71MESS
MOTOR 0,37KW - 4P -
230/400V - 50Hz -
1
2950PRECPM20 CABLE GLANDS M20 x 1,5 1
4936DAFA006M
SELF LOCKING NUT DIN
982 M6 ZINB
4
4936GRF1006M DOWEL FE M6X10 1
4936RPZ1206M WASHER ZN M6X12 8
4936VIZN6X30
SCREW TE 8.8 TF PG 6X30
ZN
4
2950MINMO408
MINICONTACTOR B6-30-01
220-240/40-450
2
2950INBSM589 BAR BSM6-30 1
T110301X ES MOTOR CABLE 1
T110609X
POWER BOX CABLES
10/18 ALOPCF
1
4936VIZN1030
SCREW TE 8.8 TF PG
10x30 ZN
4
4936RPZ0010M WASHER Fe 10 ZINB 4
E121001X
MOUNTING
INSTRUCTIONS
1
Please, obtain an straight iron bar 1 mt
long, which must be used to check the
pulleys correct alignment.
5. INSTALLATION – MECHANIC
COMPONENTS FOR MACHINE WITH
SERIAL NUMBER INCLUDED
BETWEEN E201003027 AND
E201402100
Please refer the here bellow exploded
view.
