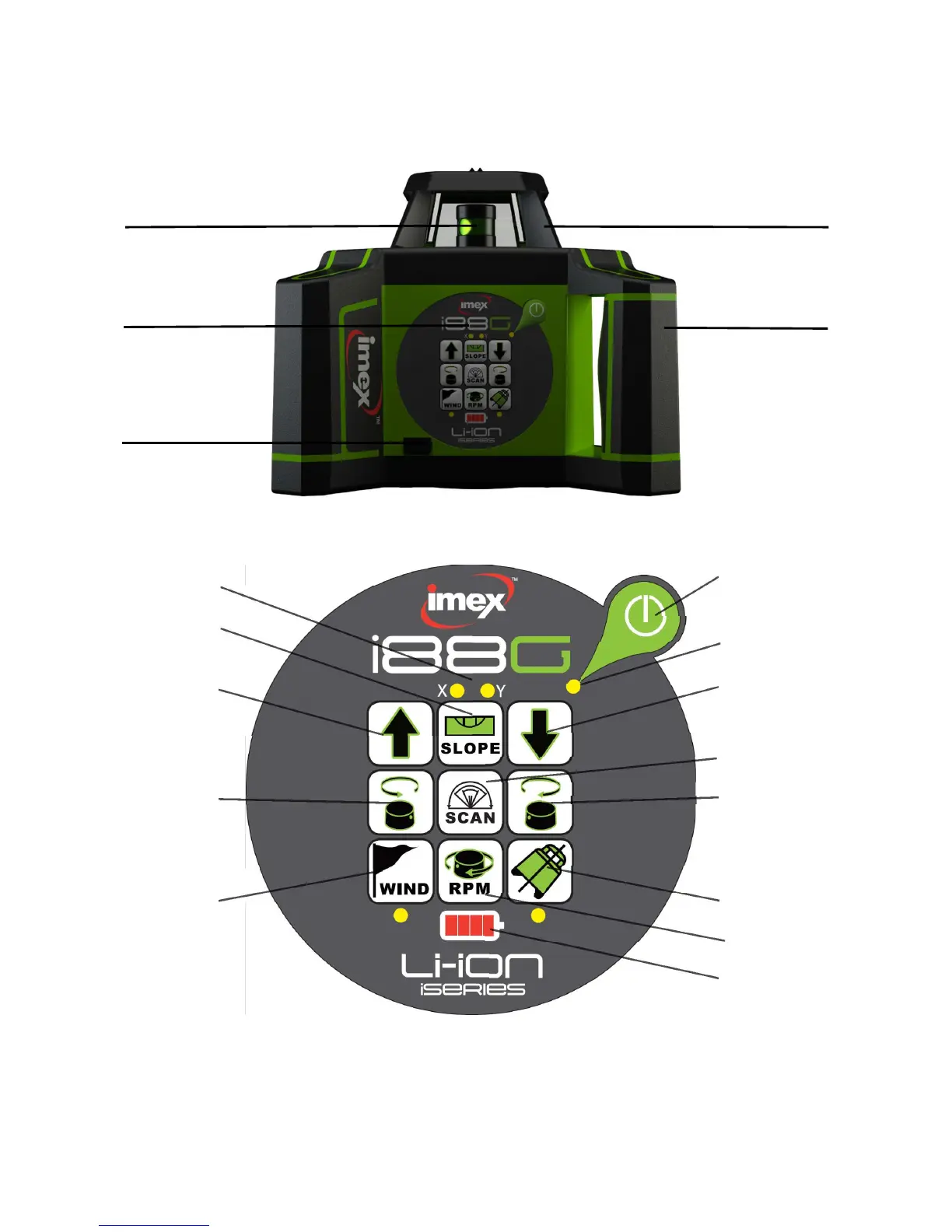

Instrument Overview
i88G Laser Unit
Rotary laser aperture Protective Lighthouse
Control Panel Handle
USB-C Port
Control Panel
a
b
c
d
e
f
g
c
h
d
i
j
k
a. X/Y Grade slope indicator
b. Grade slope mode
c. Grade slope adjustment arrows
d. Left & Right scan direction
e. Wind mode
f. On/Off
g. On/Off Indicator
h. Scan mode
i. Tilt Warning System (TWS)
j. Laser head rotation speed
k.
Battery level indicator
