STI S.r.l. – Via Dei Caravaggi 15, 24040 Levate (BG) – ITALY www.imi-critical.com
Manual 5021, rev. 00 10/2015 – SC/VHS - 24 -
Valve adaptation assembly

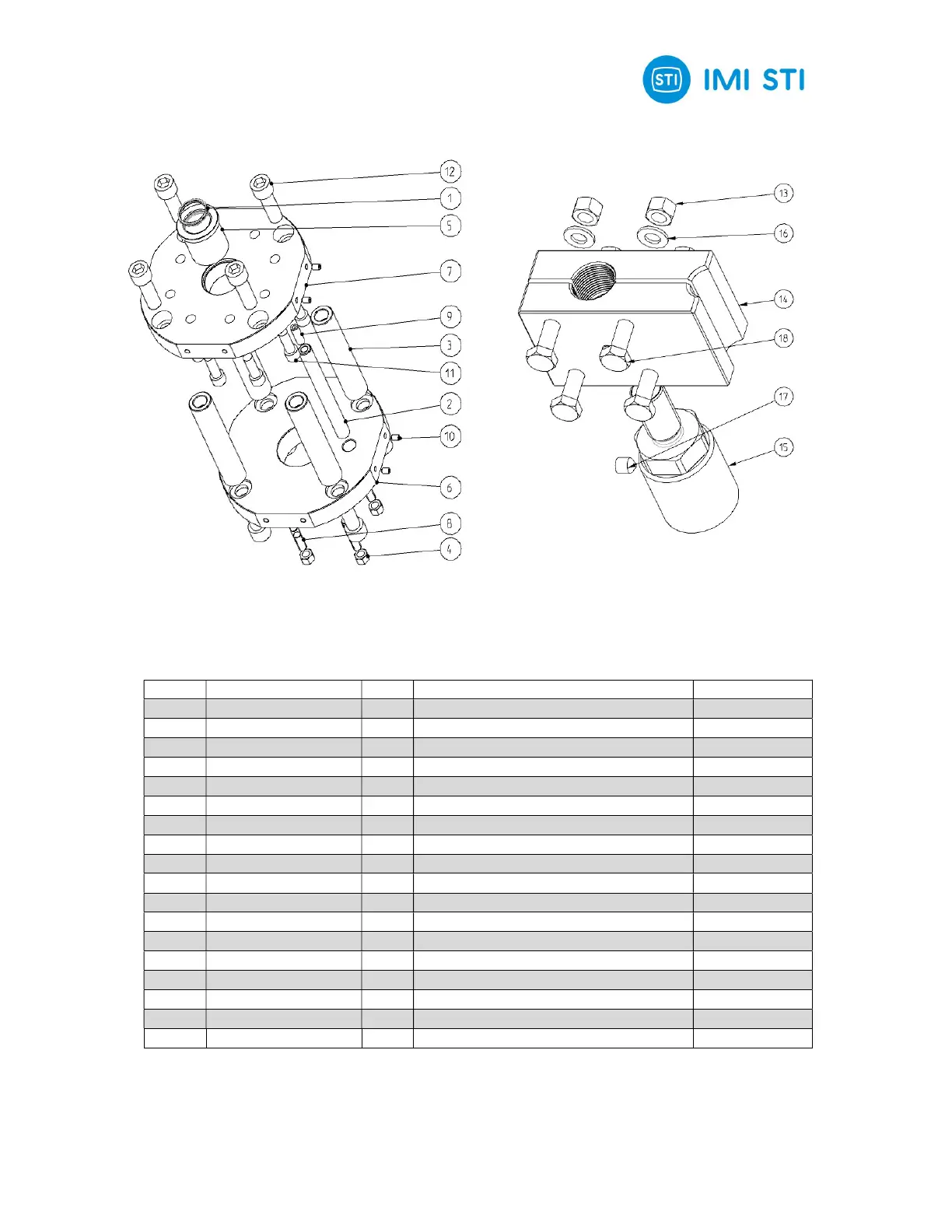

Fig. 7 – Valve adaptation assembly
Valve adaptation part list
Item Description Qty Material
Spare Parts
1 Rod seal 1 PTFE/NBR (*)
2 Antirotation bar 1 Stainless steel
3 Column 4 Stainless steel
4 Nut 4 Stainless steel
5 Rod sealing flange 1 Stainless steel
6 Lower flange 1 Stainless steel
7 Upper flange 1 Stainless steel
8 Stud bolt 4 Stainless steel
9 Screw 1 Stainless steel
10 Screw 4 Stainless steel
11 Screw 8 Stainless steel
12 Screw 8 Stainless steel
13 Nut 4 Stainless steel
14 Valve coupling joint 1 Stainless steel
15 Coupling adapter 1 Stainless steel
16 Washer 4 Stainless steel
17 Screw 1 Stainless steel
18 Screw 4 Stainless steel
(*) NBR standard material for temperature range from -20°C up to +100°C.
(**) Quantity depends on the model.
Fig. 7.2
Fig. 7.1
