1.6 TECHNICAL DATA PLATE
CE Marking
certies conformity of the appliance with the essential safety require-
ments set down by the directive and applicable European regulations,
and operation in compliance with the technical standards of reference.
e CE marking is applied on each appliance with a label.
e CE declaration of conformity, released by the Manufacturer in
compliance with the international regulations in force, can be found
in the documents enclosed with the product.
e technical data plate is located under the casing, on the front
cross member. ere is a DUPLICATE of the plate
near the temperature control unit.

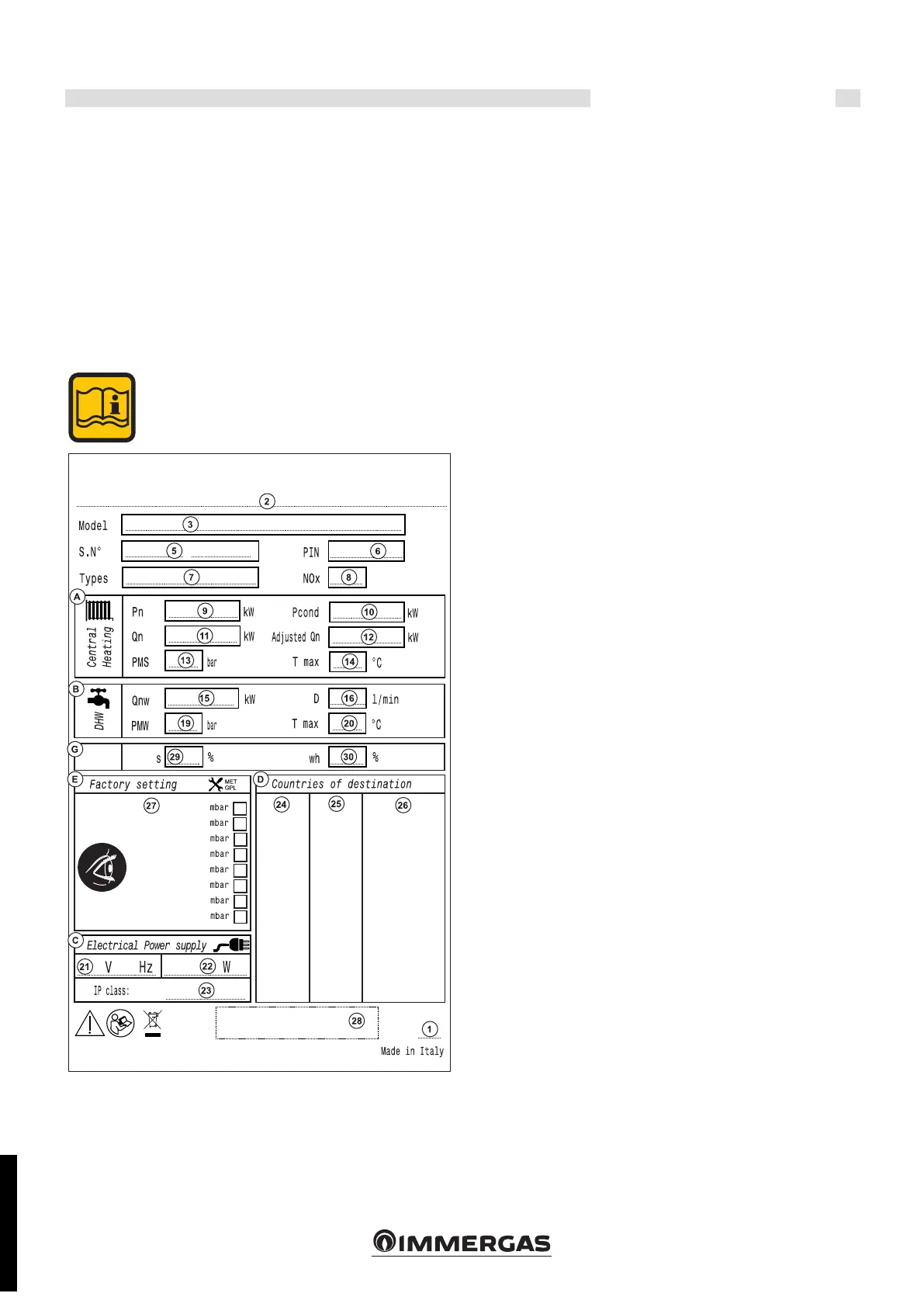

KEY:
1 = CE supervisory body
2 = Type of boiler
3 = Boiler model
5 = (S.N°) Serial Number
6 = P.I.N. Product Identication Number
7 = Types of approved ue exhaust congurations
8 = (NOx) NOx class
A = Characteristics of the heating circuit
9 = (Pn) Useful heat output
10 = (Pcond) Useful output in condensation
11 = (Qn) Maximum heat input
12 = (Adjusted Qn) Adjusted for useful heat input
13 = (PMS) Max. central heating operating pressure
14 = (T max) Max. central heating temperature
A = Characteristics of the DHW circuit
15 = (Qnw) Nominal heat input in DHW mode (if dierent from Qn)
16 = (D) Specic ow rate for DHW according to EN625-EN13203-1
19 = (PMW) Max. DHW operating pressure
20 = (T max) Max. DHW temperature
C = Electrical features
21 = Electric power supply
22 = Consumption
23 = Degree of protection
D = Countries of destination
24 = Direct and indirect countries of destination
25 = Gas category
26 = Supply pressure
E = Factory settings
27 = Adjusted for gas type X
28 = Space for national brands
G = ErP
29 = Seasonal central heating energy eciency
30 = Seasonal water heating energy eciency.
