EOLO MAIOR @

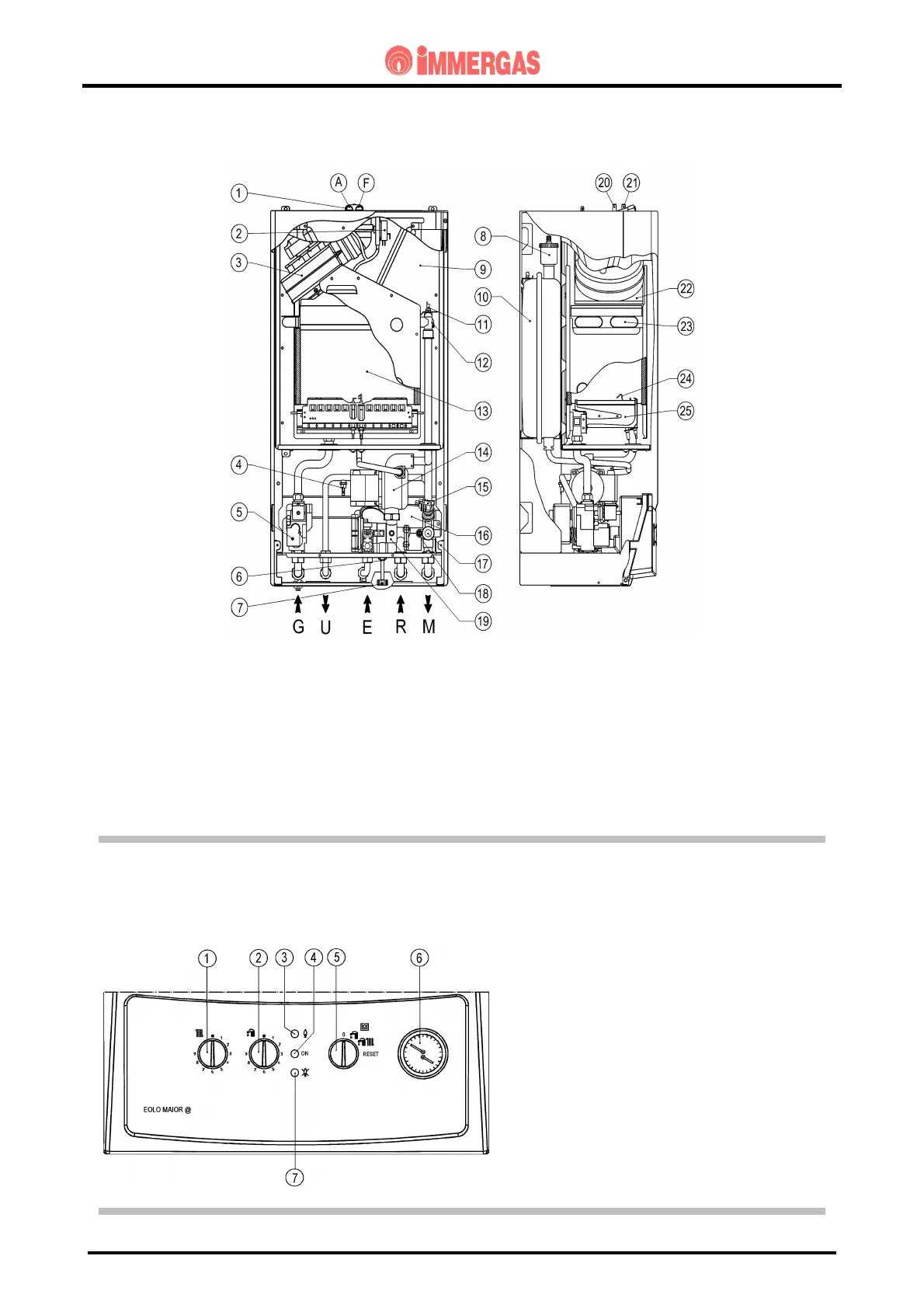

MAIN COMPONENT PARTS
1 - Intake points(A= air) (F=flues)
2 - Fan safety pressure switch
3 - Flue extraction fan
4 - NTC probe for regulating the d.h.w.
5 - Gas valve
6 - System emptying stopcock
7 - System filling stopcock
8 - Automatic air vent
9 - Sealed chamber
10 - Expansion vessel
11- NTC limit and adjustment probe
12- Overheat. safety thermostat
13- Combustion chamber
14- Circulator
15- System water pressure switch
16- Plated exchanger
17- 3-bar safety valve
18- Automatic bypass disengage. screw
19- 3-way hydraulic valve
20- Positive signal pressure point
21- Negative signal pressure point
22- Draught diverter
23- Primary heat exchanger
24- Ignition and detection electrodes
25- Burner
CONTROL PANEL
1 - Heating temperature switch
2 - D.h.w. temperature switch
3 - Burner operating yellow indicator
4 - Green power indicator
5 - Switch 0 / Summer and CAR / Winter / Reset
6 - Boiler thermo-pressure gauge
7 – Red ignition stop indicator
