Ambient thermostat and timer: the boiler is fitted for the Ambient Thermostat
(TA) and timer (OP). If there is only one of these, connect to terminals 6 - 9
removing jumper P1. Whereas, if there are both then connect TA to terminals
8 and 9 and OP to terminals 6 and 7 after removing P1.
BOILER START-UP PRELIMINARY TESTING
Yearly control and maintenance of the appliance.
The following checks and maintenance should be performed at least once
a year.
- Clean the flue side of the heat exchanger.
- Clean the main burner.
- Visually check the hood device for wear or corrosion.
- Check correct lighting and operation.
- Ensure correct settings of the burner in domestic water and heating
phases.
- Check correct operation of control and adjustment devices and in
particular:
- intervention of electrical main electrical switch on boiler;
- system control thermostat intervention;
- domestic water control thermostat intervention.
- Check tightness of gas supply circuit; insert a “U” or digital type pressure
gauge in the pressure point upstream of the gas valve and then closing
the boiler on-off valve (cock) and closing the gas valve, after 5 minutes
there must be no pressure variation on the manometer.
- Check intervention of the device against no gas ionization flame control;
intervention time must be less than ten seconds.
- Visually check for water leaks or oxidation from/on connections.
- Visually check that the water safety valve drain is not blocked.
- Make sure that, after discharging system pressure and bringing it to the
zero (read on boiler pressure gauge), the expansion tank charge is 1,0
bar.
- Check that the system static pressure (with system cold and after refilling
the system by means of the filler cock) is between 1 and 1.2 bar.
- Check visually that the safety and control devices have not been
tampered with and/or shorted, in particular:
- temperature safety thermostat;
- water pressure switch;
- fume exhaust control thermostat.
- Check the condition and integrity of the electrical system and in particular:
- electrical cables must be inside the whipping;
- there must be no traces of blackening or burning.

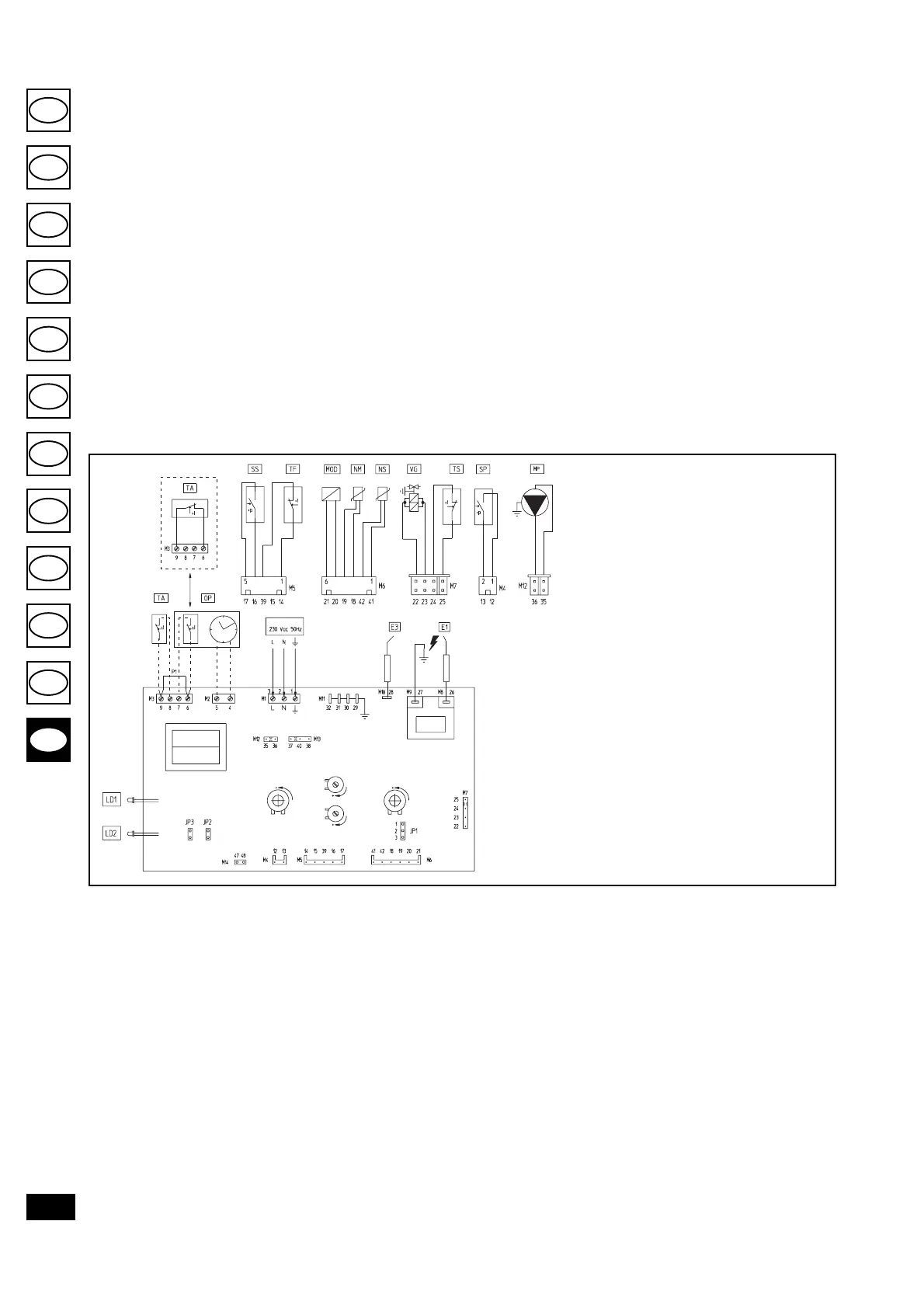

Nike Star wiring diagram.
Key:
E1 - Ignition plugs
E3 - Detection plug
JP1 - Gas selector
JP2 - Domestic circuit function selector
JP3 - Heating timer selector
LD1 - Flame presence LED
LD2 - Fault indicator LED
MOD- Modulating coil
MP - Circulating pump
M14 - Town gas selector
NM - Delivery NTC sensor
NS - Domestic circuit NTC sensor
OP - Programmer clock (optional)
P1 - Room thermostat jumper
SP - Absolute pressure switch
SS - Domestic flow microswitch
TA - Room thermostat On/Off (optional)
TF - Fume thermostat
TS - Overtemperature safety thermostat
VG - Gas valve
Primary
Secondary
Yellow/Green
Brown
Blue
Blue
Black
Black
Black
Black
Gray
Gray
Red
Red
Brown
Black
Red
Blue
Brown
Blue
Brown
Orange
Orange
Supply
D.H.W.
Temperature
Min. C.H.
Max. C.H.
C.H.
Temperature
