Immergas VICTRIX 50 - VICTRIX 50 Hydraulic Circuit

5
STV50 ed 09/08 VICTRIX 50 Rev. 002

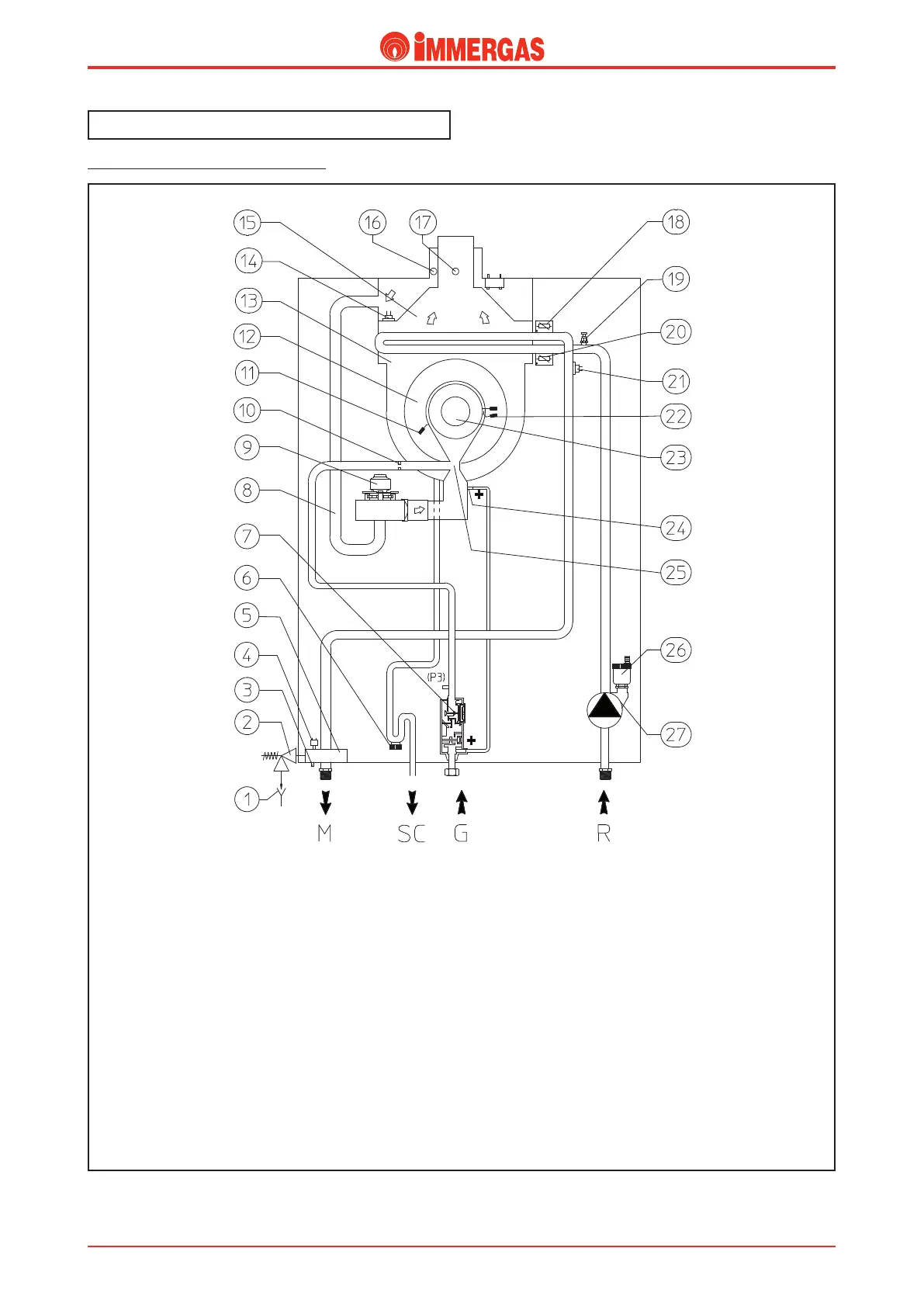

Legend:
1 - Transparent funnel outlet
2 - ISPESL-approved 4 bar safety valve
3 - Boiler unloading cock
4 - System pressure switch (absolute)
5 - Flow manifold
6 - Condensate siphon
7 - Gas valve
8 - Air intake pipe
9 - Air fan
10 - Gas nozzle
11 - Detection electrode
12 - Condensing module cover
13 - Condensing module
14 - Flue safety thermostat
15 - Flue hood
16 - Air sample point
17 - Flue sample point
18 - System ow adjusting probe
19 - Manual vent valve
20 - System return adjusting probe
21 - Overheating safety thermostat
22 - Ignition electrode
23 - Burner
24 - Venturi positive signal (P1)
25 - Air/gas Venturi manifold
26 - Automatic vent valve
27 - Pump
M - System delivery
SC - Condensate discharge
G - Gas supply
R - System return
(from the serial number 3918687)
VICTRIX 50 hydraulic circuit.
