VICTRIX PRO V2 EU
83
1
2
3
Key:
1 - n. 1 reduction Ø 110 - Ø 100
2 - n. 1 internal silicone wall sealing plate
3 - n. 1 exhaust terminal Ø 100

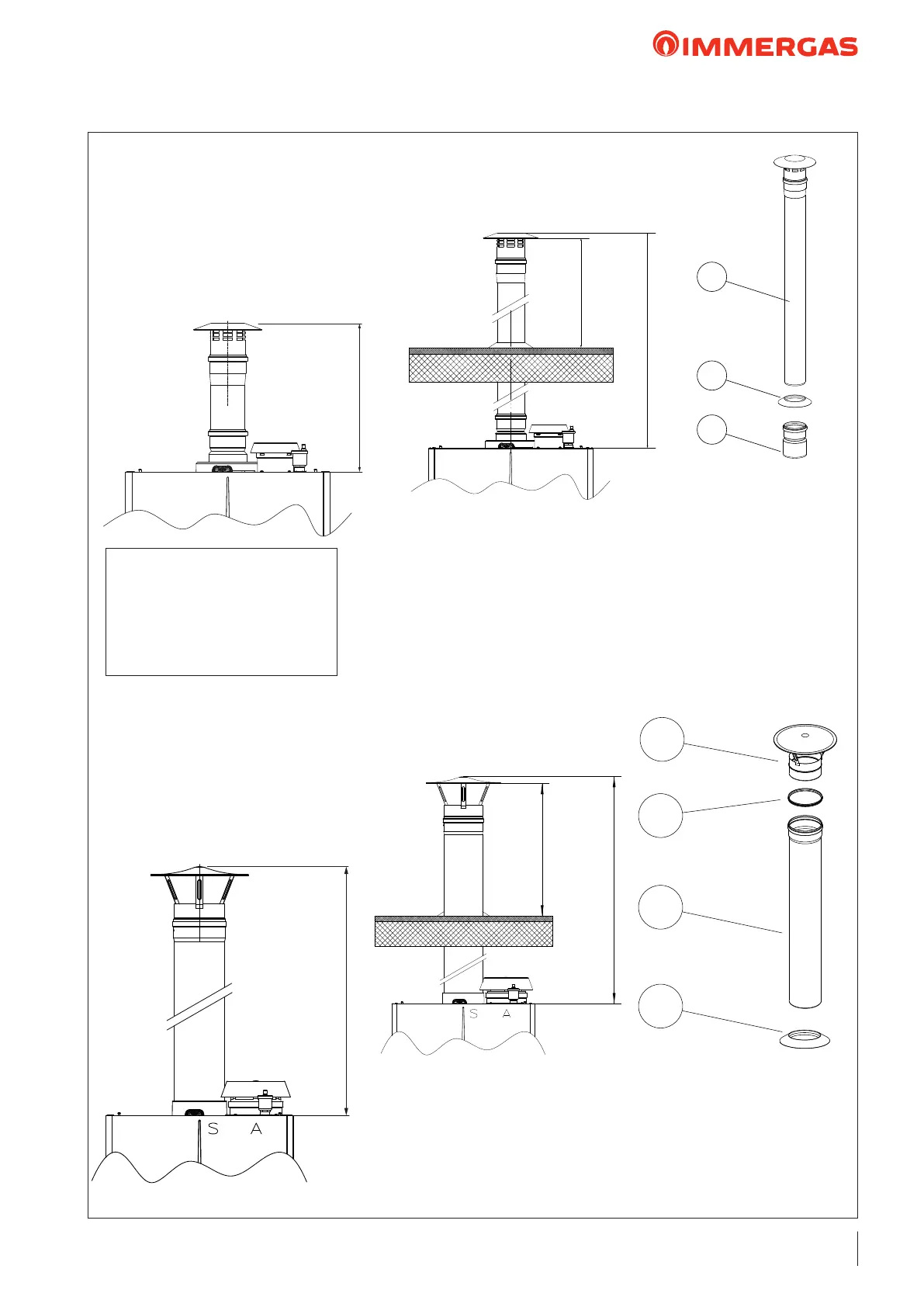

FLUE GAS EXHAUST KIT Ø 100
CODE: 3.032713
CODE: 3.032714 in Stainless steel
Models:
VICTRIX PRO V2 100 EU
VICTRIX PRO V2 120 EU
VICTRIX PRO V2 150 EU
500
L MAX
430 mm
Key:
1 - n. 1 exhaust terminal Ø 160
2 - n. 1 gasket Ø 160
3 - n. 1 drain pipe Ø 160
4 - n. 1 Wall sealing plate
FLUE GAS EXHAUST KIT Ø 160
CODE: 3.034554
CODE: 3.034555 in stainless steel
Models:
VICTRIX PRO V2 180 EU
3
2
1
4
L
500
N.B.:
the stainless steel terminal pro-
trudes 525 mm above the Ø 110 -
100 reduction placed above the ue
ange of the generator and cannot
be shortened
1150
