Chapter 7 Usage of Various Functions
7-
ే౉
3) Names of parts
No. Terminal No.
Names
Usage
ᐭ
P40
Pulse output Pulse output terminal of right direction
ᐮ
COM0
Common Pulse output common terminal
ᐯ
P41
Direction output Direction output terminal
ᐰ
COM0 Common Direction output common terminal
If the motor drive is not input direction, but is input right/opposite direction pulse (the opposite direction pulse
can be output through using 2 instruction (PULSOUT) to P41 contact point

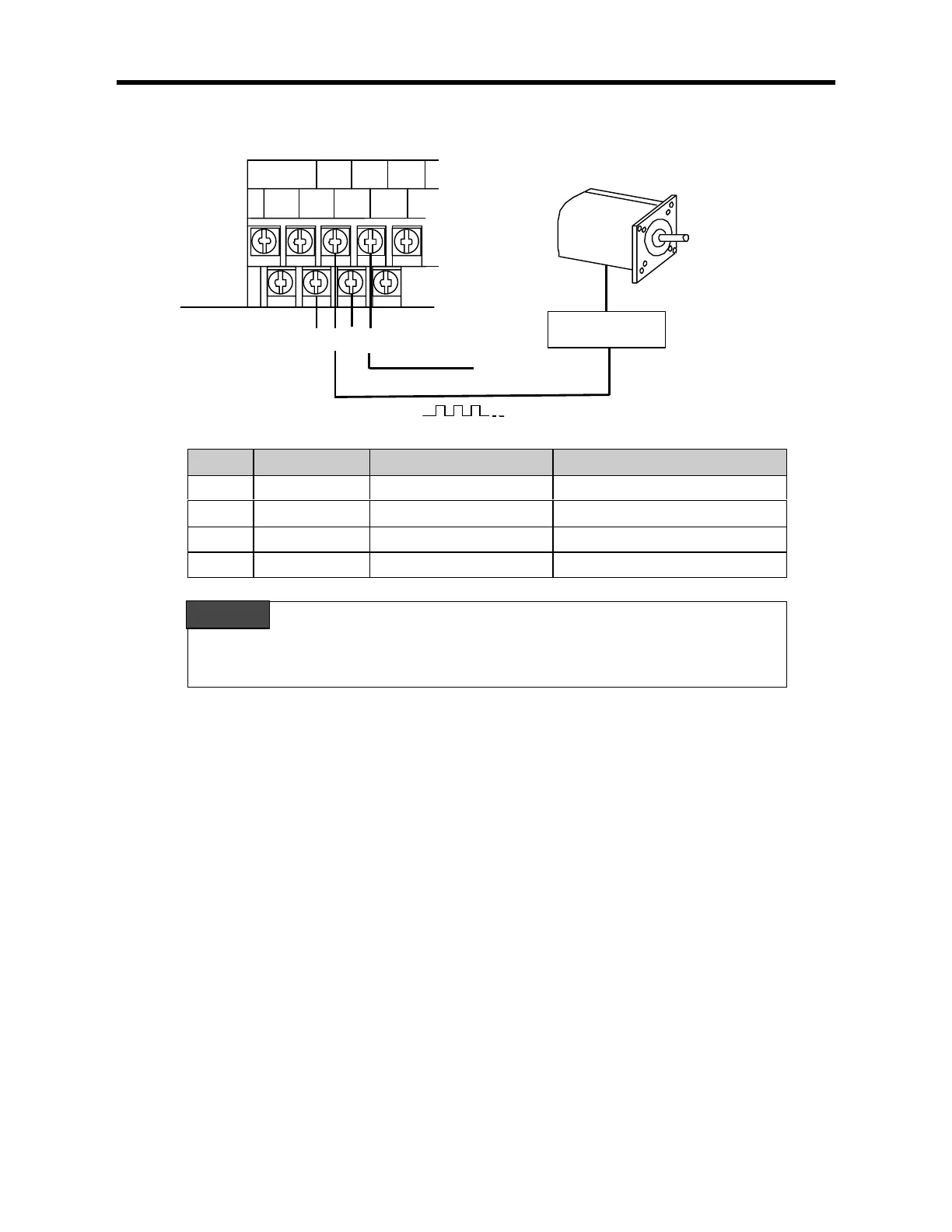

ᐭᐮᐯ
Out
p
ut
p
ulse
ᐰ
AC100-240V
FG COM0
P40
COM1
P41
COM2
P42
Out
p
ut direction
Motor driver
Stepping motor
Remark
