STEP 6 (see Diagram 6)
A.) Attach the Backrest Board (#59B) to the Seat Support Frame (#58). Secure it with four M6 x
¾ Philips Screws (#56) and four Ø ½” Flat Washers (#57).
B.) Attach the Handle (#61) to the Seat Support Frame. Secure it with two M8 x ¾” Allen Bolts
(#52), two Ø 5/8” Lock Washers (#54), and two Ø 5/8” Flat Washers (#53).
C.) Connect the Rear Pulse Sensor Wire (#62) on Handle to the Middle Pulse Sensor Wire
(#47) on Sliding Seat Support (#49).

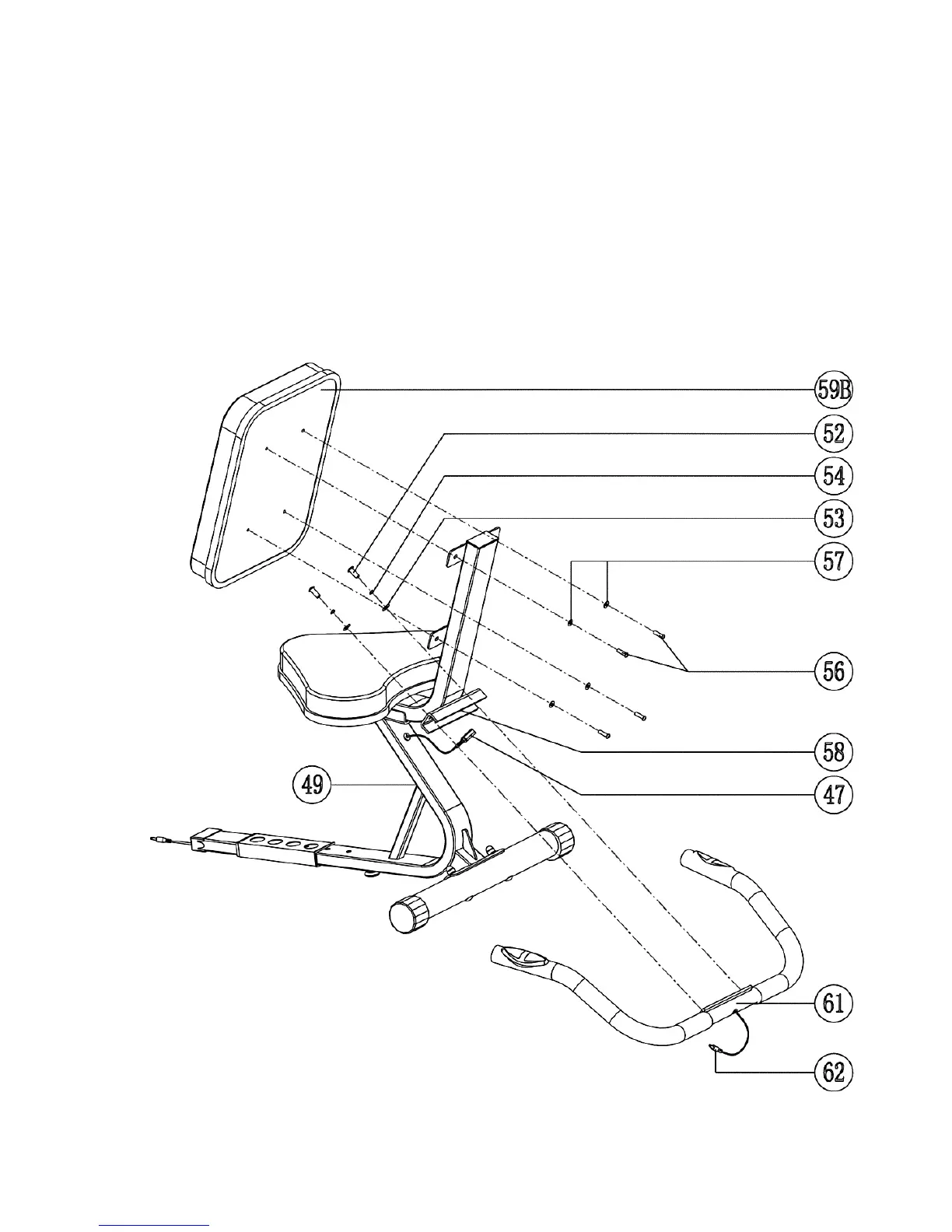

DIAGRAM 6
