STEP 3 (See Diagram 3)
A.) Attach the bottom of Right Upright Beam (#3) to the Rear Stabilizer (#5). Attach the Right
Upright Beam to the Cross Brace (#7).
B.) Secure the Right Upright Beam to the Rear Stabilizer with two M10 x 3 1/8” Carriage Bolts
(#54), ∅ ¾” Washers (#64), and M10 Aircraft Nuts (#63).
C.) Secure the Right Upright Beam to the Cross Brace with two M10 x 2 ¾” Carriage Bolts
(#56), one 4 ¾” x 2” Bracket (#27), two ∅ ¾” Washers (#64), and two M10 Aircraft Nuts
(#63).
D.) Repeat Steps A, B, and C above to install the Left Upright Beam (#2).
E.) Insert the Left & Right Bar Holders (#23 & 24) into the selected holes on the Upright Beam.

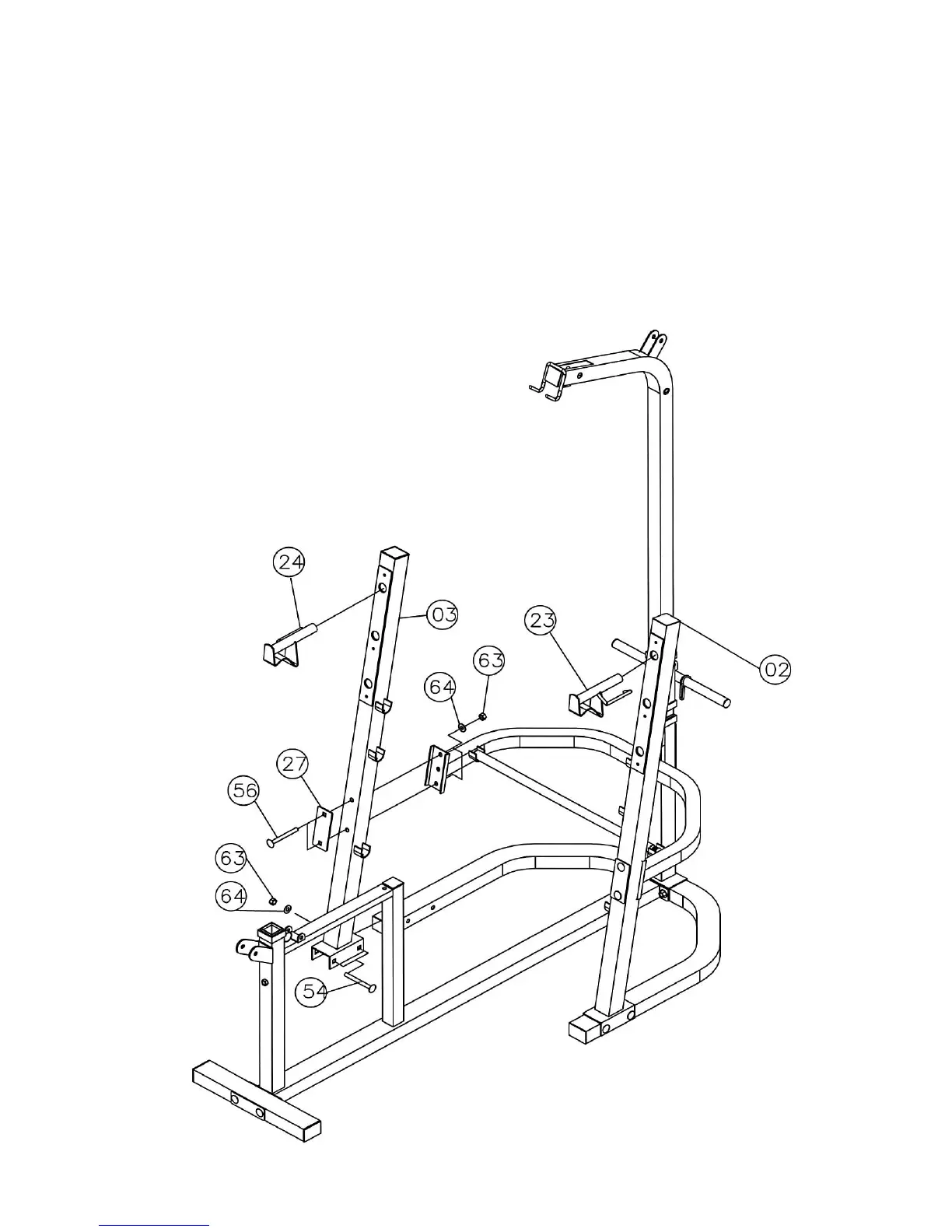

DIAGRAM 3
6
