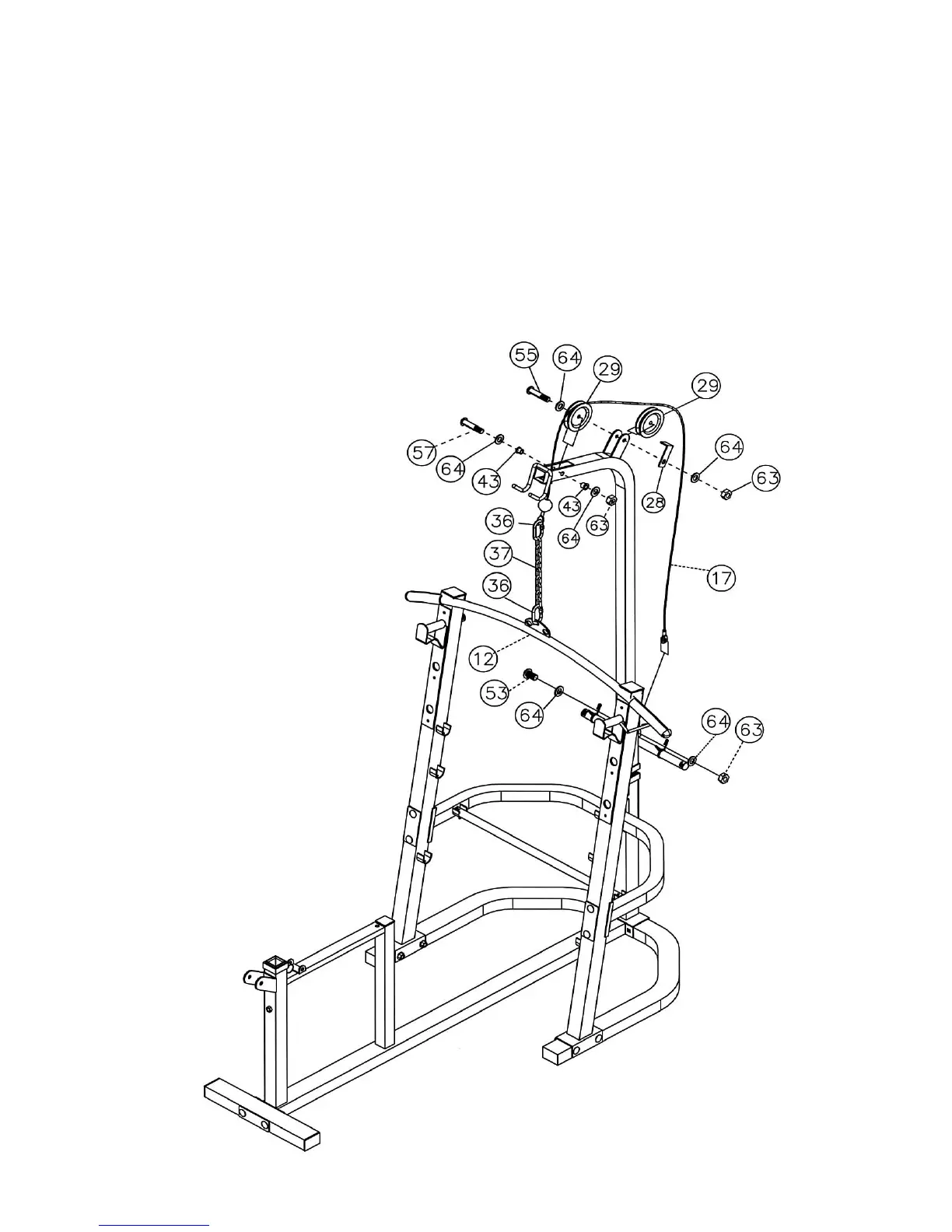

STEP 4 (See Diagram 4)
A.) Attach the Cable (#17) to the opening on the top of the Lat Bar Frame (#1). Make sure the ball
stopper of the Cable is underneath the Frame.
B.) Attach a Pulley (#29) to the opening. Secure it with one M10 x 2 ½” Allen Bolt (#57), two Ø 5/8”
Pulley Bushings (#43), two ∅ ¾” Washers (#64), and one M10 Aircraft Nut (#63).
C.) Draw the Cable to the bracket on the top of Lat Bar Frame. Attach a Pulley to the bracket. Secure
it with one M10 x 2” Allen Bolt (#55), one L-shaped Pulley Bracket (#28), two ∅ ¾” Washers
(#64), and one M10 Aircraft Nut (#63).
D.) Pull the Cable down to the Sliding Weight Post (#11). Secure the Cable to the Post with one M10
x 1 3/8” Allen Bolt (#53), two ∅ ¾” Washers (#64), and one M10 Aircraft Nut (#63).
E.) Connect a Chain (#37) to the Lat Bar (#12) with a C-clip (#36). Connect the Chain to the Cable
with another C-clip.
7
