Impex IGS-5100 - Smith Machine Assembly - Step 2: Rear Frame and Backrest

STEP 2 (See Diagram 2)
A.) Attach the Rear Vertical Frame Base (#7) to the Cross Brace (#8) from the bottom. Attach
the Rear Vertical Frame (#6) onto the Cross Brace on the top. Align the holes and secure
them together with two M10 x 2 ¾” Carriage Bolts (#70), Ø ¾” Washers (#86), and M10
Aircraft Nuts (#83).
B.) Attach the Backrest Board (#34) to the Rear Vertical Frame. Secure it with two M8 x 3 ¾”
Allen Bolts (#80) and Ø 5/8” Washes (#87).

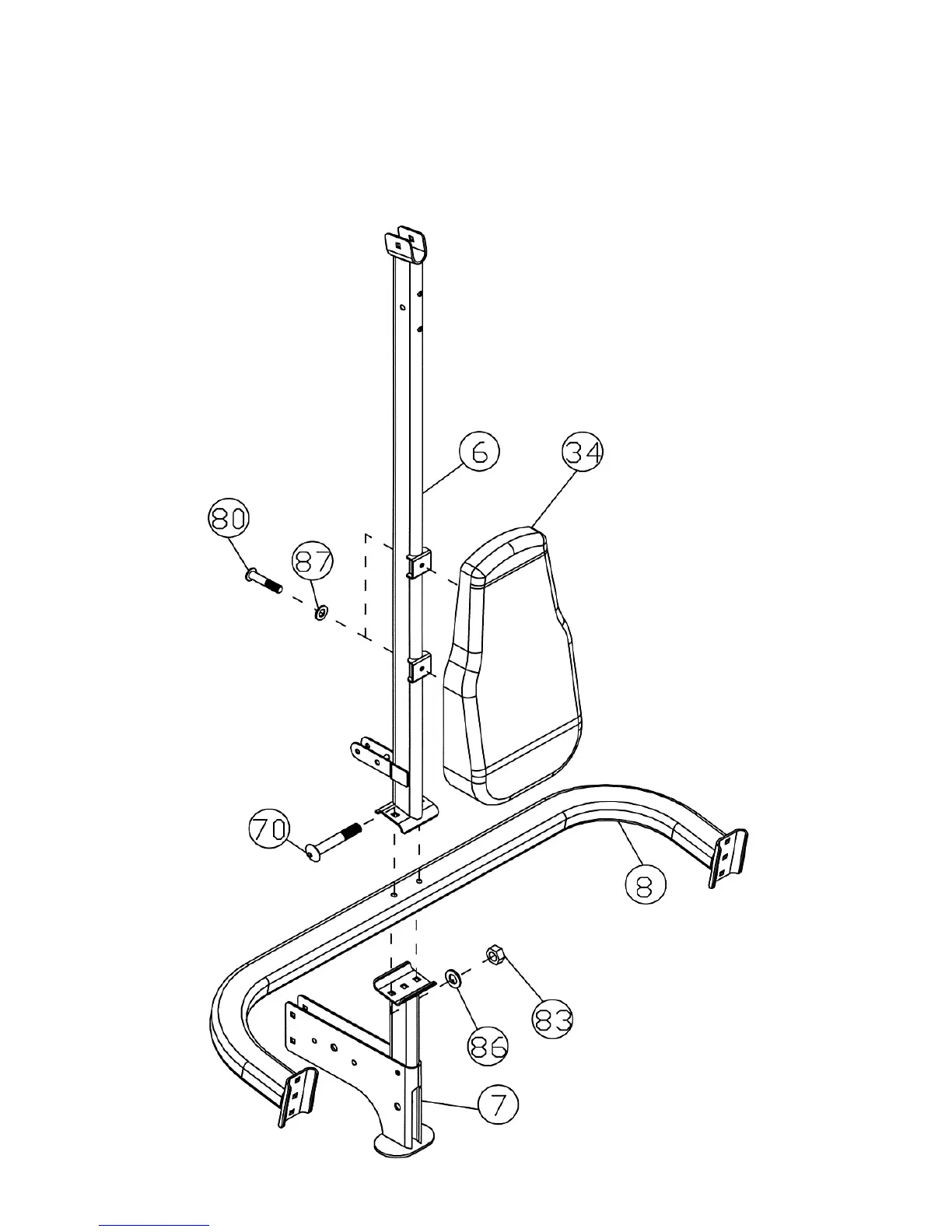

DIAGRAM 2
