STEP 2 (See Diagram 2)
A.) Attach the rear of Main Seat Support (#1) to the Rear Stabilizer (#4). Secure it with two
M10 x 2 3/8” Carriage Bolts (#47), one 5 1/8” x 2 3/8” Bracket (#21), two Ø ¾” Washers
(#39), and two M10 Aircraft Nuts (#50).
B.) Attach the Wheel (#14) to the Rear Stabilizer. Secure it with one M8 x 5 1/8” Allen Bolt
(#44), two Ø 5/8” Washers (#38), and one M8 Aircraft Nut (#51).
C.) Place the Main Seat Support onto the Front Post (#3). Secure it with two M10 x 2 ¾”
Carriage Bolts (#49), one 5 1/8” x 2 ¾” Bracket (#22), two Ø ¾” Washers (#39), and two
M10 Aircraft Nuts (#50).

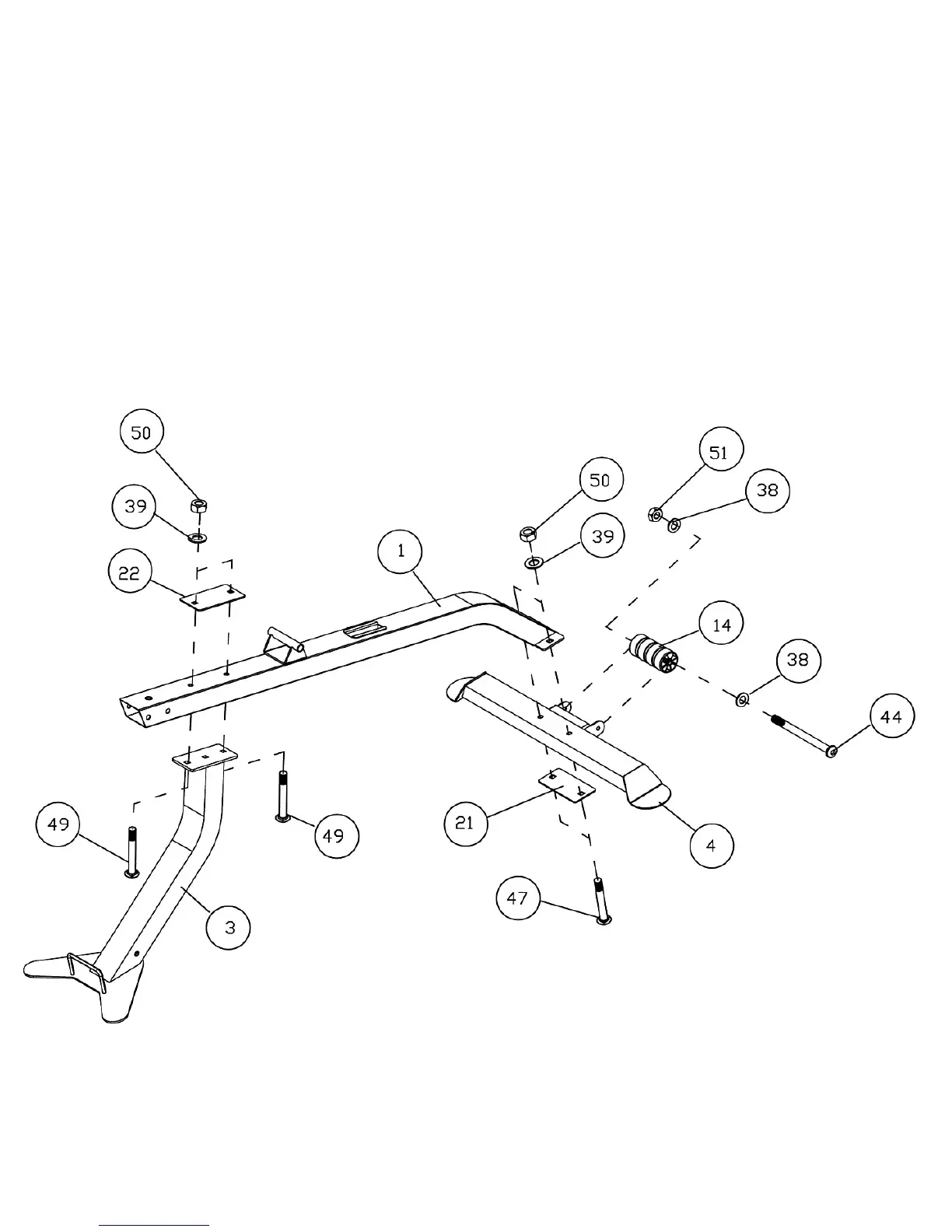

DIAGRAM 2
25
