STEP 8 (See Diagram 8)
A.) Attach the Leg Press Seat Support (#33) to the Leg Press Base Frame (#38). Secure it with four
M10 x ¾” Allen Bolts (#94) and Ø ¾” Washers (#107). Do not tighten the Bolts yet.
B.) Attach the Leg Press Seat Support to the Leg Press Backrest Support (#32). Secure it with two
M10 x 2 ¾” Allen Bolts (#97), four Ø ¾” Washers (#107), and two M10 Aircraft Nuts (#110).
C.) Securely tighten the Nuts and Bolts installed in Procedure A.

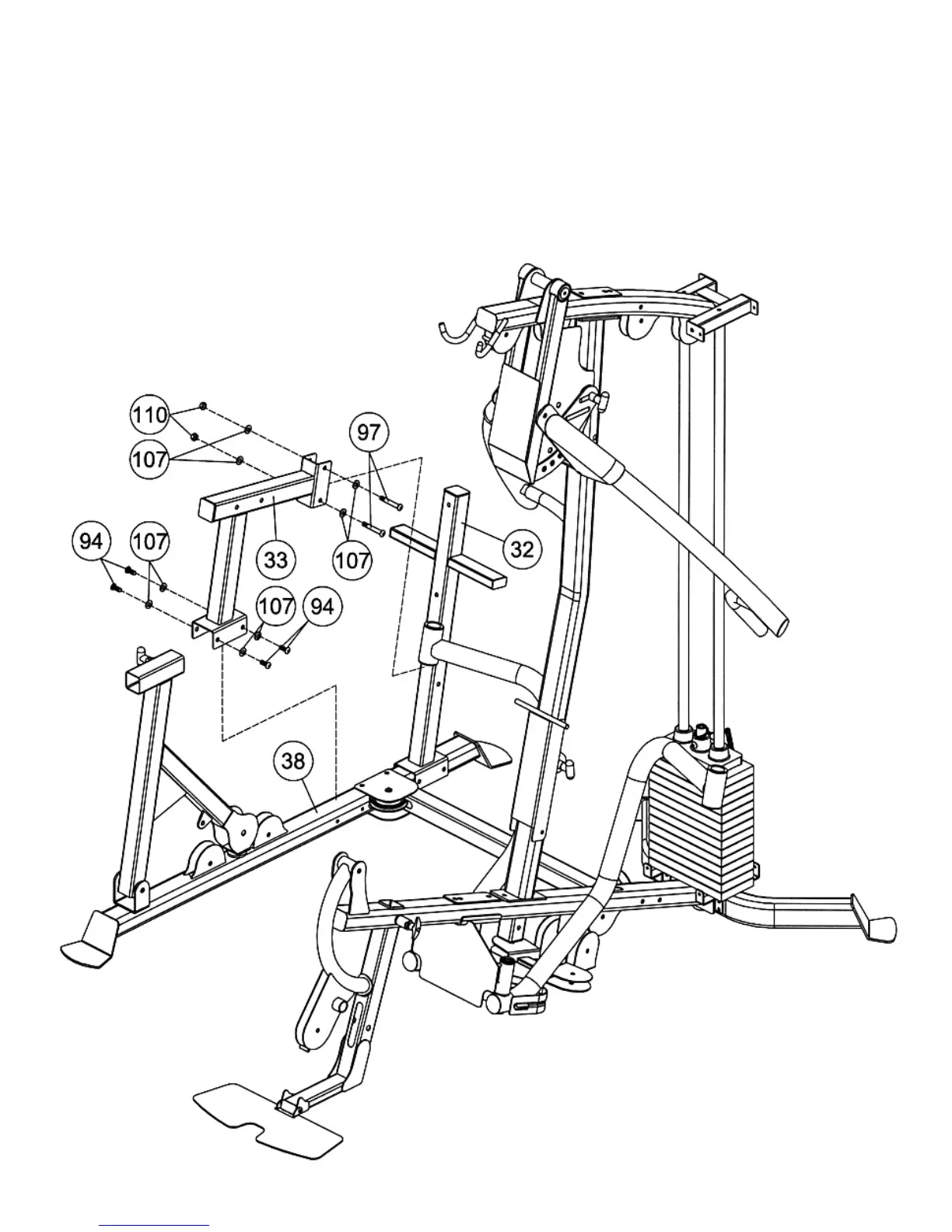

DIAGRAM 8
19
