ASSEMBLY INSTRUCTION
Tools Required for Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches. NOTE: It is strongly recommended that two or more people assemble
this machine to avoid possible injury.
STEP 1 (See Exploded Diagram)
A.) Do not tighten Nuts and Bolts until instructed to do so.
B.) Attach the Front Incline Support (#2) to the Front Stabilizer (#1). Secure it with three
M10 x ¾” Allen Bolts (#11) and three Ø ¾” Washers (#14).
C.) Attach the Main Frame (#3) to the Front Incline Support. Secure them together with one
M10 x 2 3/8” Carriage Bolt (#12), one Ø ¾” Washer1 (#14), and one M10 Aircraft Nut
(#15).
D.) Place the Seat Pad (#5) onto the Main Frame. Secure it with four M8 x ¾” Allen Bolts
(#10) and four Ø 5/8” Washers (#13).
E.) Securely tighten all Nuts and Bolts.
F.) Insert the two Foam Tubes (#4) halfway through the holes on Front Incline Support.
Push four Foam Rolls (#9) onto the Tubes from both ends.

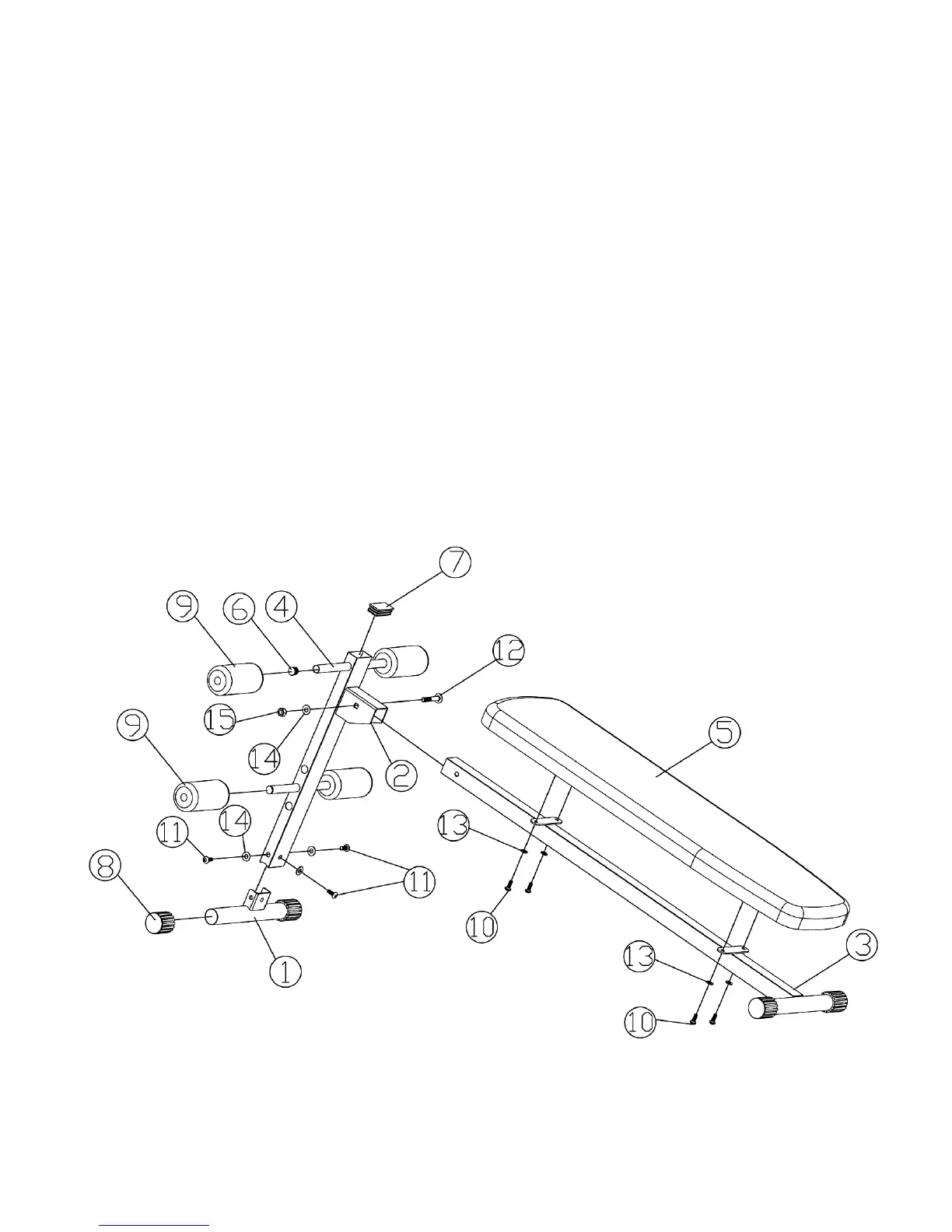

EXPLODED DIAGRAM
5
