© IMPEX INC. www.impex-fitness.com 6
ASSEMBLY INSTRUCTION
• Tools Required For Assembling the Bike: One Crossing Wrench and Allen Wrench,
provided by manufacturer.
• NOTE: It is strongly recommended that two or more people assemble this bike to
avoid possible injury.

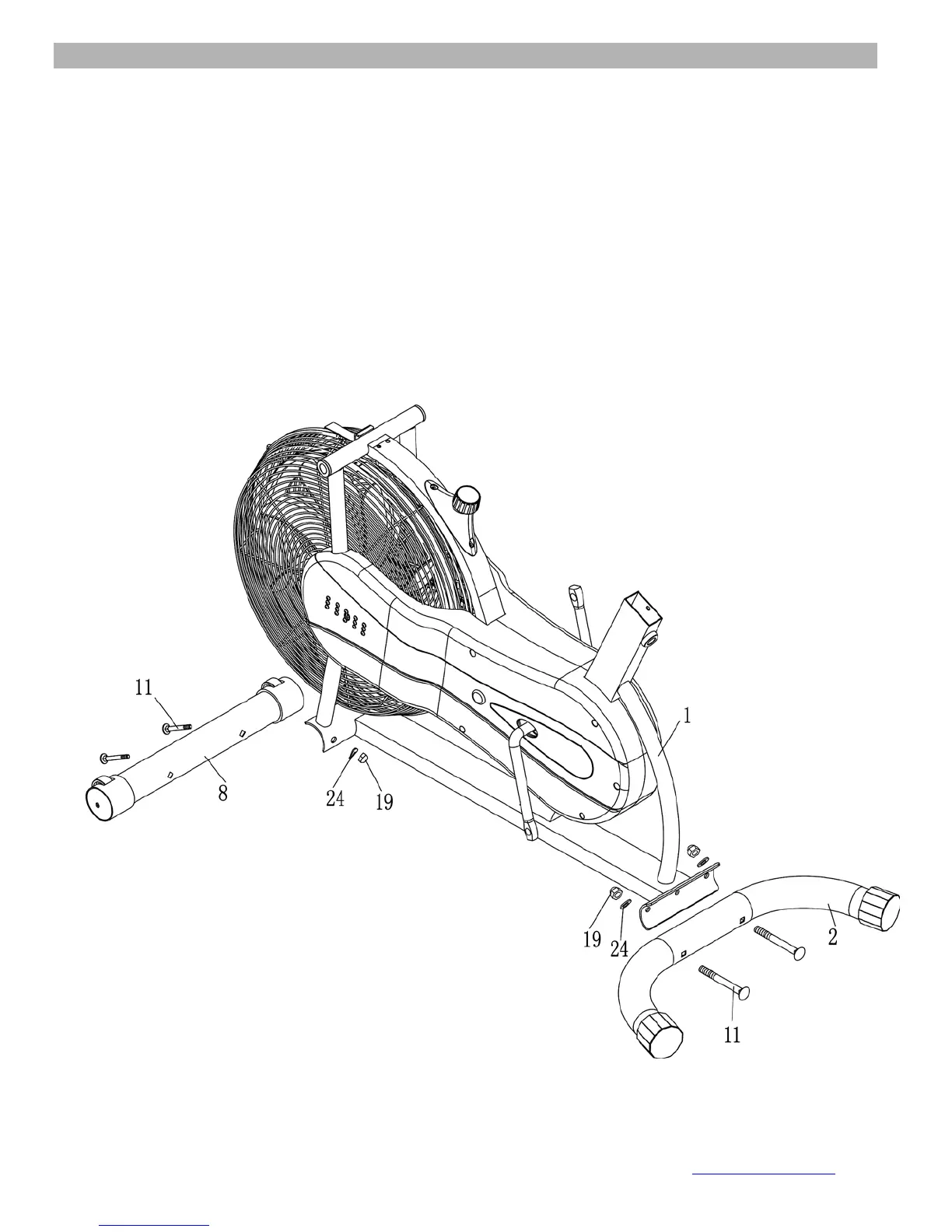

STEP-1
A.) Attach the Front Stabilizer (#8) to the Main Frame (#1). Secure it with two M8 x 2 ⅜” Carriage Bolts
(#11), two Ø ⅝” x Ø ⅜” Curved Washers (#24), and two Domed Nuts (#19).
B.) Attach the Rear Stabilizer (#3) to the Main Frame (#1). Secure it with two M8 x 2 ⅜” Carriage Bolts
(#11), two Ø ⅝” x Ø ⅜” Curved Washers (#24), and two Domed Nuts (#19).
To Next Page
