Impex Olympic Cage - Page 11

STEP 3 (See Diagram 3)
A.) Place the Backrest Board (#45) onto the two Backrest Supports (#38). Secure it with
four M8 x 1 5/8” Allen Bolts (#99) and ∅ 5/8” Washers (#79).
B.) Place the Seat (#44) onto the Seat Bracket (#36). Secure it with four M8 x 1 5/8” Allen
Bolts (#99) and ∅ 5/8” Washers (#79).

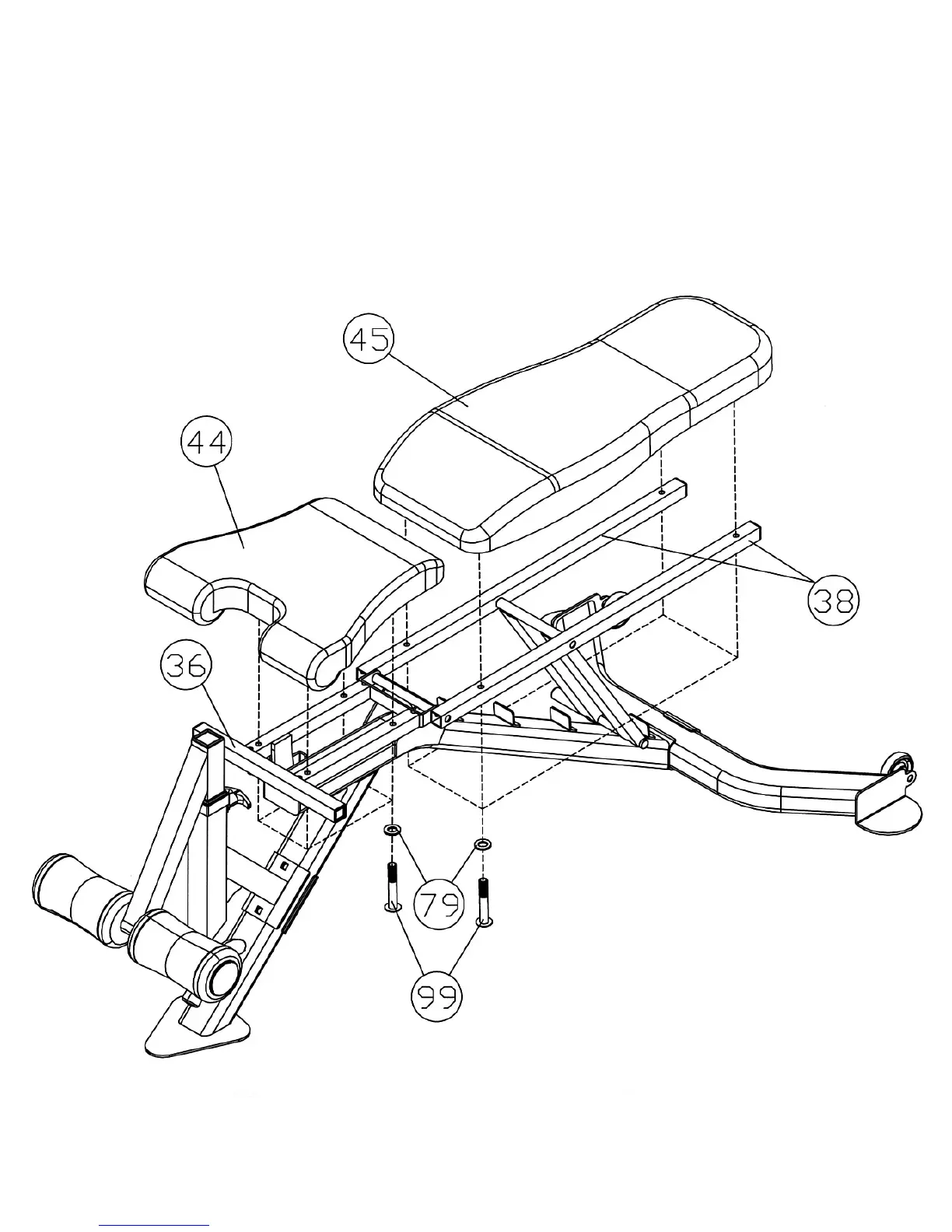

DIAGRAM 3
10
