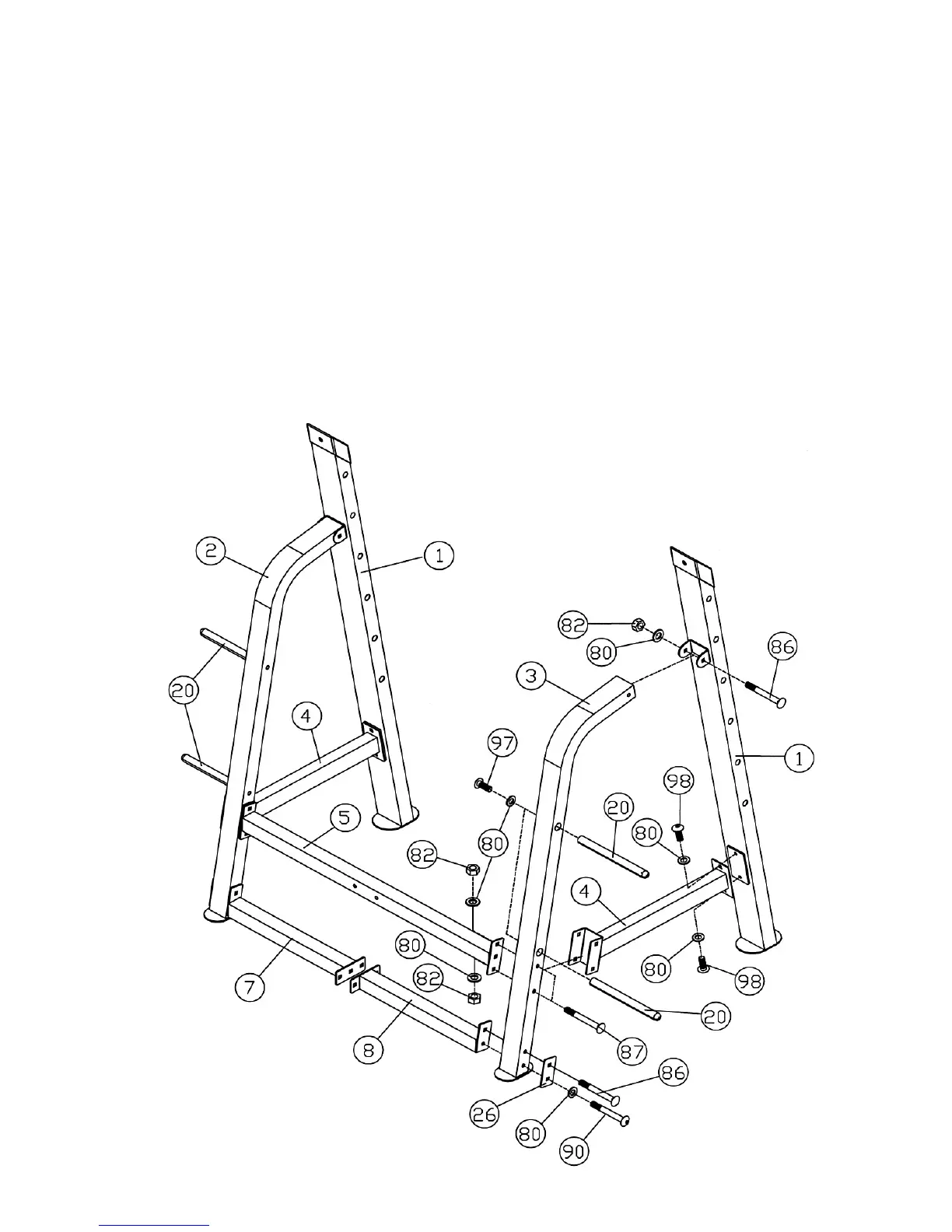

STEP 4 (See Diagram 4)
A.) Do not tighten the Nuts and Bolts until instructed to do so.
B.) Attach the Right Support (#3) to an Upright Beam (#1). Secure it with one M10 x 3 ½”
Carriage Bolt (#86), ∅ ¾” Washer (#80) and M10 Aircraft Nut (#82). Attach the Side
Support (#4) to the Upright Beam. Secure it with two M10 x 5/8” Allen Bolts (#98) and ∅ ¾”
Washers (#80). Attach the other end to the Right Support. Repeat the same step to install
the Left Support (#2) and Side Support to another Upright Beam.
C.) Connect the Left & Right Supports (#2 & #3) in the mid-span with a Cross Brace (#5).
Secure each end with two M10 x 3 ¾” Carriage Bolts (#87), ∅ ¾” Washers (#80) and M10
Aircraft Nuts (#82).
D.) Attach the Rear Right Stabilizer (#8) to the Right Support (#3). Secure the upper hole with
one M10 x 3 ½” Carriage Bolt (#86), ∅ ¾” Washer (#80), 4” Bracket (#26) and M10 Aircraft
Nut (#82).
E.) Secure the lower hole with a M10 x 3 ½” Allen Bolt (#90) and ∅ ¾” Washer (#80). Repeat
the same steps E & D to install the Left Rear Stabilizer (#7) to the Left Support (#2).
F.) Insert four Weight Posts (#20) into the holes on the Left & Right Supports. Secure each
Post with one M10 x ¾” Allen Bolt (#97) and ∅ ¾” Washer (#80).
11
