STEP 8 (See Diagram 8)
A.) Attach a Short Chain (#46) to the Upper Cable (#31) by using a C-clip (#50). Attach
the Lat Bar (#14) to the Chain by using another C-clip. Adjust the length of the Chain
to obtain desired Lat Bar exercise.
B.) Attach a Long Chain (#45) to the Lower Cable (#32) by using a C-clip (#50). Attach
the Arm Curl Handle (#15) to the Chain by using another C-clip. Adjust the length of
the Chain to obtain the desired Arm Curl exercise. Remove the Chain and the Handle
when using the Leg Developer.
C.) Attach Left & Right Weight Stack Covers (#21 & #22) to the Upper Frame (#4), Main
Base Frame (#8), and Rear Base Frame (#2). Secure them with six M10 x 5/8” Allen
Bolts (#71) and ∅ ¾” Washers (#80).
D.) From the back of the Covers, secure the two covers together with four M5 x 3/8”
Philips Screws and M5 Aircraft Nuts (#38).

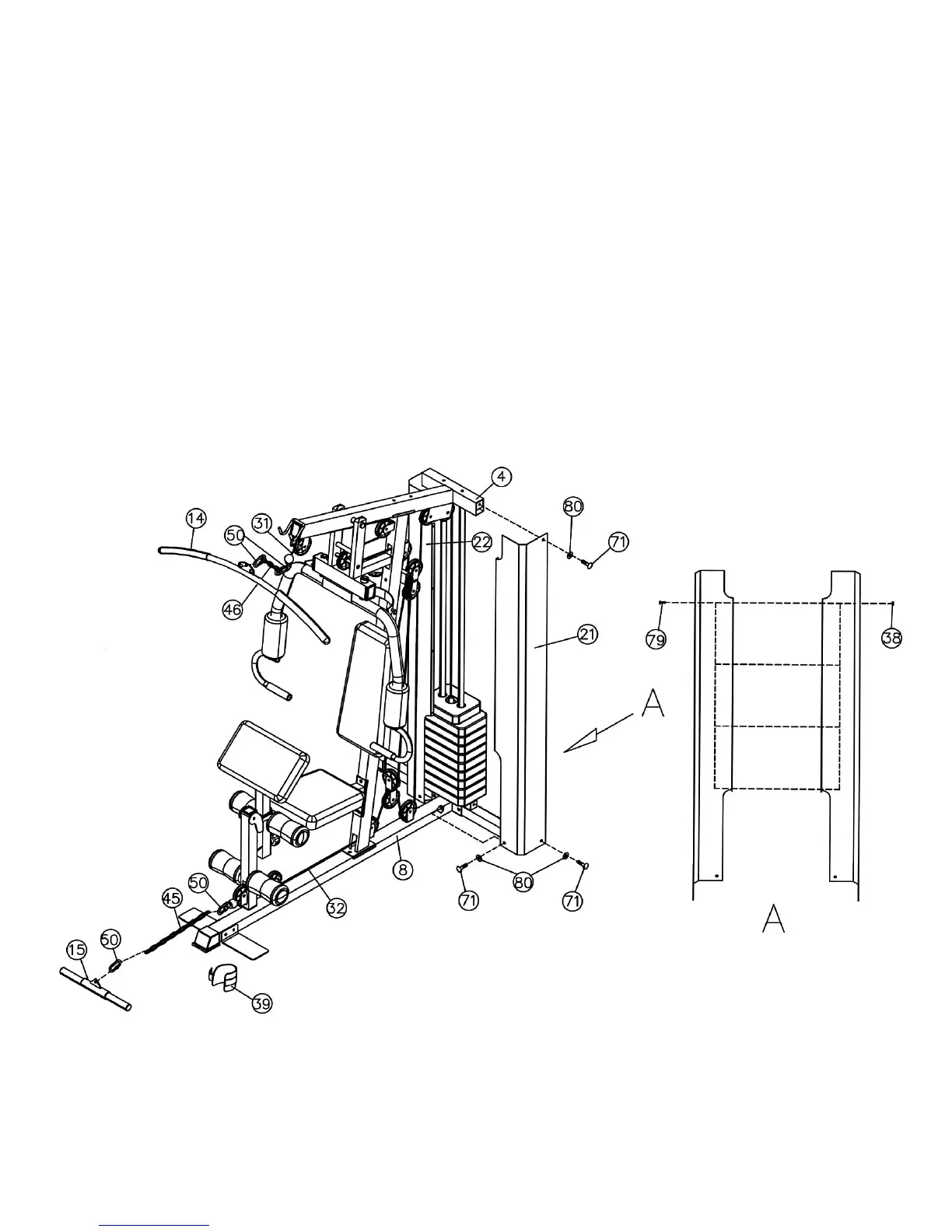

DIAGRAM 8
17
To Next Page
