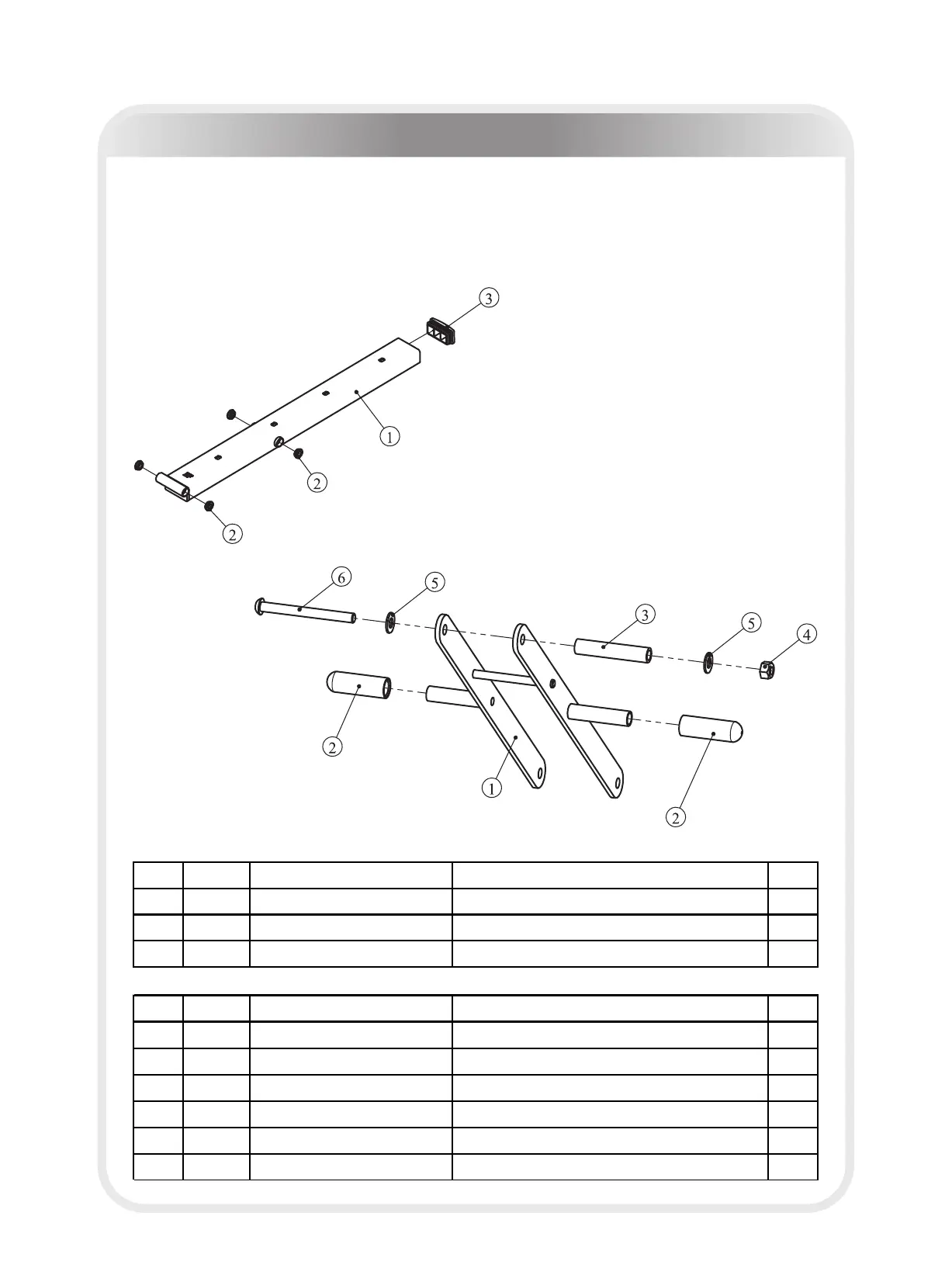

Exploded View and Parts List

Back Pad Support ASSY Adjustable Back Pad

Support ASSY

ItemNo.

Grade No. Part No. Description QTY

1 5.1 EF76040500 Back Pad Support 1

2 5.2 PBE10001 Spacer Φ12.2*Φ21.8*8 4

3 5.3 KFFID2200 Plug □40*80 1

ItemNo.

Grade No. Part No. Description QTY

1 6.1 EF76040600 Adjustable Back Pad Support 1

2 6.2 PBF70001P1805C Small Grip 2

3 6.3 KPSFID0700 Nylon Spacer 1

4 6.4 NM12DHS2 Nylon Lock Nut M12 1

5 6.5 DQ12DHS2B Flat Washer Φ13*Φ26*2 2

6 6.6 PNLM12*125DHS2 Button Head Cap Screw M12*125 1
