Impulse IF2011 - Shaped Base and Seat Pad Support Parts

─ 9 ─

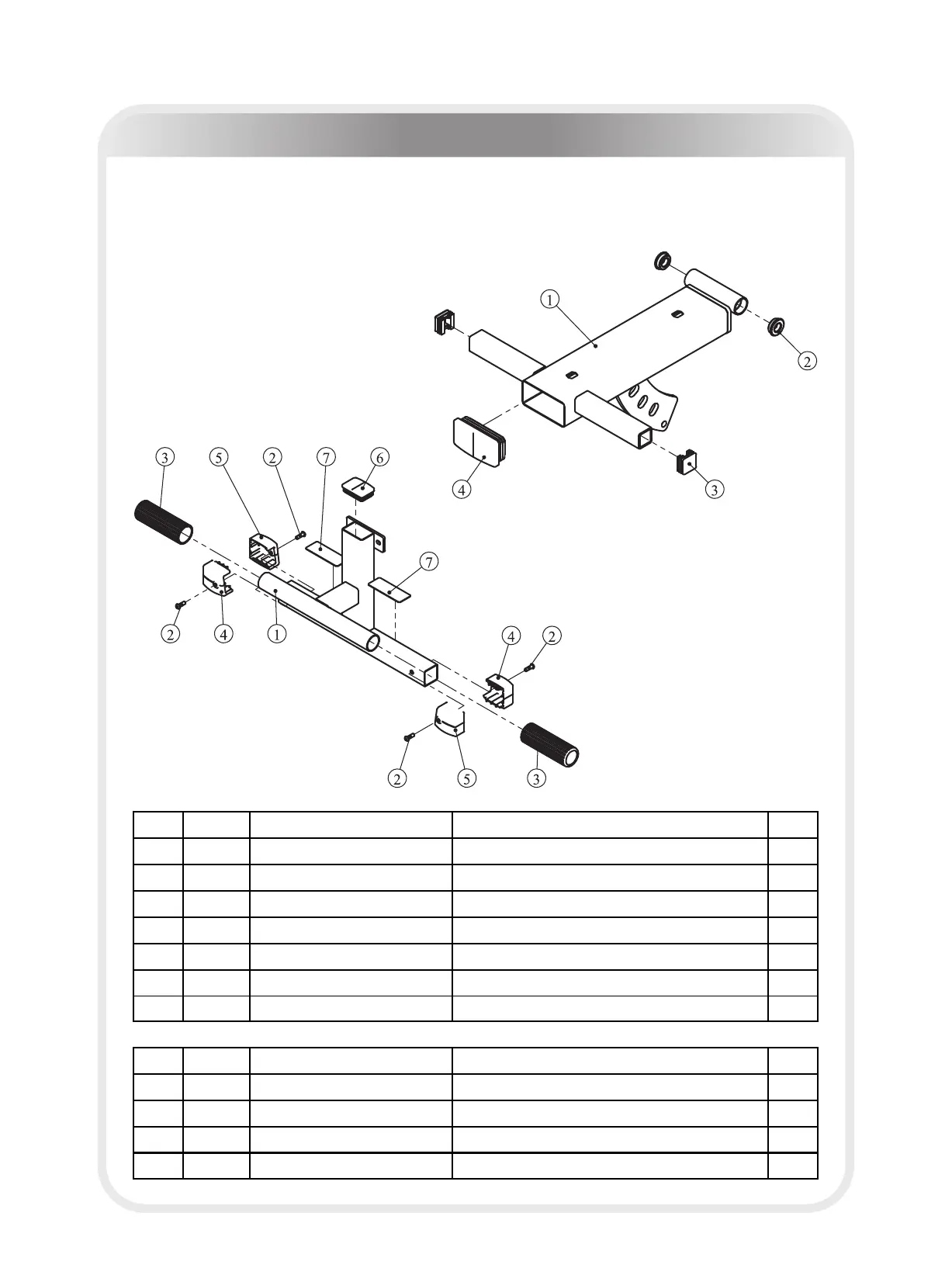

Exploded View and Parts List
Shaped Base ASSY Seat Pad Support ASSY
ItemNo.
Grade No. Part No. Description QTY
1 3.1 IF2011B0300 Shaped Base 1
2 3.2 PNLM8*25DHS2 Button Head Cap Screw M8*25 4
3 3.3 IT80125400 Sleeve 2
4 3.4 IFFID2000 Foot Cap □50.8 2
5 3.5 IFFID3900 Foot Cap 2 □50.8 2
6 3.6 KFFID2800 Plug
□
50.8*76.2 1
7 3.7 EF76302500 Non Skid Pid 2
ItemNo.
Grade No. Part No. Description QTY
1 4.1 EF76300400 Seat Pad Support 1
2 4.2 PBE10001 Spacer Φ12.2*Φ21.8*8 2
3 4.3 PBF30003 Plug □25 2
4 4.4 KFFID2200 Plug □40*80 1
