Impulse IF2011 - Main Frame and Rear Base Parts

─ 8 ─

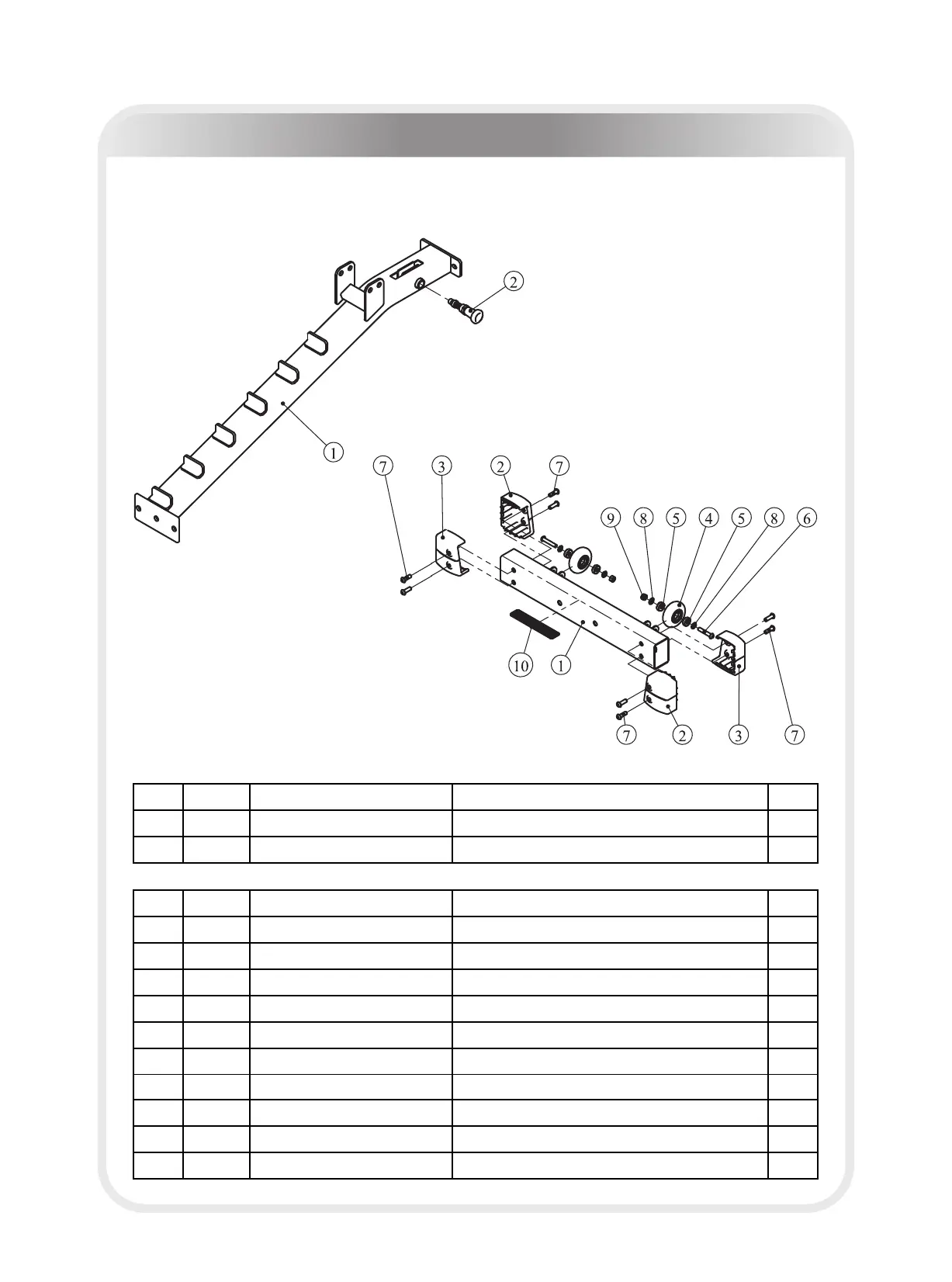

Exploded View and Parts List
Main Frame ASSY
Rear Base ASSY
ItemNo.
Grade No. Part No. Description QTY
1 1.1 EF76300100 Main Frame 1
2 1.2 IT9322G0500P201C Pop Pin 1
ItemNo.
Grade No. Part No. Description QTY
1 2.1 KFFID0300 Rear Base 1
2 2.2 IFFID1600 Foot Cap □50.8*76.2 2
3 2.3 IFFID4000 Foot Cap 2 □50.8*76.2 2
4 2.4 DP86703101B Wheel 2
5 2.5 AT4804000 Spacer Φ22*Φ8.2*7.5 4
6 2.6 PNLM8*45DHS2 Button Head Cap Screw M8*45 2
7 2.7 PNLM8*25DHS2 Button Head Cap Screw M8*25 8
8 2.8 GB958DHS2 Flat Washer Φ9*Φ16*1.6 4
9 2.9 NM8DHS2 Nylon Lock Nut M8 2
10 2.10 PBG80003 Rubber Pad 1
