Assembly
26
STEP 5

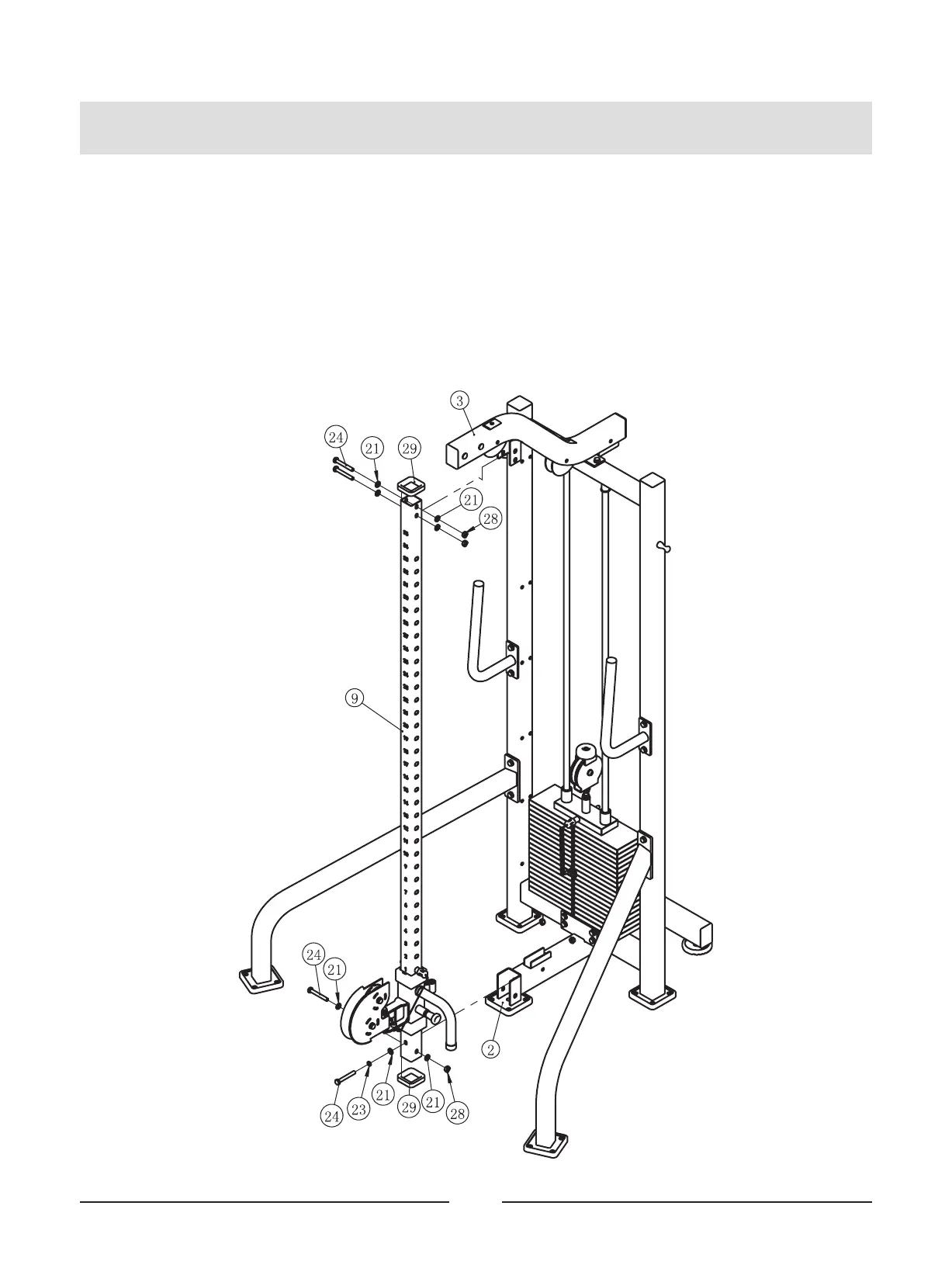

1. Attach two Stop Rubber Bumper (#29) to the Adjustment Column ASSY (#9).
2. Attach the Adjustment Column ASSY (#9) to the Bottom Cross Frame ASSY (#2) and
the Top Cross Frame ASSY (#3) using:
four M10*75 HHB (#24) three M10 Nylon Lock Nut (#28)
seven Φ11*Φ20*2 Flat Washer (#21) one Spring Washer Φ8 (#22)
Note: Hand Tighten Bolts and Nylon Lock Nuts until Machine is Fully Assemble.
To Next Page
