Assembly
27
STEP 6
1. Attach two 4.5" Pulley (#14) and one 3.5" Pulley (#15) to the Top Cross Frame ASSY
(#3) using:
three M10*65 HHB (#26) three M10 Nylon Lock Nut (#28)
six Φ11*Φ20*2 Flat Washer (#21)
2. Attach two 3.5" Pulley (#15) to the Bottom Cross Frame ASSY (#2) using:
two M10*65 HHB (#26) two M10 Nylon Lock Nut (#28)
two Φ11*Φ20*2 Flat Washer (#21)

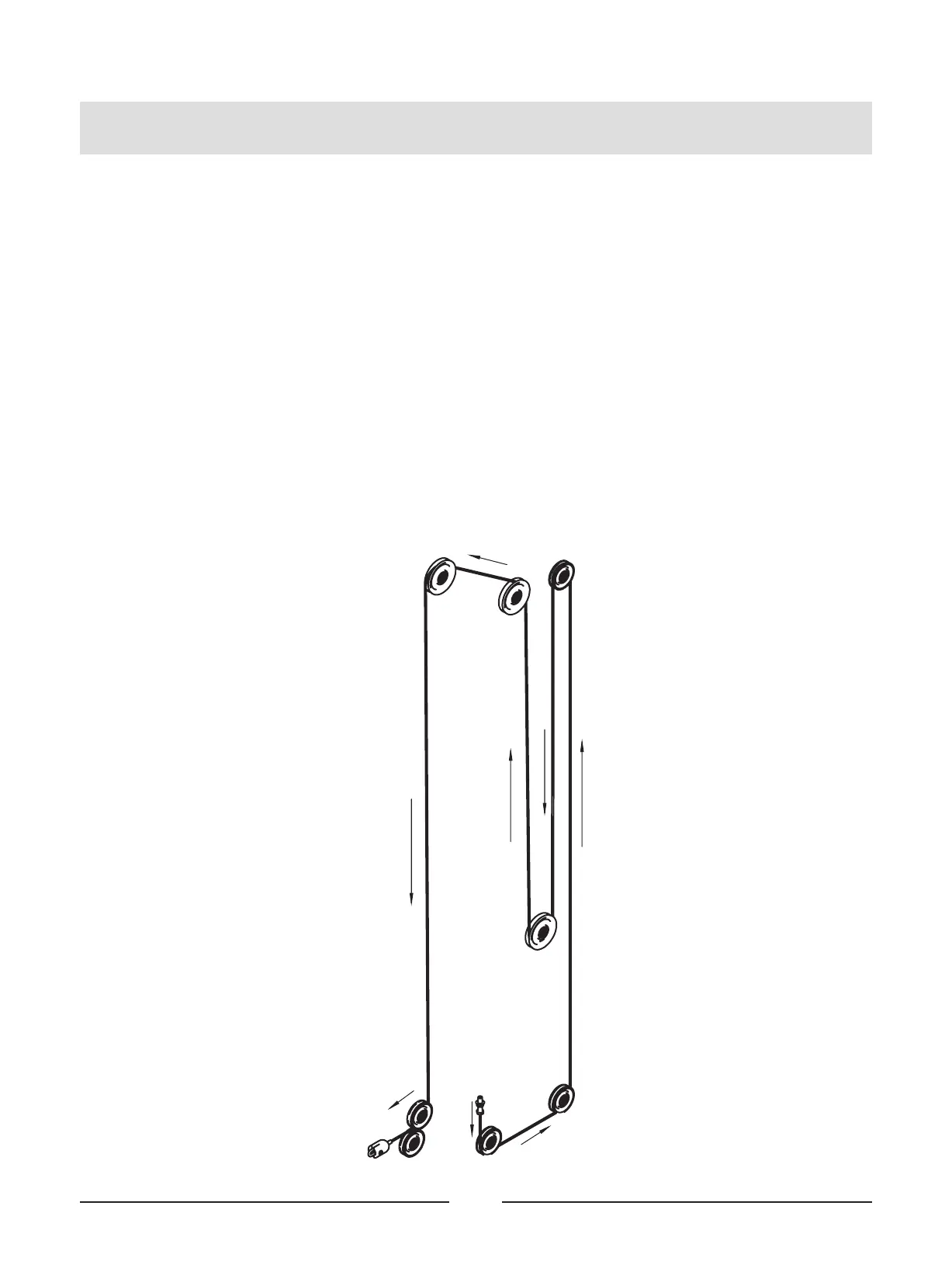

3. Attach the Cable ASSY (#11) according to the view.
Note:
1. Before attach the cable, you should Unlock the Bolt using Hex Key S=3/16"(#32).
2. Pay attention to the position.
3. Hand Tighten Bolts and Nylon Lock Nuts until Machine is Fully Assemble.
To Next Page
