Impulse IF9325 User Manual

Assembly
29

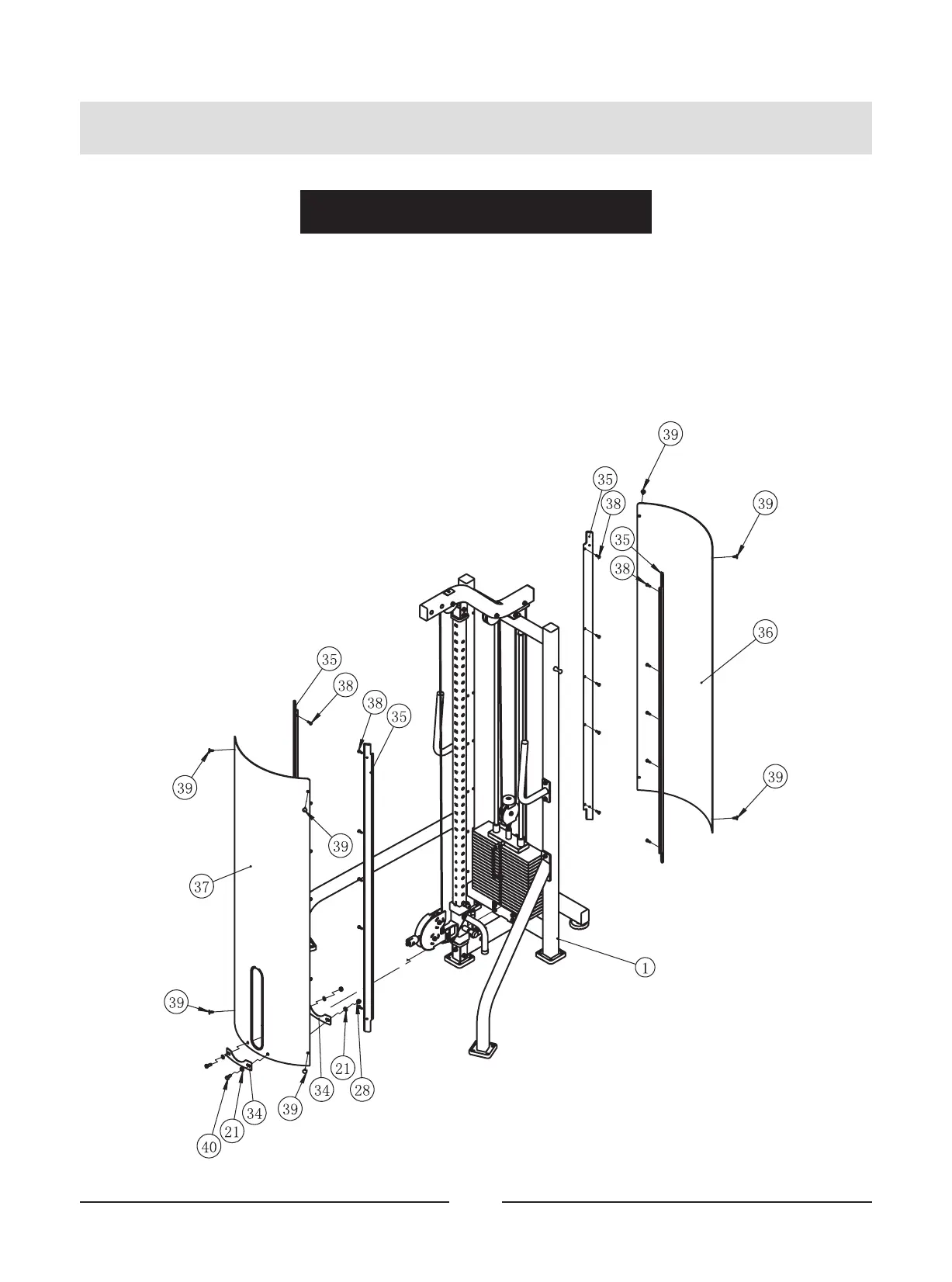

STEP 7
1. Attach two Curved Plate (#34) to the Long Shroud ASSY (#37) using:
two M10*25 HHB (#40) two M10 Nylon Lock Nut (#28)
four Φ11*Φ20*2 Flat Washer (#21)
2. Attach the Long Shroud Retainer Plate (#35) to the Main Frame ASSY (#1) using:
twenty Cross Disc Self Tapping Screw ST4.2*16 (#38)
3. Attach the Long Shroud ASSY (#37) and the Long Rear Shroud (#36) to the Long
Shroud Retainer Plate (#35) using:
eight Button(#39)
Note: Wrench Tighten Bolts and Nylon Lock Nuts.
Full Shroud
