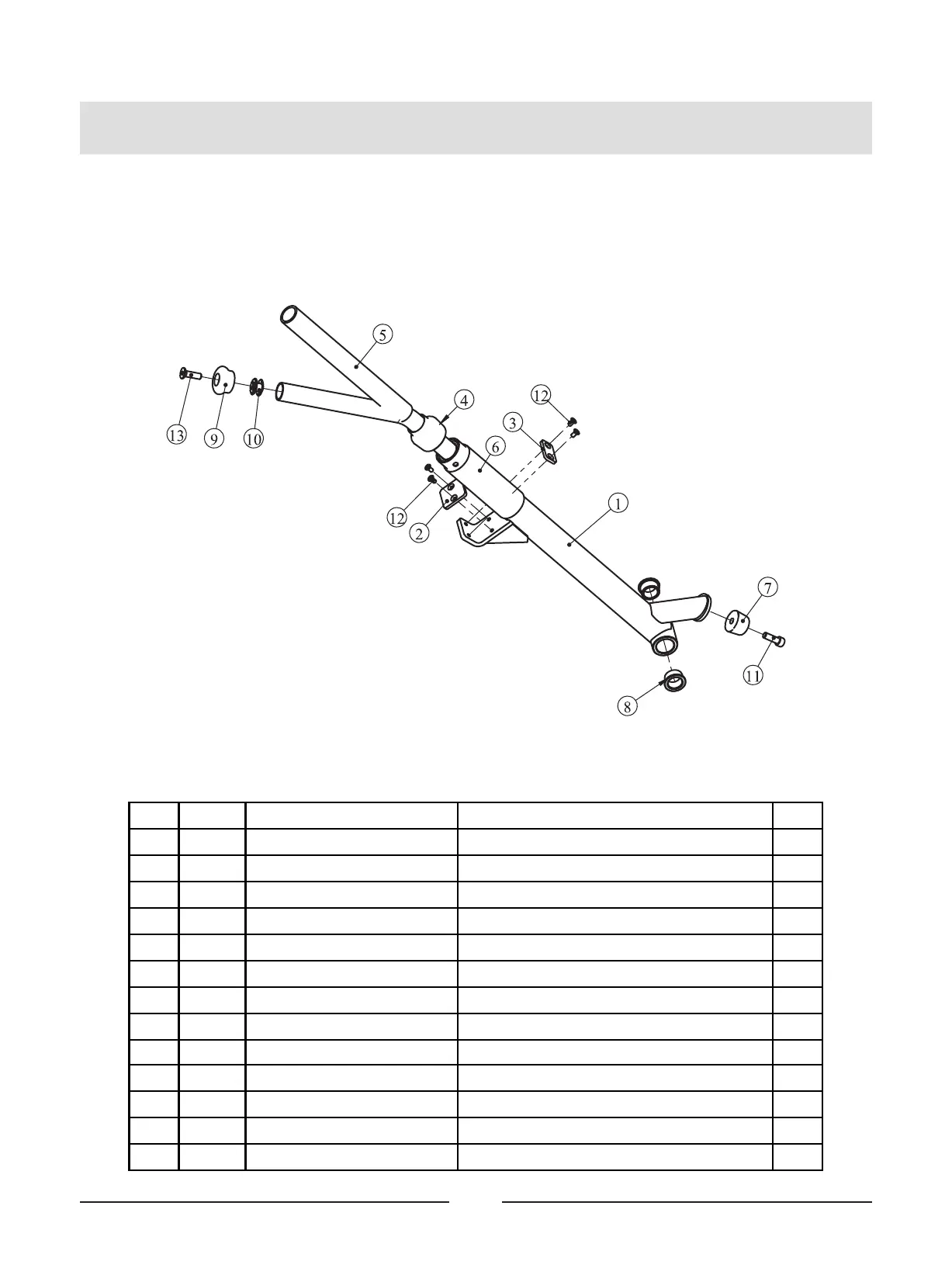

Exploded View and Parts List

Safety Frame ASSY

ItemNo. Grade No.

Part No. Description QTY

1 14.1 SL70380600 Safety Frame 1

2 14.2 SL70383200 Plastic Board 1 1

3 14.3 SL70383300 Plastic Board 2 1

4 14.4 RL81013400 Connective Sleeve 1

5 14.5 026-01PL0235-11 Grip Φ36*Φ29*338 1

6 14.6 CGH4501300 Plastic Sleeve 1

7 14.7 PBG10002 Rubber Bumper 1

8 14.8 M02502000 Bush Φ38*Φ32*Φ25.4*18 2

9 14.9 IT90122000 Aluminum Grip Cap Φ32 1

10 14.10 IF81212700 Nut M10 1

11 14.11 GB70M10*30DHS20 Socket Head Cap Screw M10*30 1

12 14.12 GB819M6*12DHS2

Cross Recessed Countersunk Head Screw M6*12

13 14.13 CNLM10*35*35DS20 Flat Head Cap Screw M10*35 1
