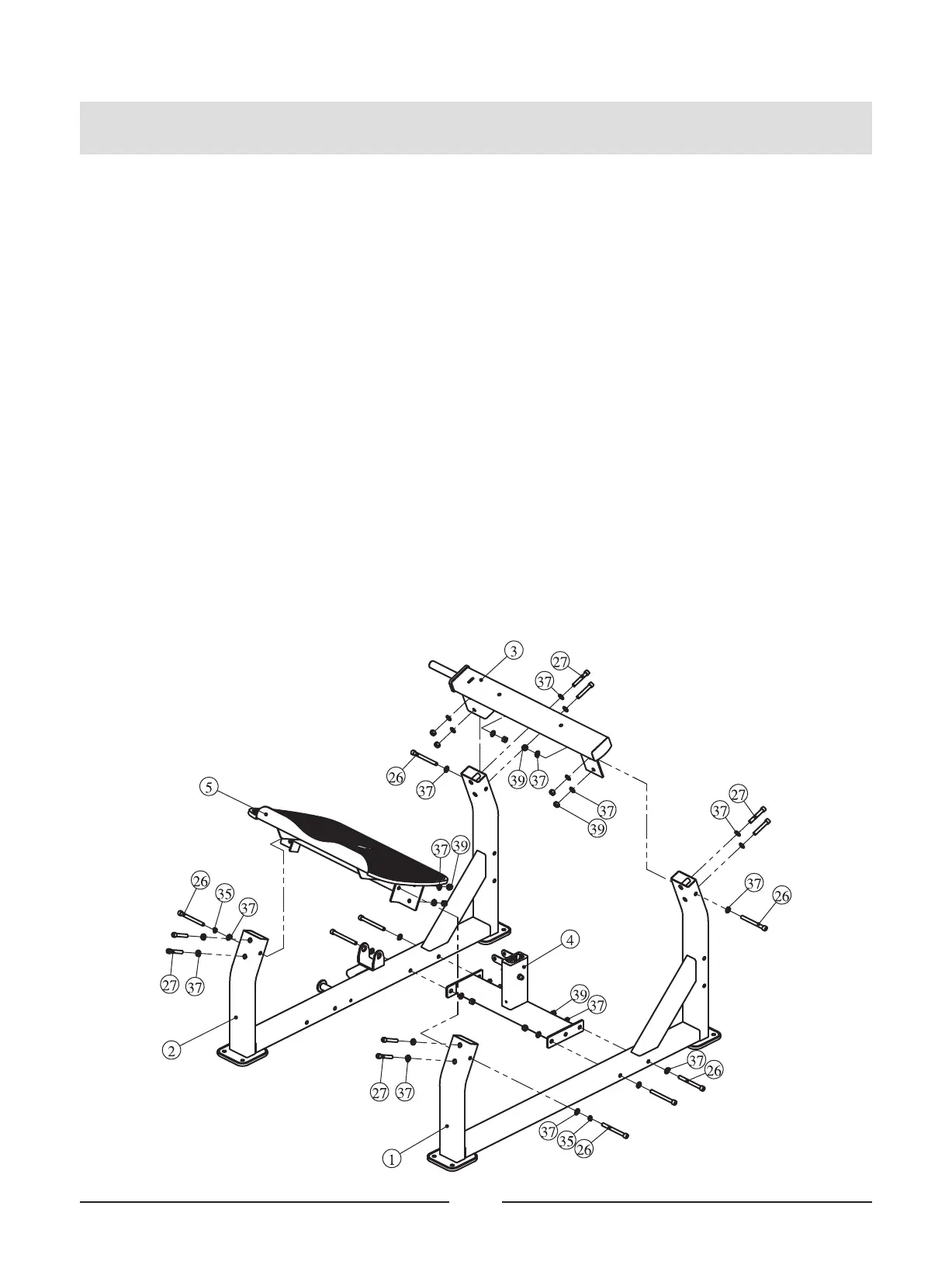

STEP 1
1. Attach the Seat Pad Frame ASSY (#4) to the Floor Stand Frame 1 ASSY (#1) and the
Floor Stand Frame 2 ASSY (#2) using:
four M12*125 SHCS (#26) eight Φ13*Φ24*2.5 Flat Washer (#37)
four M12 Nylon Lock Nut (#39)
2. Attach the Back Pad Frame ASSY (#3) to the Floor Stand Frame 1 ASSY (#1) and the
Floor Stand Frame 2 ASSY (#2) using:
two M12*125 SHCS (#26) four M12*75 SHCS (#27)
twelve Φ13*Φ24*2.5 Flat Washer (#37) six M12 Nylon Lock Nut (#39)
3. Attach the Pedal Plate Frame ASSY (#5) to the Floor Stand Frame 1 ASSY (#1) and the
Floor Stand Frame 2 ASSY (#2) using:
two M12*125 SHCS (#26) four M12*75 SHCS (#27)
ten Φ13*Φ24*2.5 Flat Washer (#37) two Φ12 Spring Washer (#35)
four M12 Nylon Lock Nut (#39)
Note: Wrench Tighten Bolts and Nylon Lock Nuts.
Assembly
17
