Assembly
18

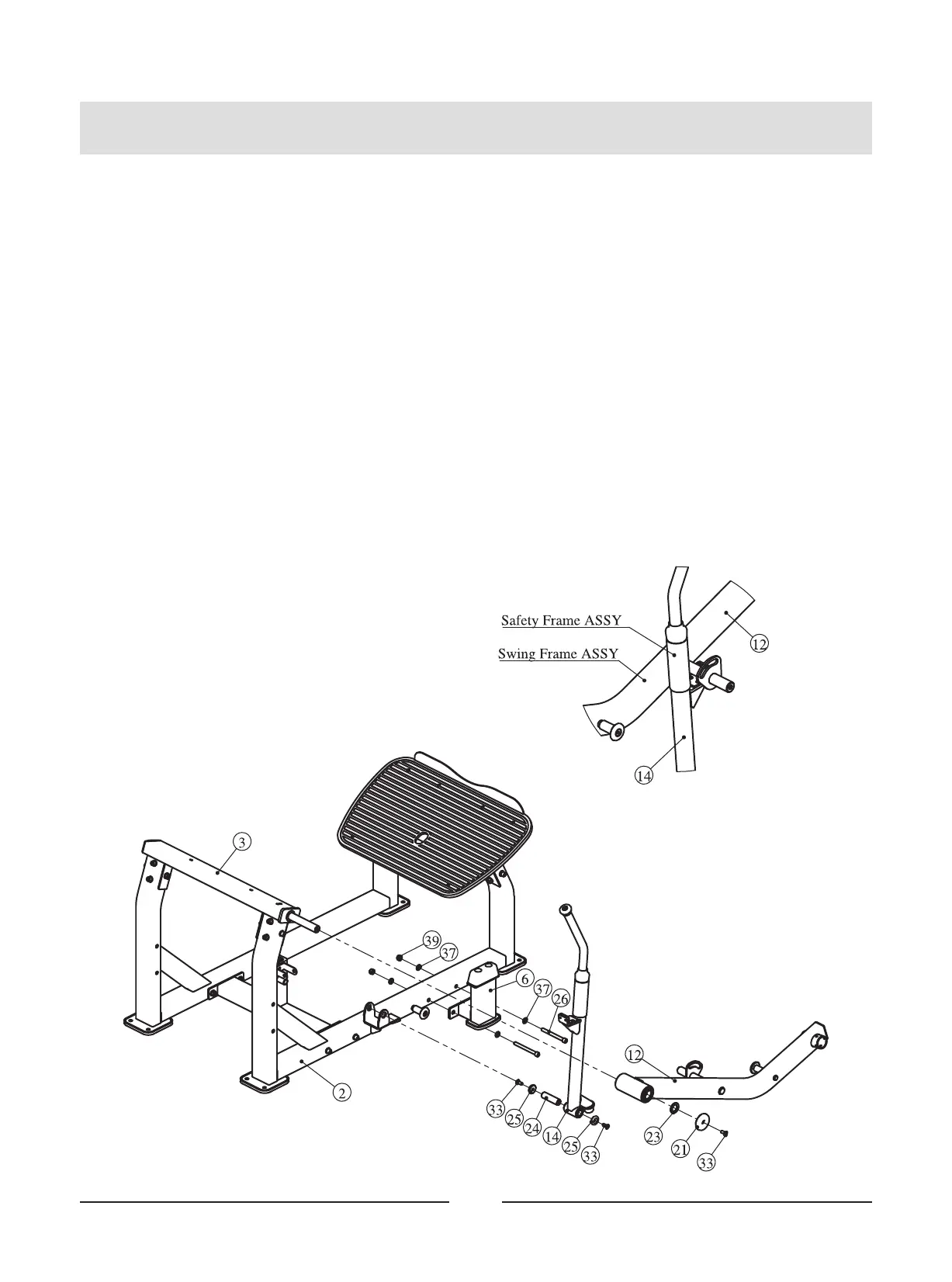

STEP 2
1. Attach the Safety Frame ASSY (#14) to the Floor Stand Frame 2 ASSY (#2) using:
one Φ25.4*76 Axis (#24) two Φ38*Φ10.5*8 Aluminum Cap (#25)
two M10*25 FHCS (#33)
2. Attach the Bottom Support Frame ASSY (#6) to the Floor Stand Frame 2 ASSY (#2)
using:
two M12*125 SHCS (#26) four Φ13*Φ24*2.5 Flat Washer (#37)
two M12 Nylon Lock Nut (#39)
3. Attach the Swing Frame ASSY (#12) to the Back Pad Frame ASSY (#3) using:
one Φ46*Φ30.5*3 Ring (#23) one Φ72*14.4 Aluminum Cap (#21)
one M10*25 FHCS (#33)
Note: 1. The Swing Frame ASSY (#12) above the Safety Frame ASSY (#14).
2. Wrench Tighten Bolts and Nylon Lock Nuts.
