Assembly
19

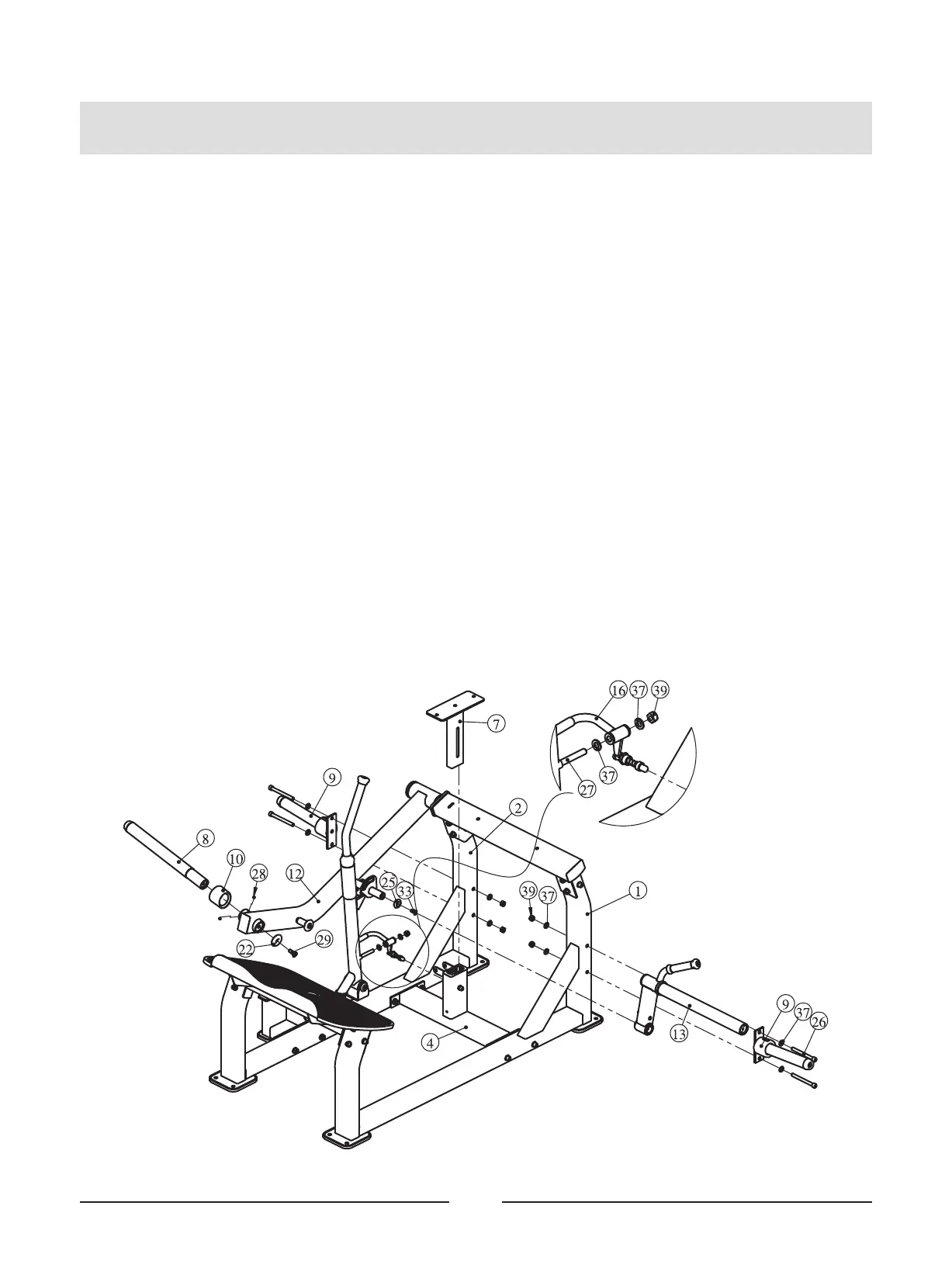

STEP 3
1. Attach the Adjustable Handle Frame ASSY (#16) to the Seat Pad Frame ASSY (#4) using:
one M12*75 SHCS (#27) two Φ13*Φ24*2.5 Flat Washer (#37)
one M12 Nylon Lock Nut (#39)
2. Attach the Adjustable Seat Pad Frame (#7) to the Seat Pad Frame ASSY (#4).
3. Attach the Foam Frame ASSY (#13) to the Swing Frame ASSY (#12) using:
one Φ38*Φ10.5*8 Aluminum Cap (#25) one M10*25 FHCS (#33)
4. Attach the Long Weitht Horn Frame ASSY (#8) to the Swing Frame ASSY (#12) using:
one Φ54*Φ12.5*10.6 Aluminum Cap (#22) one M12*50 FHCS (#29)
two M8*6 Hexagon socket set screws (#28) one bumper (#10)
5. Attach two Short Weitht Horn Frame ASSY (#9) to the Floor Stand Frame 1 ASSY (#1)
and the Floor Stand Frame 2 ASSY(#2) using:
four M12*125 SHCS (#26) eight Φ13*Φ24*2.5 Flat Washer (#37)
four M12 Nylon Lock Nut (#39)
Note: Wrench Tighten Bolts and Nylon Lock Nuts.
