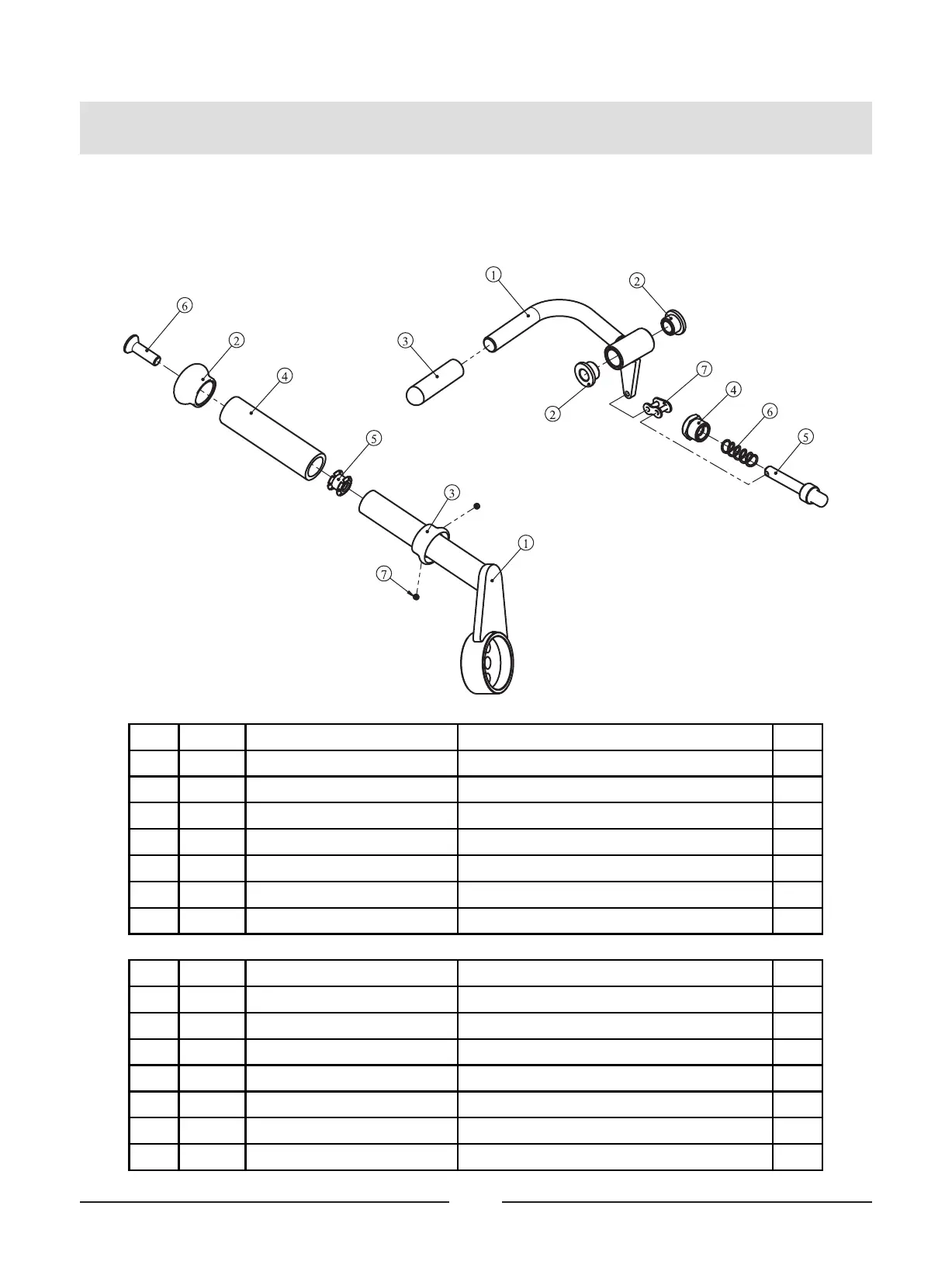

Exploded View and Parts List

Outside Handle Frame ASSY Adjustable Handle

Frame ASSY

ItemNo. Grade No.

Part No. Description QTY

1 15.1 SL70380600 Outside Handle Frame 1

2 15.2 IT90102100 Aluminum Grip Cap Φ25 1

3 15.3 IT90102200 Aluminum Grip Ring Φ25 1

4 15.4 026-01PL0206-5 Grip STΦ31*Φ24*111 1

5 15.5 IF81165000 Nut M10 1

6 15.6 CNLM10*35*35DS20 Flat Head Cap Screw M10*35 1

7 15.7 YZGB7710-32*3.2N19 Socket Set Screw 10-32UNF*3.2 2

ItemNo. Grade No.

Part No. Description QTY

1 16.1 SL70381200 Adjustable Handle Frame 1

2 16.2 M01402000 Bush Φ25*Φ18*Φ12.2*13 2

3 16.3 CG50001700 Grip DTΦ19*Φ14*70 1

4 16.4 KPS18002701V1 Lock Nut 1

5 16.5 FE97161700 Roll Pin Φ18.2*71 1

6 16.6 CF217903100 Spring Φ13*Φ1.4*38.6 1

7 16.7 GB/T1243-199708BN19 Connecting Shackle P=12.7 1
