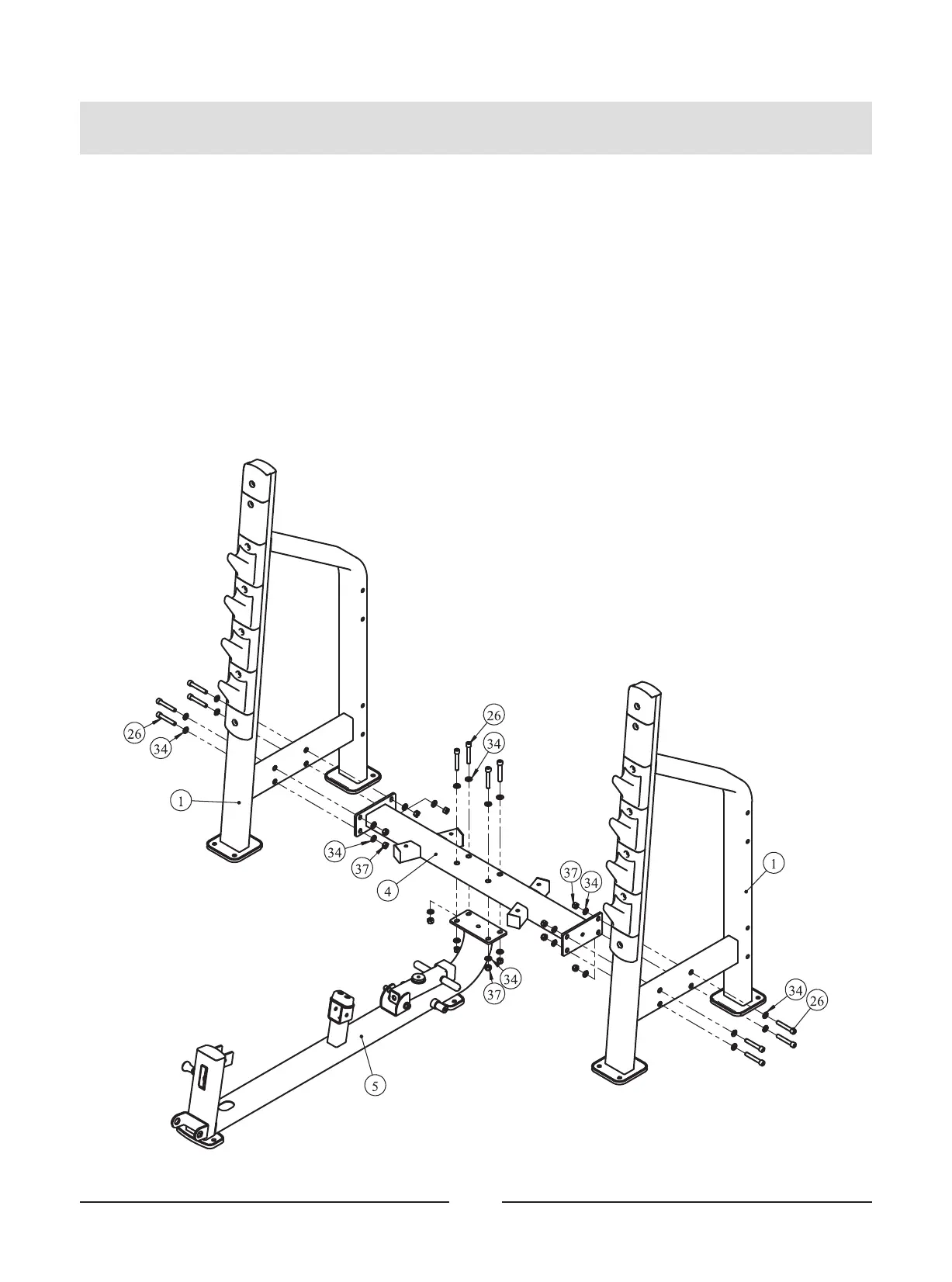

STEP 1
1. Attach the Cross Connection Frame ASSY (#4) to the Main Frame ASSY (#5) using:
four M12*75 SHCS (#26) eightΦ13*Φ24*2.5 Flat Washer (#34)
four M12 Nylon Lock Nut (#37)
2. Attach two Back Frame ASSYS (#1) to the Cross Connection Frame ASSY (#4) using:
eight M12*75 SHCS (#26) sixteen Φ13*Φ24*2.5 Flat Washer (#34)
eight M12 Nylon Lock Nut (#37)
Note: NOT Tighten Bolts and Nylon Lock Nuts.
Assembly
16
To Next Page
