Impulse SL7041 - Exploded View and Parts List

6

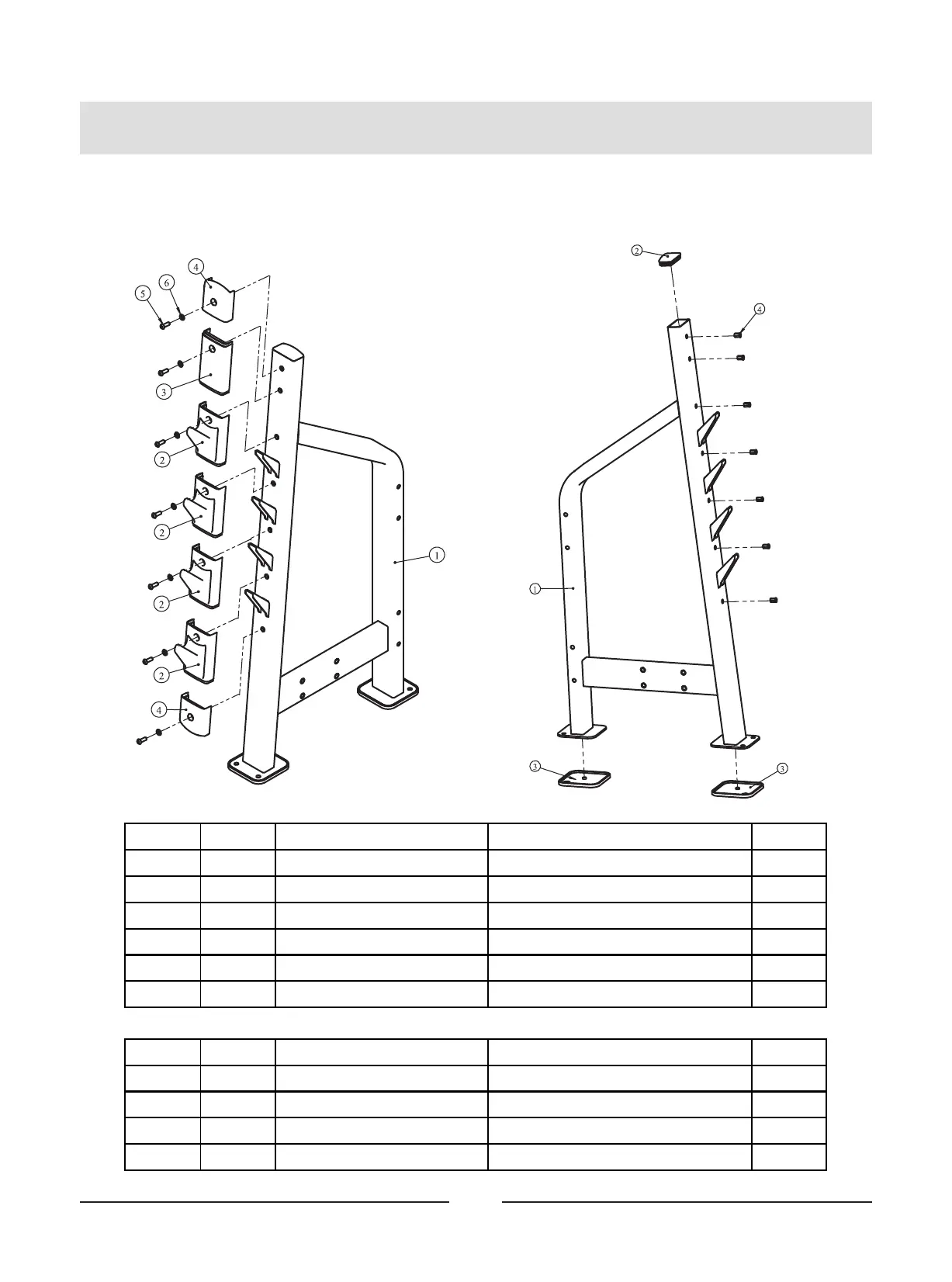

Exploded View and Parts List
Back Frame ASSY
Back Frame SUB ASSY
ItemNo. Grade No. Part No. Description QTY
1 1.1 SL70410100ASSY Back Frame SUB ASSY 1
2 1.2 SL70280700 Hook Protecting Cover 4
3 1.3 SL70280800 Long Protecting Cover 1
4 1.4 SL70280900 Protecting Cover End 2
5 1.5 PNLM10*30DHS20 Button Head Cap ScrewM10*30 7
6 1.6 GB9510DHS2 Flat Washer Φ11*Φ20*2 7
ItemNo. Grade No. Part No. Description QTY
1 1.1.1 SL70410100 Back Frame 1
2 1.1.2 VLP8000 Pipe Plug
□
50*100 1
3 1.1.3 CWRVL0051200 Rubber Foot 2
4 1.1.4 GB17880.5M10*19.5DS17 Rivet Nut M10*19.5 7
