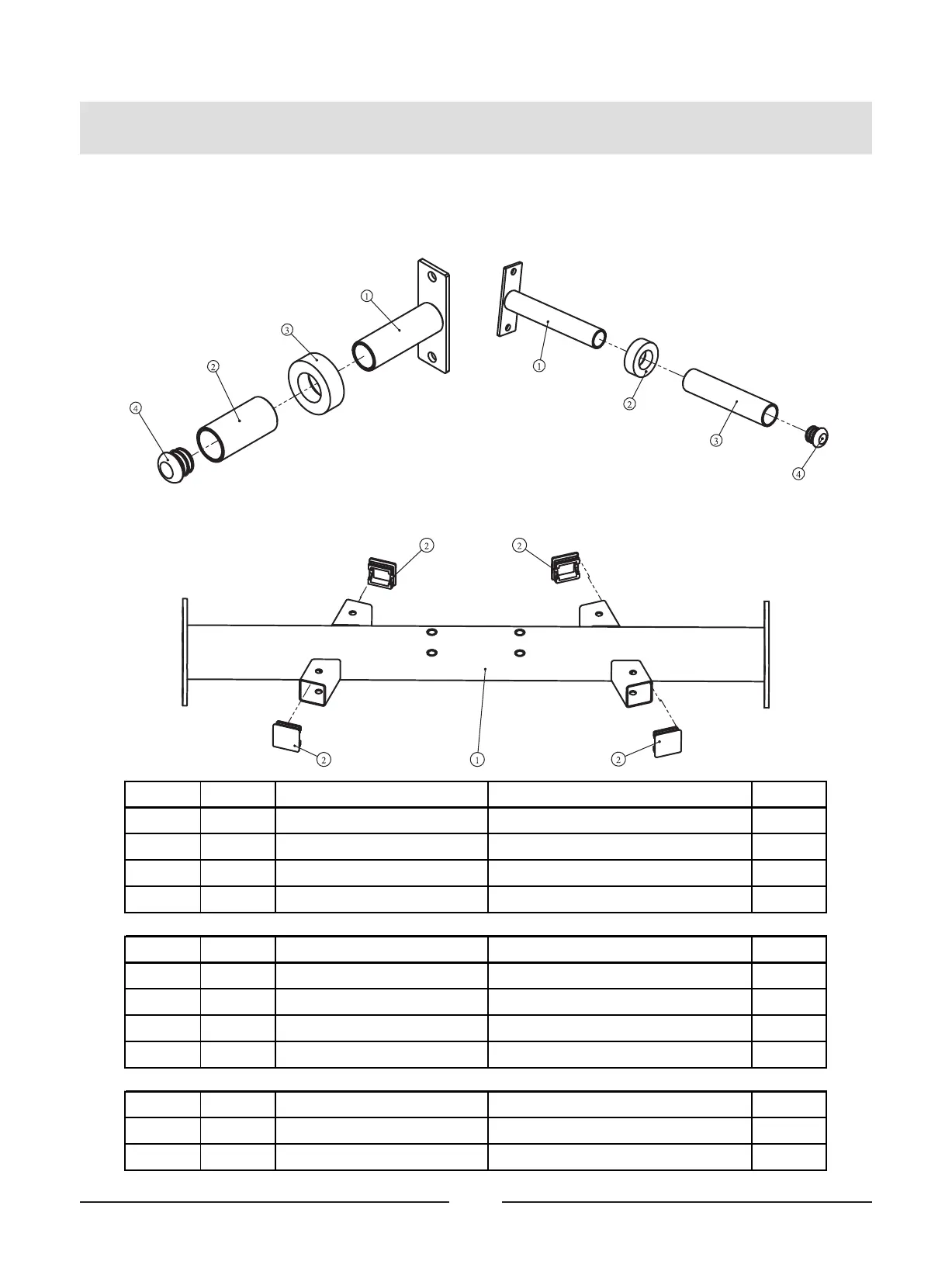

Exploded View and Parts List
Short Weight Storage ASSY
Cross Connection Frame ASSY
Weight Storage ASSY
ItemNo. Grade No. Part No. Description QTY
1 2.1 SL70411000 Short Weight Storage 1
2 2.2 SL70411800 Plastic Pipe Φ49*Φ41.4*99 1
3 2.3 HF985A1500 Weight Horn Rubber Donut Φ76*Φ42*25 1
4 2.4 RF-6012500 Round End Plug Φ41.3*Φ34 1
ItemNo. Grade No. Part No. Description QTY
1 3.1 SL70100300 Weight Storage 1
2 3.2 HF985A1500
Weight Horn Rubber Donut Φ76*Φ42*25
1
3 3.3 SL70100400 Plastic Pipe Φ49*Φ41.4*223 1
4 3.4 RF-6012500 Round End Plug Φ41.3*Φ34 1
ItemNo. Grade No. Part No. Description QTY
1 4.1 SL70410300 Cross Connection Frame 1
2 4.2 M02701000 End Plug
□
50 4
To Next Page
