Impulse SL7041 - Page 8

8

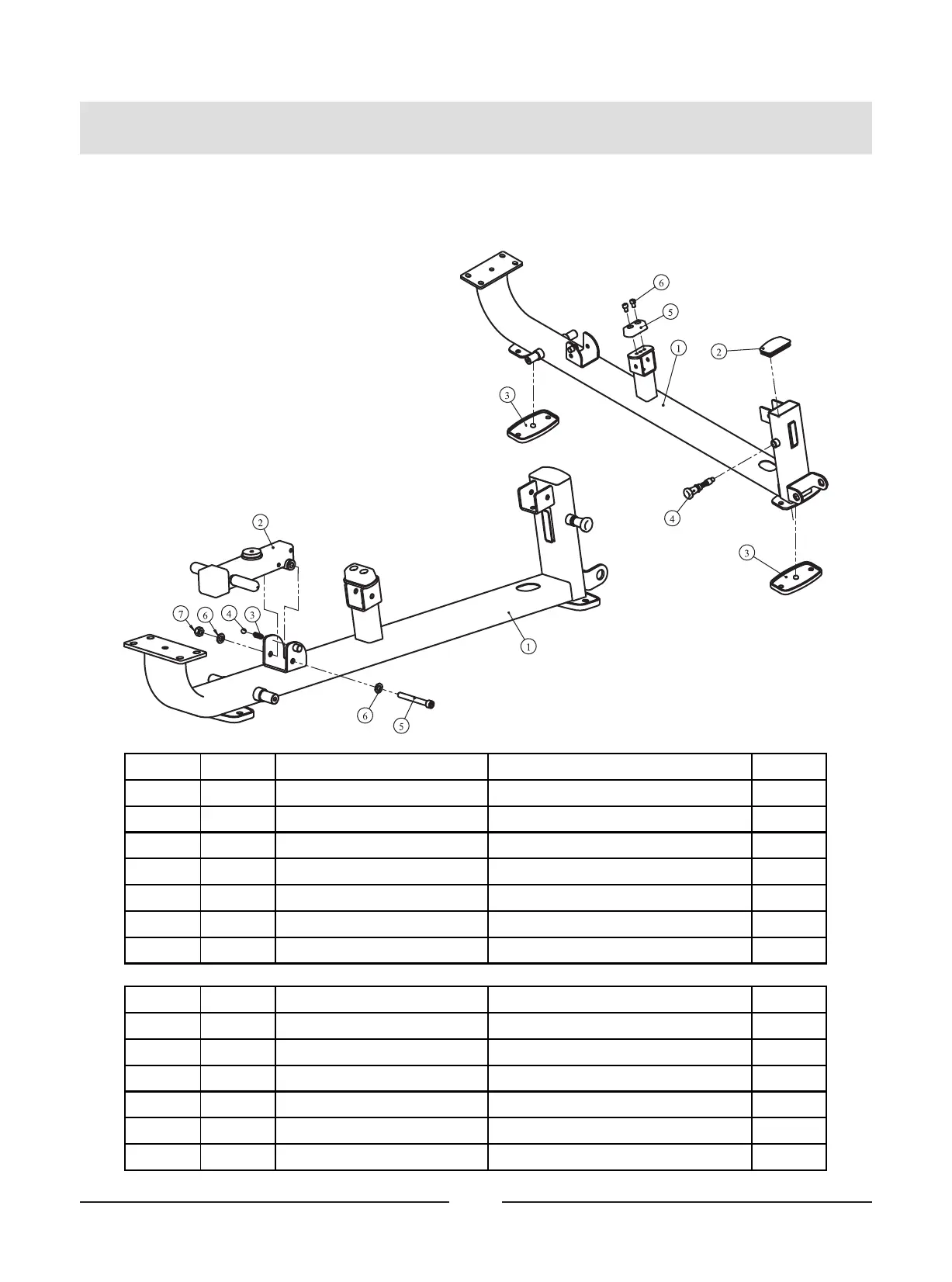

Exploded View and Parts List
Main Frame ASSY Main Frame SUB ASSY
ItemNo. Grade No. Part No. Description QTY
1 5.1 SL70410400ASSY Main Frame SUB ASSY 1
2 5.2 SL70410800ASSY Swinging Support Frame ASSY 1
3 5.3 SL70412500 Spring 1
4 5.4 PBF9001803 Ball 1
5 5.5 GB70M12*100DHS20 Socket Head Cap ScrewM12*100 1
6 5.6 GB9512DHS2 Flat Washer Φ13*Φ24*2.5 2
7 5.7 NM12DHS2 Nylon Lock Nut M12 1
ItemNo. Grade No. Part No. Description QTY
1 5.1.1 SL70410400 Main Frame 1
2 5.1.2 VLP8000 Pipe Plug
□
50*100 1
3 5.1.3 BS81223100 Rubber Foot 2
4 5.1.4 IT95021600 Pin ASSY 1
5 5.1.5 RS17000400 Bumper 1
6 5.1.6 GB70M10*15DS2 Socket Head Cap Screw M10*15 2
