Impulse SL7041 - Page 9

9

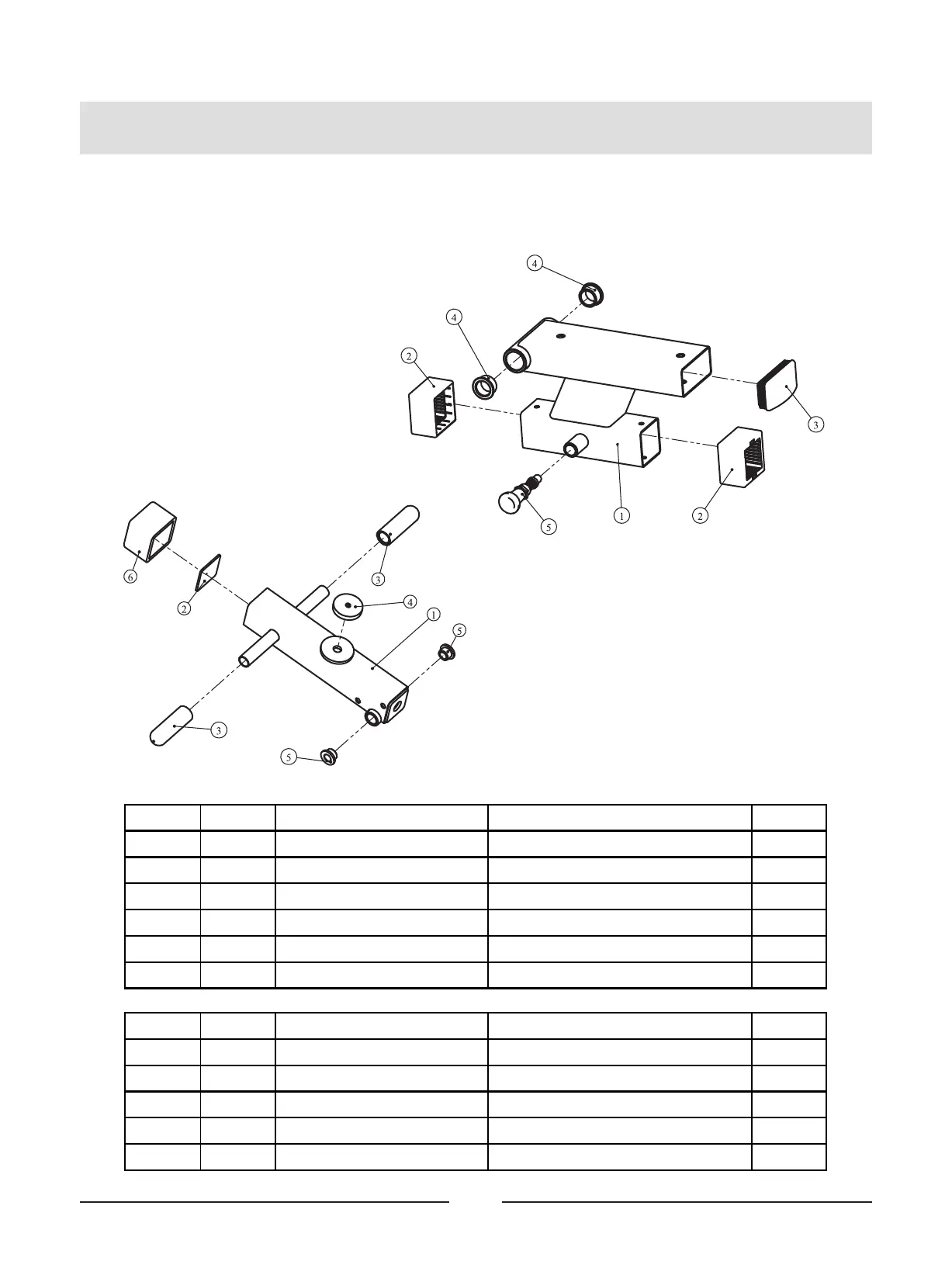

Exploded View and Parts List
Swinging Support
Frame ASSY
Sliding Rack ASSY
ItemNo. Grade No. Part No. Description QTY
1 5.2.1 SL70410800 Swinging Support Frame 1
2 5.2.2 CHBRUTEX0703 The Seal Plate 1
3 5.2.3 PBF70001Y Grip Φ26*Φ19*80 2
4 5.2.4 TPF-533000 Bumper Φ45*8 1
5 5.2.5 M01402000 Bushing Φ25*Φ18*Φ12.2*13 2
6 5.2.6 PBF60101
Square Rubber Sleeve
□
50*46
1
ItemNo. Grade No. Part No. Description QTY
1 6.1 SL70410500 Sliding Rac k 1
2 6.2 KPSOB2100V1 Tube Guide
□
63.5*
□
50.8 2
3 6.3 VLP8000
Pipe Plug
□
50*100
1
4 6.4 M02502000 Bushing Φ38*Φ32*Φ25.4*18 2
5 6.5 IT95251600 Pin ASSY 1
