Impulse SL7041 - Page 10

10

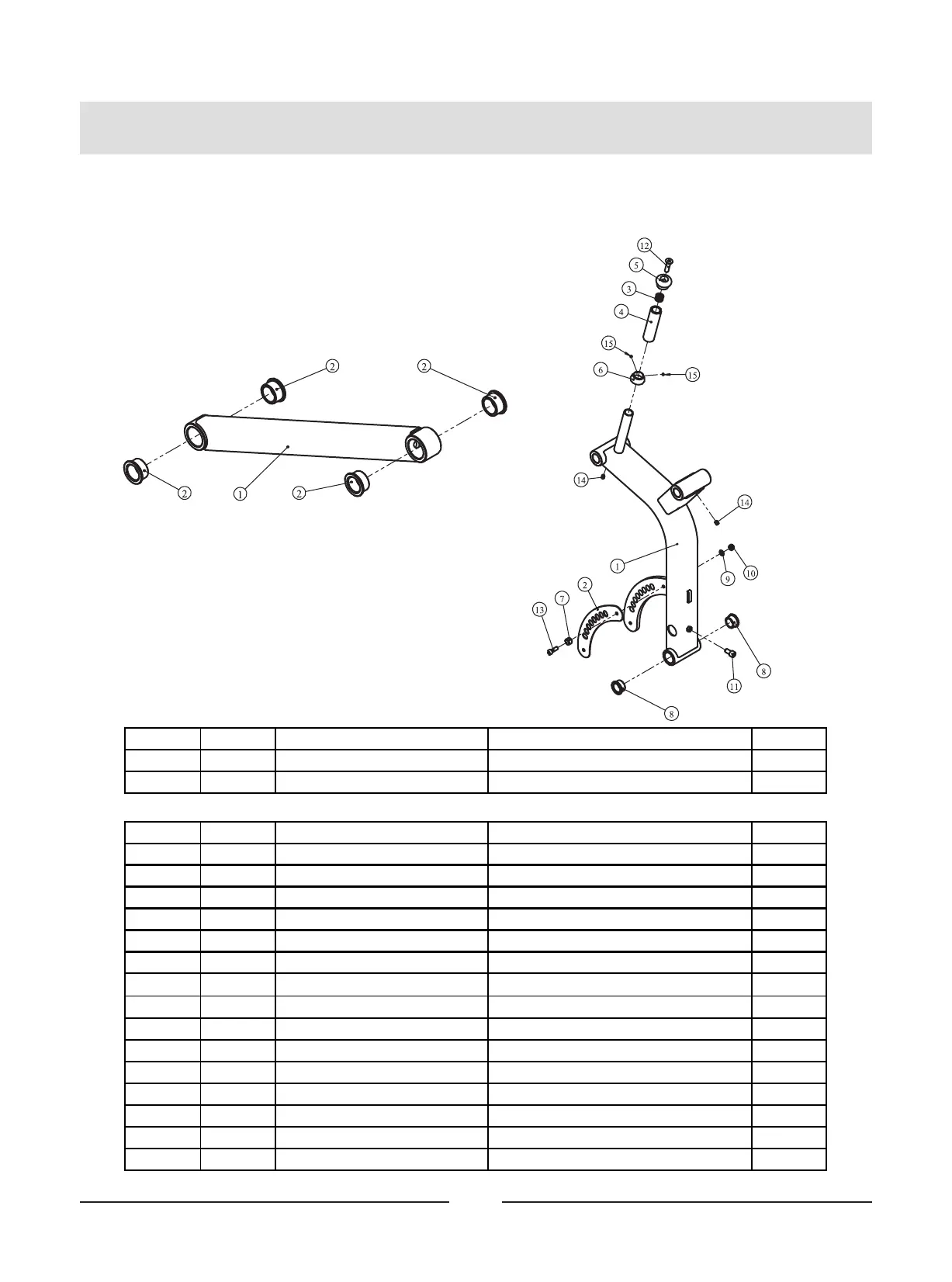

Exploded View and Parts List
Support Frame ASSY
Swing Frame ASSY
ItemNo. Grade No. Part No. Description QTY
1 9.1 SL70410900 Swing Frame 1
2 9.2 SL70411700 Lining Board 1
3 9.3 IF81165000 Sun Nut 1
4 9.4 CWRVL0151800 Φ25 Grip 1
5 9.5 IT90102100 Aluminium Grip Cap 1
6 9.6 IT90102200 Aluminium Grip Ring 1
7 9.7 IN-S10111200 Rubber Sleeve Φ17*10.5 1
8 9.8 M02502000 Bus hing Φ38*Φ32*Φ25.4*18 2
9 9.9 GB958DHS2 Flat Washer Φ9*Φ16*1.6 1
10 9.10 NM8DHS2 Nylon Lock Nut M8 1
11 9.11 GB70M10*20DHS20NL Socket Head Cap ScrewM10*20 1
12 9.12 CNLM10*40*40DS20NL Flat Head Cap ScrewM10*40 1
13 9.13 GB70M8*25DHS20 Socket Head Cap ScrewM8*25 1
14 9.14 GB77M8*10DS18 Screw M8*10 2
15 9.15 YZGB7710-32*3.2N19 Screw 10-32*3.2 2
ItemNo. Grade No. Part No. Description QTY
1 8.1 SL70410700 Support Frame 1
2 8.2 M02502000 Bushing Φ38*Φ32*Φ25.4*18 4
